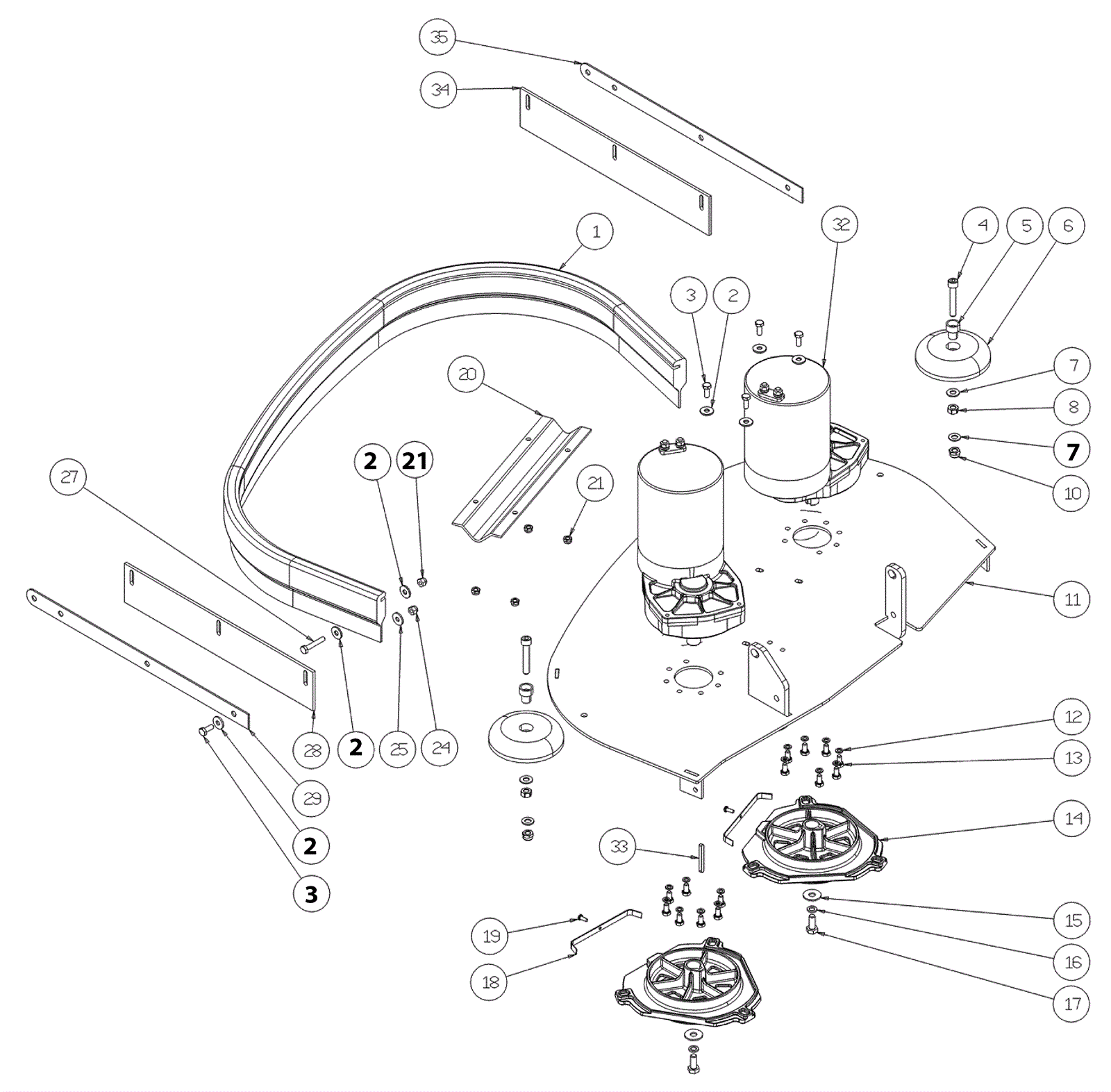

CT 70 Head Assembly

#PartDescriptionPriceReqNotesAvailability
1a 203-5141 Bumper $104.45 1 (before 03/2012) usually ships 10-12 days
1b 203-5141 Bumper $104.45 1 (after 03/2012) usually ships 10-12 days
2 189-1391 Washer D6 $0.99 22 usually ships 10-12 days
3 189-1497 Screw 6 x 16 inch $4.20 12 usually ships 10-12 days
4 189-1399 Screw M8 zinc $5.19 2 usually ships 1-5 days
5 189-0901 Bushing $32.81 2 usually ships 1-5 days
6 189-0060 Wheel $8.40 2 usually ships 10-12 days
7 189-0897 Washer D8 $2.99 4 usually ships 10-12 days
8 189-1492 Nut M8 $0.99 2 usually ships 10-12 days
10 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
11a 203-9058 Plate Call for price 1 (before 03/2012) usually ships 10-12 days
11b 203-9059 Head $525.22 1 (after 03/2012) usually ships 10-12 days
12 203-0971 Washer D6 $2.99 14 usually ships 10-12 days
13 189-1357 Screw 6 x 12 inch $4.20 14 usually ships 10-12 days
14 203-4999 Drive disk $67.65 2 usually ships 10-12 days
15 189-1400 Washer $2.99 2 usually ships 10-12 days
16 203-4414 Washer $2.99 2 usually ships 10-12 days
17 189-1512 Screw 8 x 20 inch $4.20 2 usually ships 10-12 days
18 203-5128 Spring $20.67 2 usually ships 10-12 days
19 189-1376 Screw 4 x 10 inch $4.20 2 usually ships 10-12 days
20 203-5139 Distributor $90.76 1 usually ships 10-12 days
21 189-1536 Nut with nylon ring $5.50 9 usually ships 5-9 days
24 203-4306 Nut M6 $3.61 8 usually ships 1-5 days
25 189-1498 Washer $4.00 8 usually ships 1-5 days
27 189-1397 Screw $4.20 5 usually ships 1-5 days
28a 203-4641 Flap $36.81 2 (before 03/2012) usually ships 10-12 days
28b 203-4641 Flap $36.81 1 (after 03/2012) usually ships 10-12 days
29a 203-5132 Left hand retainer $9.59 2 (before 03/2012) usually ships 10-12 days
29b 203-5132 Left hand retainer $9.59 1 (after 03/2012) usually ships 10-12 days
32a 203-5123 Carbon brush $1,418.18 2 usually ships 10-12 days
32b 203-3376 Carbon brush (sold individually) $11.57 4 usually ships 1-5 days
33 203-0644 Square keyway $4.25 2 usually ships 10-12 days
34 203-4640 Flap $21.41 1 usually ships 10-12 days
35 203-5135 Right hand retainer $18.21 1 (after 03/2012) usually ships 10-12 days
