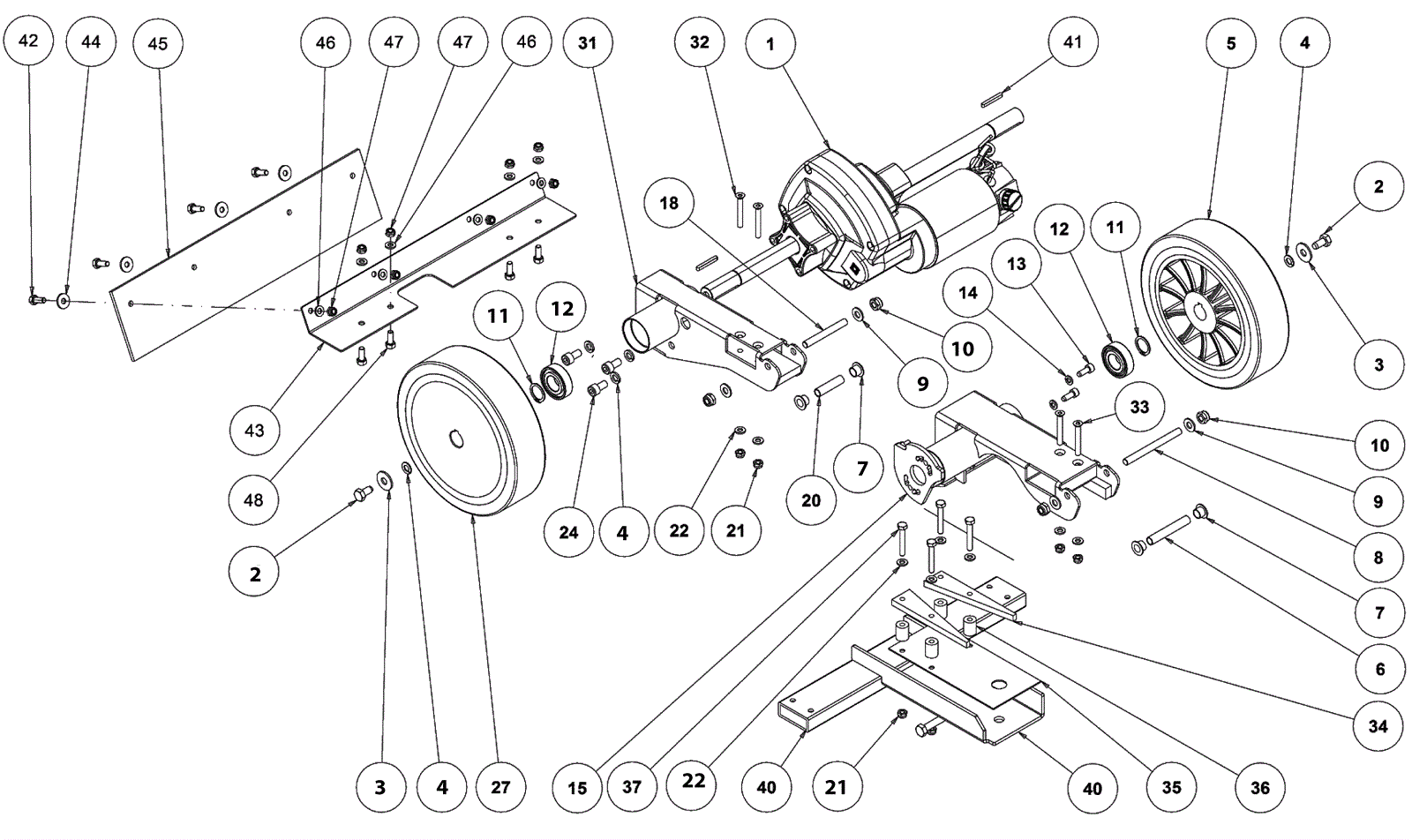

Traction Motor Assembly

#PartDescription ReqNotesAvailability
1a 203-7210 Traction drive motor 2
1b 203-5151 Carbon brush 1
2 189-1499 Screw 2
3 203-1497 Washer 2
4 375-9732 Washer D8 5
5a 203-5145 Wheel 1 (before 05/2010)
5b 203-5145 Wheel 1 (between 05/2010 and 09/2012)
5c 203-5145 Wheel 1 (after 09/2012)
6 203-9048 Spacer 1
7 189-1122 Bearing 4
8 203-9049 Pin 1
9 189-0897 Washer D8 4
10 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
11 189-7523 Outer snap ring 2
12a 203-5148 Bearing 2 (between 10/2011 and 04/2013)
12b 203-5149 Bearing 2 (after 04/2013)
12c 250-1152 Bearing 2 (before 10/2011)
13 203-1323 Screw 2
14 203-0971 Washer D6 2
15 203-9050 Support 1
18 203-9051 Pin 1
20 203-9052 Spacer 1
21 189-1536 Nut with nylon ring 8
22 203-1286 Washer D6 8
24 203-1366 Screw 3
27a 203-5145 Wheel 1 (before 09/2012)
27b 203-5145 Wheel 1 (after 09/2012)
31 203-9053 Support 1
32 203-5302 Screw M6 2
33 203-4402 Screw 2
34 203-9054 Guide 2
35 203-9055 Plate 1
36 203-9056 Spacer 4
37 203-5163 Screw 4
40 203-9057 Support 1
41a 203-5047 Keyway 2 (after 09/2012)
41b 189-0907 Square keyway 2 (before 09/2012)
42 189-1497 Screw 6 x 16 inch 4 (after 09/2012)
43 203-5155 Bracket 1 (after 09/2012)
44 189-1391 Washer D6 4 (after 09/2012)
45 203-5156 Flap 1 (after 09/2012)
46 203-1286 Washer D6 8 (after 09/2012)
47 189-1536 Nut with nylon ring 8 (after 09/2012)
48 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated 4 (after 09/2012)
