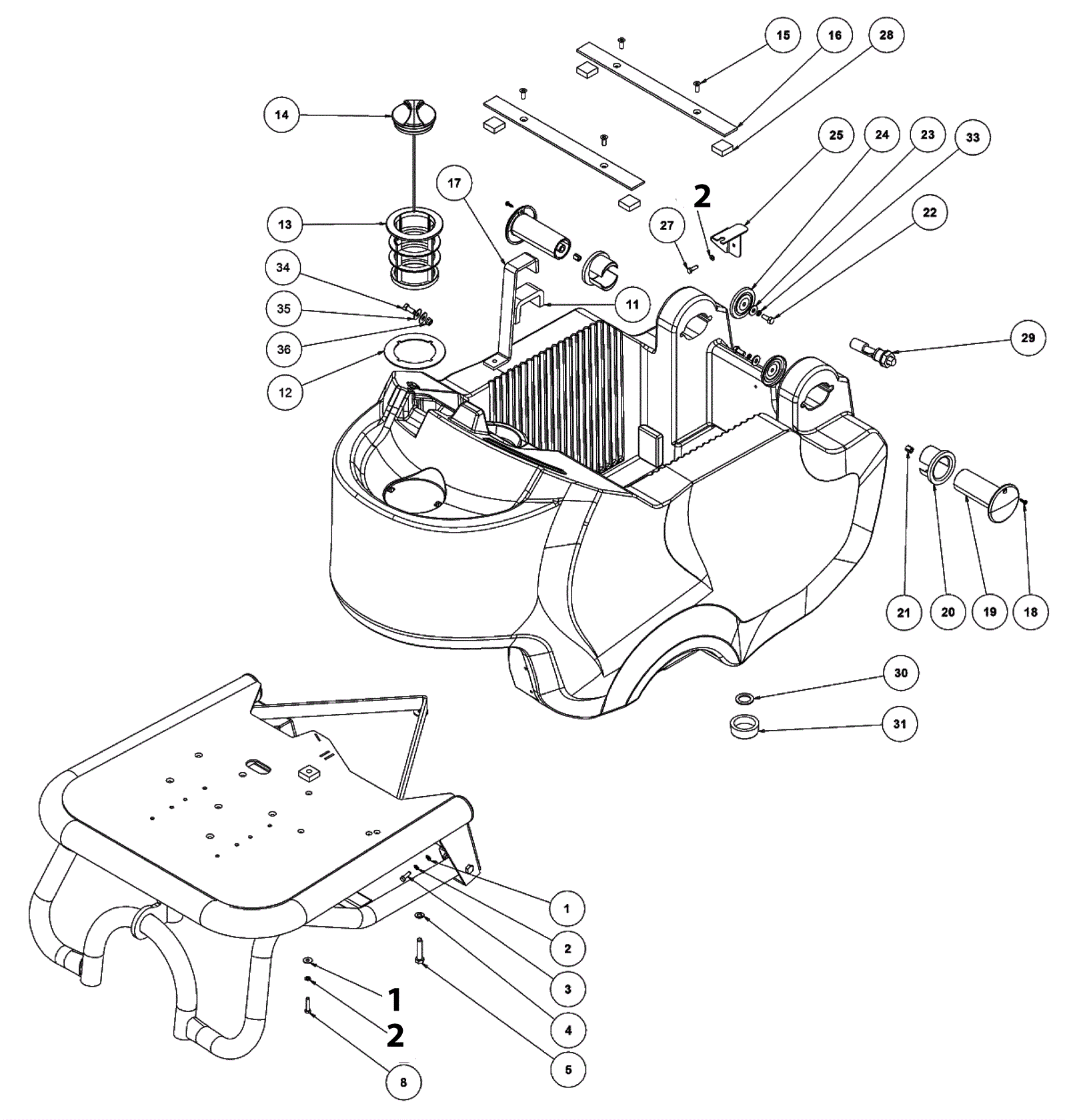

Water Tank Assembly

#PartDescription ReqNotesAvailability
1 189-1462 Washer 5 x 14 inch 6
2 203-4956 Spring lock washer 7
3a 203-4317 Screw 4 (after 12/2010)
3b 375-9483 Screw M5 x 16 inox 4 (before 11/2010)
4 375-9732 Washer D8 2
5 189-1404 Screw M8 2
8 203-2650 Screw (OBSOLETE) 2
11 203-9042 Bracket 1
12 203-4753 Gasket 1
13 203-9043 Filter 1
14 203-4950 Cap 1
15 189-2416 Screw 4
16 203-9044 Plate 2
17 203-9045 Bracket 1
18 375-9544 Screw 5 x 12 2
19 189-1109 Pin 2
20 203-4763 Rubber insert 2
21 189-1108 Insert 2
22 189-1497 Screw 6 x 16 inch 2
23 189-1391 Washer D6 2
24 203-4755 Sheet metal 2
25 203-9046 Bracket 1
27 203-4317 Screw 1
28 203-9047 Thickness 4
29 203-4729 Sensor 1
30 203-3352 Soution tank drain cap 1
31 203-3352 Soution tank drain cap 1
32 203-1252 Cap 1
33 203-0971 Washer D6 2
34a 203-1252 Cap 1 (before 04/2012)
34b 203-4317 Screw 1 (after 04/2012)
35 189-1462 Washer 5 x 14 inch 2 (after 04/2012)
36 203-0789 Nut 1 (after 04/2012)
