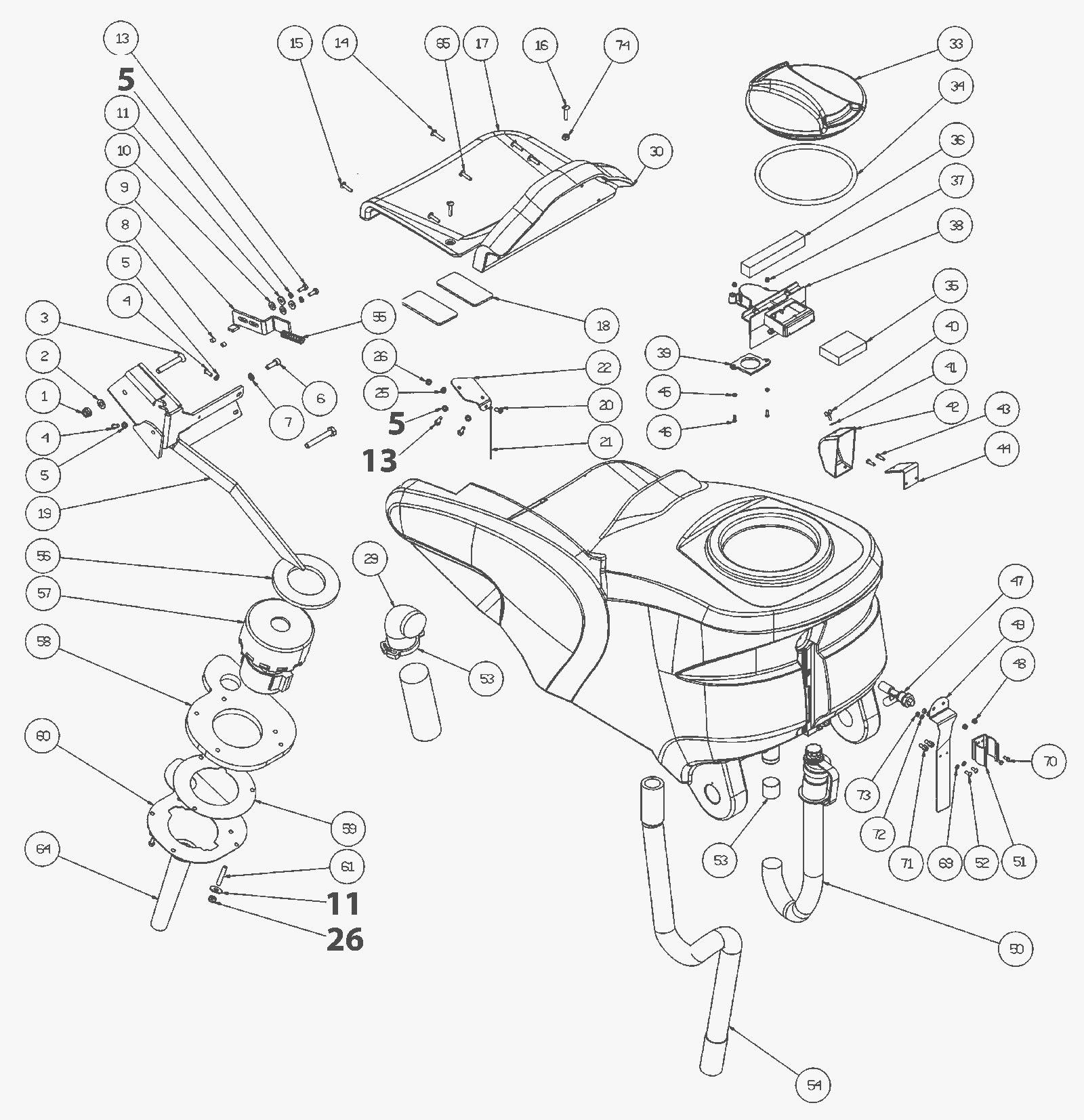

Tank Assembly

#PartDescription ReqNotesAvailability
1 203-5401 Nut 1
2 203-1325 Washer 10 x 21 inch washer 1
3 203-9024 Screw 1
4 189-1627 Screw 6-16 inch 2
5 203-0971 Washer D6 6
6 203-5822 Screw 8x25 1
7 375-9732 Washer D8 1
8 203-9025 Spacer 2
9 203-9026 Hook 1
10 375-9658 Washer nylon 2
11 189-1391 Washer D6 5
13 189-1497 Screw 6 x 16 inch 4
14 203-9027 Screw 3
15 203-9028 Screw 1
16a 203-9028 Screw 1 (after 12/2010)
16b 203-9027 Screw 1 (before 11/2010)
17 203-9029 Seat 1
18 203-7172 Dashboard 1
19 203-9030 Plate 1
20 189-2416 Screw 1
21 203-9031 Cable 1
22 203-9032 Bracket 1
25 203-1286 Washer D6 1
26 189-1536 Nut with nylon ring 4
29 203-9033 Sleeve 1
30 203-9034 Sheet metal 1
33 203-4584 Cap 1
34 189-0293 Gasket 1
35 203-4693 Filter 1
36 203-4699 Gasket 1
37 189-1472 Nut M4 2
38 203-4697 Box 1
39 203-4696 Gasket 1
40 203-4705 Screw 1
41 203-5895 Washer 1
42 203-4704 Cover 1
43 375-9483 Screw M5 x 16 inox 2
44 203-9035 Bracket 1
45 203-0145 Washer 4-16 inch 2
46 203-2872 Screw 2
47 203-4729 Sensor 1
48 203-0789 Nut 2
49 203-9036 Protection 2
50a 203-4683 Drain hose 1 (before 02/2011)
50b 203-4683 Drain hose 1 (between 02/2011 and 04/2013)
50c 203-4683 Drain hose 1 (after 04/2013)
51 203-4318 Clasp 1
52 203-4720 Screw 4 x 10 2
53a 203-4399 Clamp 1 (after 04/2012)
53b 203-9037 Clamp 1 (before 04/2012)
54a 203-4339 Vacuum hose assembly 1 (before 02/2012)
54b 203-4339 Vacuum hose assembly 1 (after 02/2012)
55 203-0126 Spring 1
56 203-4495 Gasket 1
57 203-5411 24V vacuum motor 1
58 203-4664 Sound-proofing aspirator 1
59 203-4665 Flange 1
60 203-4663 Flange 1
61 203-1292 Grub screw 3
64 203-9038 Tube 1
65 203-9039 Screw 4
67 203-9040 Connector 1
68 375-9544 Screw 5 x 12 1
69 203-4740 Washer D4 2
70 189-1431 Screw 2
71 203-9041 Spacer 2
72 203-0235 Washer 2
74 189-1536 Nut with nylon ring 1 (after 12/2010)
