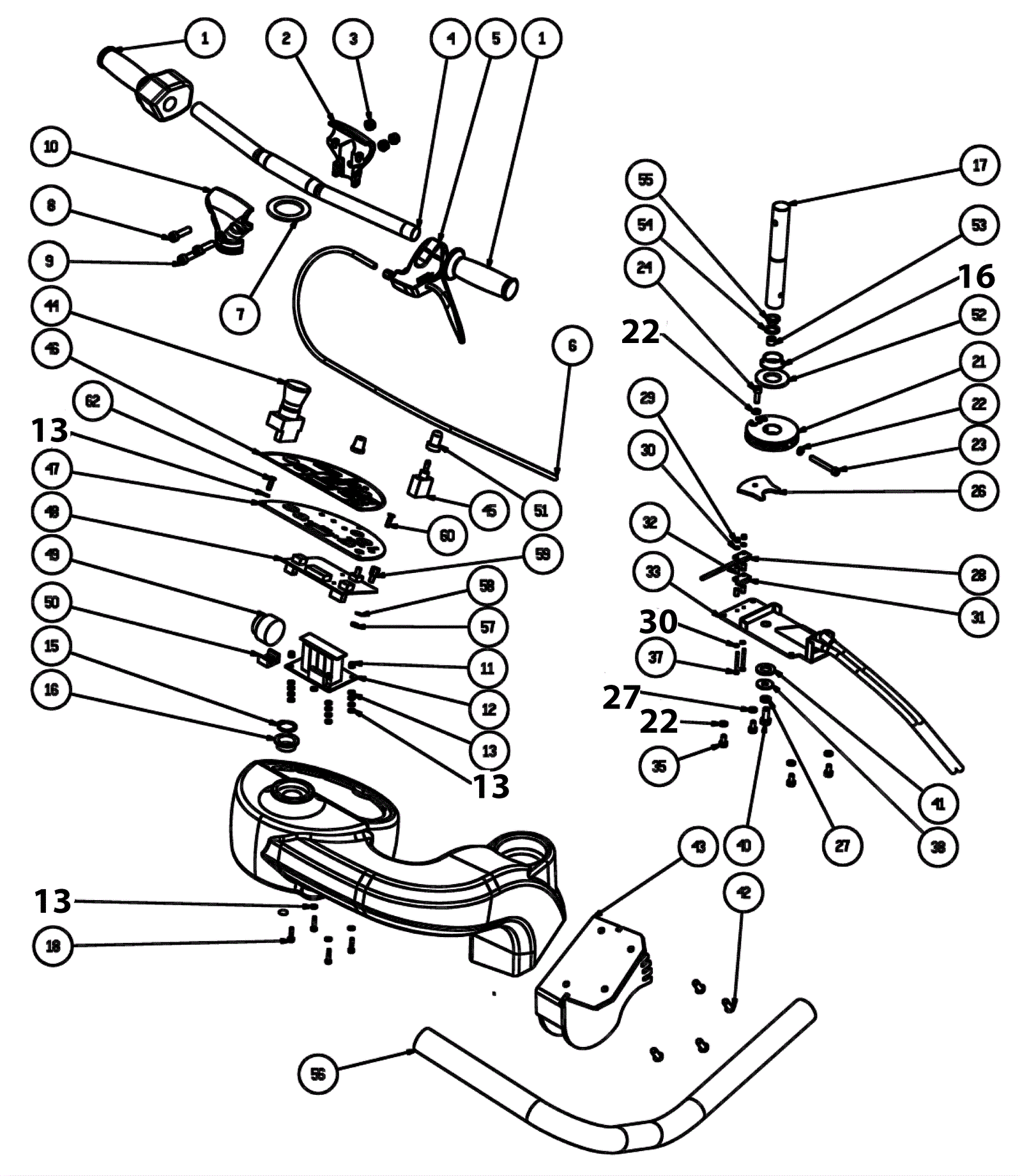

Board Assembly

#PartDescription ReqNotesAvailability
1 203-9000 Accelerator 1
2 203-9001 Support 1
3 999-0471 Nut M8-1.25 nylon insert lock zinc plated 3
4 203-9002 Handle bar 1
5 203-9003 Lever 1
6 203-9004 Cable 1
7 203-9005 Flange 1
8 203-4648 Screw M8 x 30 2
9 375-8016 Screw M8 x 40 1
10 203-9006 Support 1
11 189-1472 Nut M4 4
12 203-7175 Board 1
13 203-0235 Washer 23
15 203-9007 Seeger 1
16 203-9008 Bushing 2
17 203-9009 Axle 1
18 189-1406 Screw 4
21 203-9010 Pulley 1
22 203-0971 Washer D6 6
23 203-3274 Screw 6 x 50 1
24 203-4447 Screw 1
26 203-9011 Plate 1
27 375-9732 Washer D8 2
28 203-9012 Sensor 1
29 203-4787 Nut M3 2
30 189-1441 Washer 4
31 203-9013 Block 1
32 203-9014 Spacer 4
33 203-9015 Box 1
35 189-1497 Screw 6 x 16 inch 4
37 203-3602 Screw 2
38 375-9615 Washer D. 8 x 24 inox 1
40 189-1512 Screw 8 x 20 inch 1
41 189-1366 Washer D14 1
42 203-0979 Screw 4
43 203-9016 Plate 1
45 203-5227 Switch 1
46a 203-9017 Rider decal 1 (before 05/2012)
46b 203-5046 Control panel decal 1 (after 05/2012)
47a 203-9018 Control panel support 1 (before 05/2012)
47b 203-4715 Support 1 (after 05/2012)
48 203-9019 Board 1
49 203-1320 Board 36V 1
50 203-5518 Clamp 1
51 203-5228 Switch guard 1
52 189-1377 Washer 1
53 203-9020 Spacer 1
54 203-9021 Washer 1
55 203-9022 Bearing 1
56 203-9023 Sheath 1
57 189-1446 Nut M3 3 (before 05/2012)
58 189-2241 Washer D3 3 (before 05/2012)
59 203-5205 Insert 3 (before 05/2012)
60a 203-4739 Screw 3 (after 05/2012)
60b 189-2251 Screw 3 x 6 inch 3 (before 05/2012)
62 203-4720 Screw 4 x 10 3
