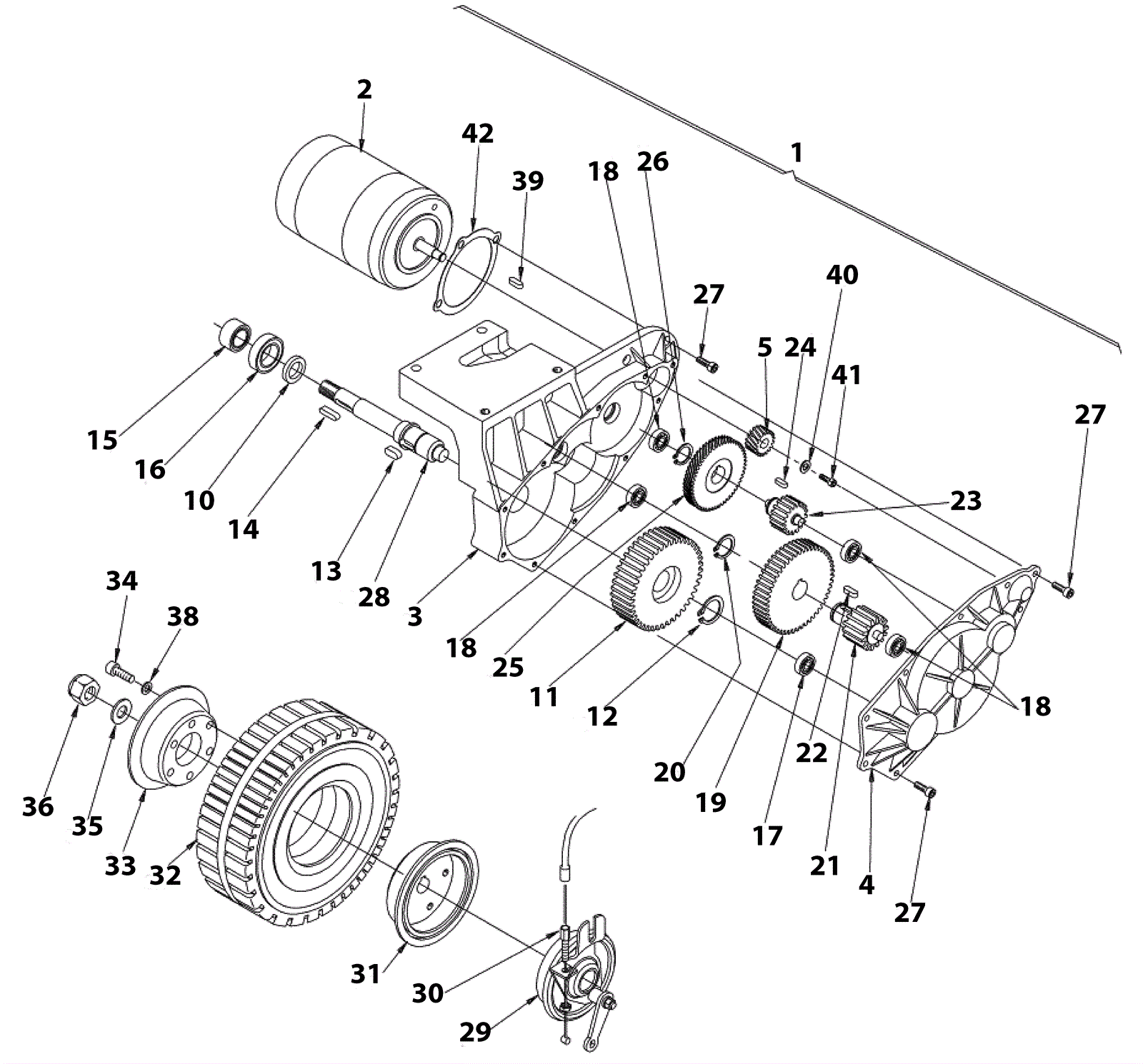

GENIUS 1050E Traction Motor Assembly-Old

#PartDescriptionPriceReqNotesAvailability
1 203-4359 Drive motor assembly $3,565.71 1 (includes 2-5, 10-36, and 38-42) usually ships 1-5 days
2 203-4282 Motor 24V $1,137.88 1 usually ships 1-5 days
3 203-7052 Motor support $1,406.08 1 usually ships 11-14 days
4 203-7053 Motor support $502.57 1 usually ships 11-14 days
5 203-7054 Motor pin $241.64 1 usually ships 11-14 days
10 203-4158 Packing $11.81 1 usually ships 1-5 days
11 203-7055 Brake module $330.28 1 usually ships 11-14 days
12 189-0093 Snap Ring $4.80 1 usually ships 11-14 days
13 203-4159 Key $5.19 1 usually ships 1-5 days
14 203-4160 Key $30.95 1 usually ships 11-14 days
15 203-4161 Bearing $141.28 1 usually ships 1-5 days
16 203-4162 Bearing $32.45 1 usually ships 1-5 days
17 203-7056 Bearing $40.28 1 usually ships 11-14 days
18 203-7057 Bearing $48.57 3 usually ships 11-14 days
19 203-7064 Brake model $247.12 1 usually ships 11-14 days
20 203-7065 Seeger $5.19 1 usually ships 11-14 days
21 203-7058 Pin $225.79 1 usually ships 11-14 days
22 203-7059 Key $0.99 1 usually ships 11-14 days
23 203-7060 Pin $193.34 1 usually ships 11-14 days
24 203-0178 Tongue $5.19 1 usually ships 1-5 days
25 203-7061 Brake $327.07 1 usually ships 11-14 days
26 189-7523 Outer snap ring $4.80 1 usually ships 1-5 days
27 203-7062 Screw $2.20 10 usually ships 11-14 days
28 203-4163 Pin $229.61 1 usually ships 1-5 days
29 203-4151 Brake $150.77 1 usually ships 1-5 days
30 203-1986 Turned adjuster $33.66 1 usually ships 11-14 days
31 203-4153 Hub $511.67 1 usually ships 11-14 days
32 203-4150 Front wheel $318.27 1 usually ships 11-14 days
33 203-4154 Hub $163.25 1 usually ships 11-14 days
34 203-4155 Screw $4.25 5 usually ships 11-14 days
35 203-4164 Washer $2.55 1 usually ships 1-5 days
36 203-7063 Nut M16 $2.64 1 usually ships 11-14 days
38 189-1403 Washer D8 $3.10 5 usually ships 11-14 days
39 203-4361 Square keyway $0.99 1 usually ships 1-5 days
40 203-4235 Washer 6 x 18 x 2.38 $3.10 1 usually ships 1-5 days
41 189-1442 Screw M6 zinc $5.06 1 usually ships 1-5 days
42 203-4360 Gasket $6.18 1 usually ships 1-5 days
