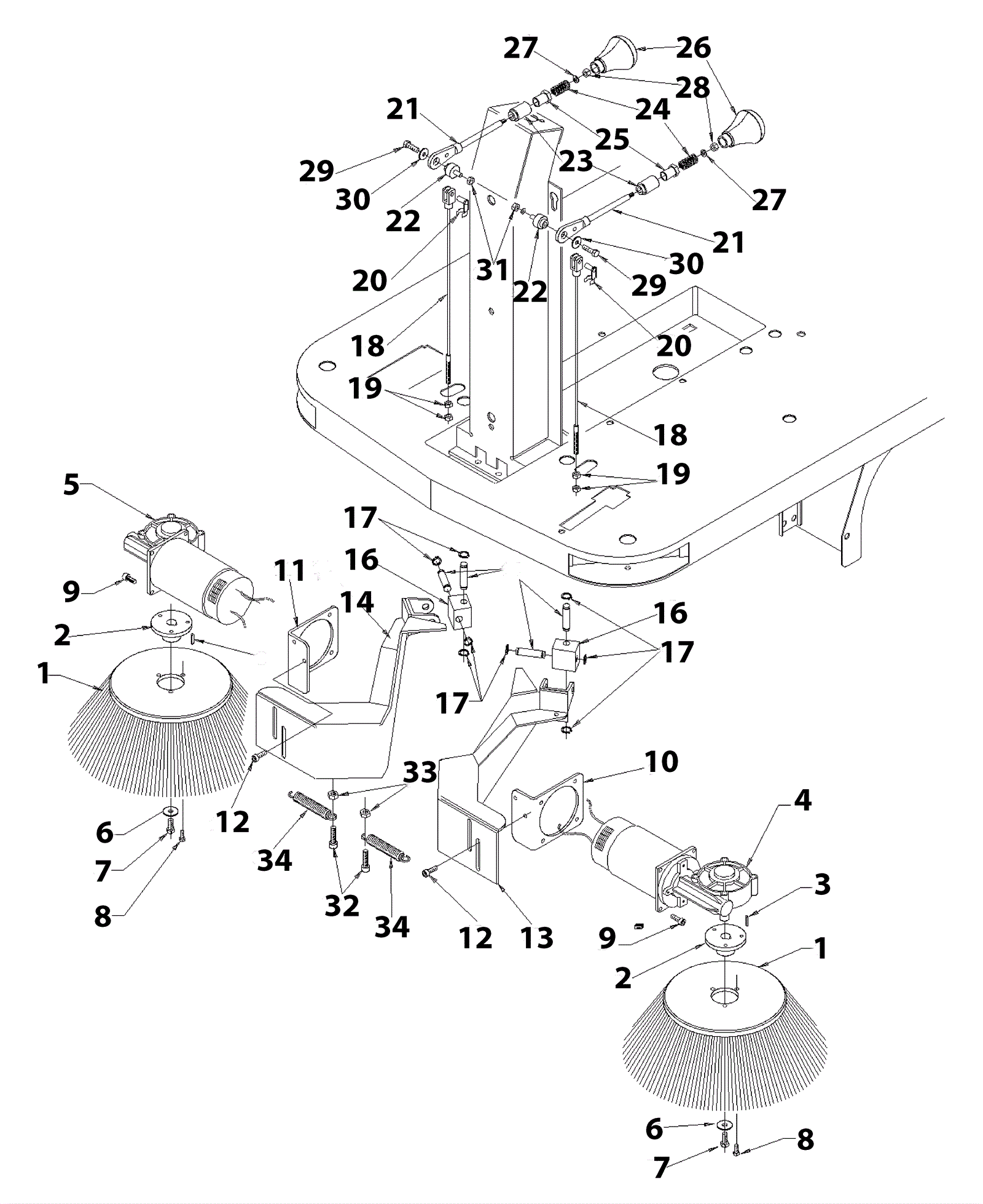

GENIUS 1050E Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-4121 Polypropelene side brush (standard) $115.13 2 usually ships 10-12 days
2 203-2080 Lateral brush holder flange $49.83 2 usually ships 1-5 days
3 203-2062 Key 5x5x20 $17.05 2 usually ships 10-12 days
4a 203-7036 24V SX motor gearbox $613.99 1 usually ships 10-12 days
4b 203-7037 Carbon brush $32.67 2 usually ships 10-12 days
5a 203-7038 24V DX motor gearbox $1,053.14 1 usually ships 10-12 days
5b 203-7037 Carbon brush $32.67 2 usually ships 10-12 days
6 203-1171 Washer 6 x 24 $2.90 2 ships same day
7 203-1164 Screw 6x10 $3.43 2 usually ships 12-18 days
8 203-3281 Screw M6 x 16 $3.96 6 ships same day
9 203-1954 Screw 6x16 $3.96 8 usually ships 1-5 days
10 203-7039 Plate space holder SX $46.86 1 usually ships 10-12 days
11 203-7040 Plate space holder DX $46.86 1 usually ships 10-12 days
12 203-1164 Screw 6x10 $3.43 4 usually ships 12-18 days
13 203-7041 Side support SX Call for price 1 usually ships 10-12 days
14 203-7042 Side support DX $370.90 1 usually ships 10-12 days
16 203-7044 Brush arm block $114.73 2 usually ships 10-12 days
17 375-7814 Seeger D10 $4.49 8 usually ships 10-16 days
18 203-7045 Brush lift side cable $39.14 2 usually ships 10-12 days
19 203-4326 Nut $3.43 4 usually ships 10-12 days
20 203-3268 Arm clip $32.78 2 usually ships 10-12 days
21 203-7046 Brush lift side arm $42.90 2 usually ships 10-12 days
22 203-7047 Bushing $5.72 2 usually ships 10-12 days
23 203-7048 Bushing $13.31 2 usually ships 10-12 days
24 203-7049 Spring $8.14 2 usually ships 10-12 days
25 203-7050 Brush lift spring door $27.72 2 usually ships 10-12 days
26 203-7051 Small brush knob $31.46 2 usually ships 10-12 days
27 203-4868 Washer 5 x 10 $2.90 2 usually ships 10-12 days
28 203-3275 Nut M5 $3.43 2 usually ships 10-12 days
29 203-2189 Screw 6x25 $3.96 2 usually ships 1-5 days
30 189-1665 Washer $0.99 2 usually ships 1-5 days
31 203-2152 Nut M6 locking $1.94 2 usually ships 1-5 days
32 203-1973 Screw 8x30 $0.74 2 usually ships 1-5 days
33 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
34 203-2094 Spring $20.90 2 usually ships 1-5 days
N/S 203-7043 Brush pin $4.49 4 usually ships 10-12 days
