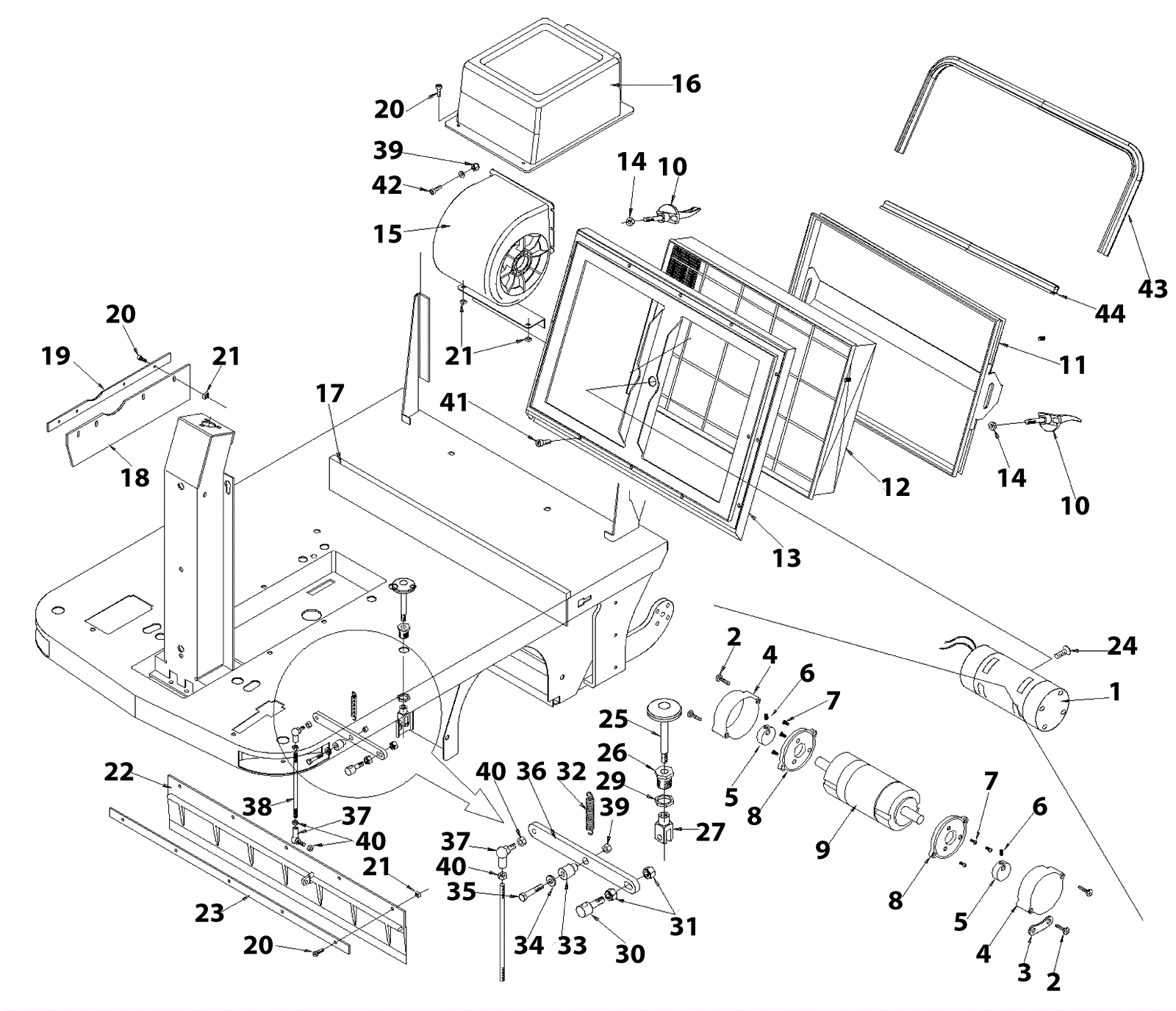

GENIUS 1050E Filter Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-2012 Filter shaker motor $309.32 1 (includes 2-9) usually ships 1-5 days
2 203-5112 Screw $4.25 4 usually ships 11-14 days
3 203-5080 Cord clip rubber $3.26 2 usually ships 11-14 days
4 203-5076 Motor cover $30.02 2 usually ships 11-14 days
5 203-5077 Bushing $31.08 2 usually ships 11-14 days
6 203-4210 Screw $4.25 2 usually ships 1-5 days
7 203-5113 Screw $4.25 6 usually ships 11-14 days
8 203-5078 Flange $31.55 2 usually ships 11-14 days
9 203-2018 Motor 24V $228.22 1 usually ships 1-5 days
10 203-4243 Handle $48.26 2 usually ships 11-14 days
11 203-4285 Frame $221.42 1 usually ships 1-5 days
12 203-4135 Filter $99.46 1 usually ships 11-14 days
13 203-4286 Frame $853.20 1 usually ships 1-5 days
14 203-4211 Nut M8 x 1 $3.67 2 usually ships 11-14 days
15 203-2011 Suction fan motor $412.78 1 usually ships 1-5 days
16 203-7015 Suction fan cover $80.74 1 usually ships 11-14 days
17 203-7016 Fixed rear flap $93.69 1 usually ships 11-14 days
18 203-4256 Side flap (gray) $33.43 1 usually ships 11-14 days
19 203-7017 Flap clamp $20.83 1 usually ships 11-14 days
20 203-3196 Screw 4 x 16 $4.25 13 usually ships 11-14 days
21 203-1979 Plastic insert female screw $17.30 13 usually ships 1-5 days
22 203-4252 Front flap (gray) $172.07 1 usually ships 1-5 days
23 203-7018 Flap clamp $34.61 1 usually ships 11-14 days
24 203-1989 Screw 10x16 $4.25 1 usually ships 1-5 days
25 203-7019 Pedal $61.33 1 usually ships 11-14 days
26 203-7020 Threaded pin $16.95 1 usually ships 11-14 days
27 203-5060 Fork pin $24.60 1 usually ships 11-14 days
29 203-7021 Nut M18 x 1.5 $3.67 1 usually ships 11-14 days
30 203-2244 Screw 8x40 $1.63 1 usually ships 1-5 days
31 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
32 203-7022 Spring pedal $4.09 1 usually ships 11-14 days
33 203-7023 Pin $3.39 1 usually ships 11-14 days
34 189-1665 Washer $0.99 1 usually ships 1-5 days
35 203-2149 Screw 6x35 $5.19 1 usually ships 1-5 days
36 203-7034 Rod $20.96 1 usually ships 11-14 days
37 175-4163 Ball joint $76.23 2 usually ships 10-13 days
38 203-4251 Pin $18.48 1 usually ships 1-5 days
39 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 5 ships same day
40 203-4326 Nut $3.67 4 usually ships 11-14 days
41 203-1954 Screw 6x16 $4.25 12 usually ships 1-5 days
42 203-2070 Screw 6x12 $4.25 6 usually ships 1-5 days
43 203-7035 Gasket $56.27 1 usually ships 11-14 days
44 203-7035 Gasket $56.27 1 usually ships 11-14 days
