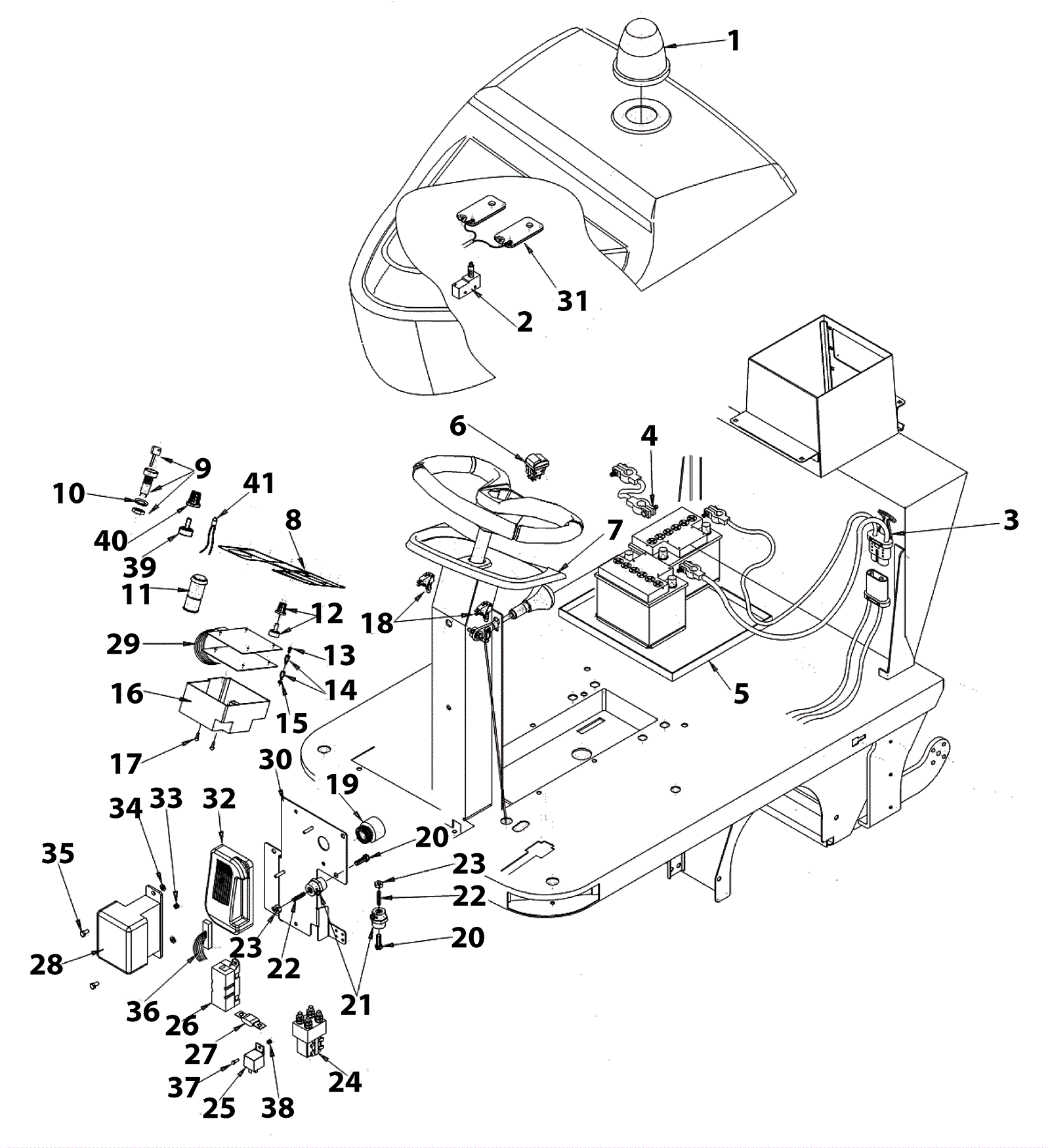

GENIUS 1050E Electrical Installation Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-4290 Strobe light $152.22 1 usually ships 1-5 days
2 203-2136 Micro-switch $217.43 1 usually ships 1-5 days
3 203-7000 Battery Cable $68.48 1 usually ships 5-15 days
4 203-2123 Battery bridge section $42.86 3 usually ships 1-5 days
5 203-4280 Battery support $202.69 1 usually ships 1-5 days
6 203-7001 Bipolar switch $24.30 1 usually ships 5-15 days
7 203-7002 Instrument Panel $114.73 1 usually ships 5-15 days
8 203-7003 Dashboard $101.72 1 usually ships 5-15 days
9 203-3125 Key switch $93.87 1 usually ships 1-5 days
10 203-7004 Toothed washer $2.35 1 usually ships 5-15 days
11 203-2130 Emergency pushbutton $206.35 1 usually ships 1-5 days
12 203-3371 Control board $767.48 1 usually ships 1-5 days
13 203-5520 Screw M3 x 8mm $2.49 4 usually ships 5-15 days
14 203-7005 Spacer Call for price 4 usually ships 5-15 days
15 203-5071 Nut $4.77 4 usually ships 5-15 days
16 203-7006 Micro card cover $172.15 1 usually ships 5-15 days
17 203-0960 Screw M4 $7.51 2 usually ships 1-5 days
18 203-2136 Micro-switch $217.43 2 (after 02-2004) usually ships 1-5 days
19 203-1320 Board 36V $89.95 1 usually ships 1-5 days
20 203-1164 Screw 6x10 $3.43 2 usually ships 11-24 days
21 203-2127 Insulator $52.69 2 usually ships 1-5 days
22 203-7007 Screw $4.64 2 usually ships 5-15 days
23 203-4326 Nut $4.64 2 usually ships 5-15 days
24 203-7008 24V 100amp contactor $184.21 1 usually ships 5-15 days
25 203-5231 24V relay $84.41 1 usually ships 5-15 days
26 203-7009 Fuse holder $94.00 1 usually ships 5-15 days
27 203-1277 Fuse 100amp $37.05 1 usually ships 1-5 days
28 203-7010 Board Call for price 1 usually ships 5-15 days
29 203-3371 Control board $767.48 1 usually ships 1-5 days
30 203-7011 Spacer Call for price 1 usually ships 5-15 days
31 203-7172 Dashboard $202.19 1 (before 02-2004) usually ships 5-15 days
32 203-4383 Curtis board $1,334.75 1 usually ships 1-5 days
33 203-3275 Nut M5 $0.99 2 usually ships 5-15 days
34 203-1328 Spacer $4.75 2 usually ships 1-5 days
35 203-1329 Screw $2.35 2 usually ships 1-5 days
36 203-7012 Wiring $210.38 1 usually ships 5-15 days
37 203-3197 Screw M4 x 16 $4.77 1 usually ships 1-5 days
38 189-1384 Nut M4 $0.99 1 usually ships 5-15 days
39 203-7013 100K potentiometer $88.37 1 usually ships 5-15 days
40 203-4382 Knob $27.70 1 usually ships 1-5 days
41 203-7014 LED diagnosic kit (OBSOLETE) $17.82 1 usually ships 5-15 days
