RHINO36

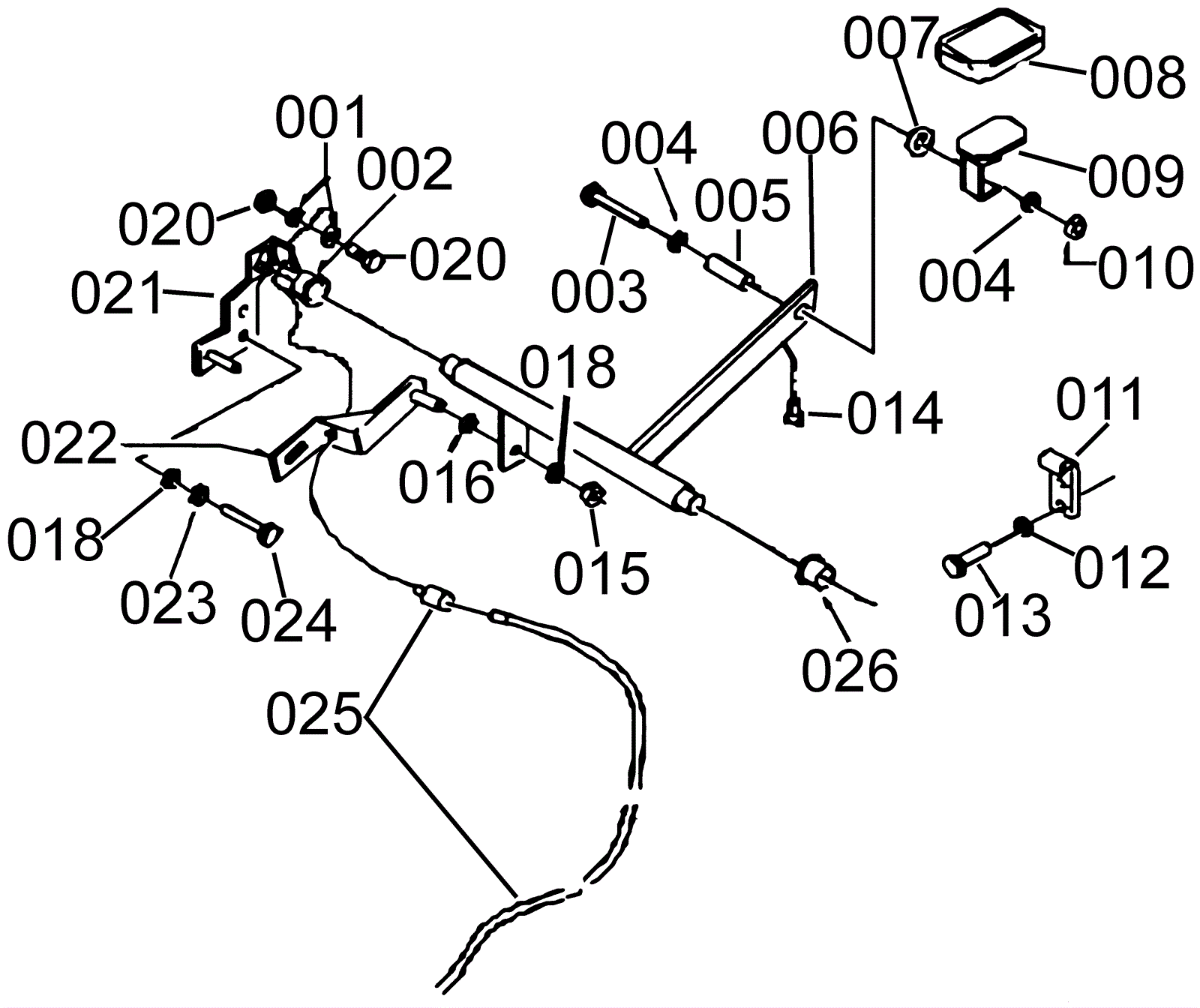

Squeegee Pedal Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
002
189-0465
Bearing
$18.51
1
usually ships 1-5 days
003
189-1392
Screw
$5.75
1
usually ships 1-5 days
004
189-1345
Washer d10 cham
$4.32
2
usually ships 1-5 days
005
189-0466
Spacer
$10.63
1
usually ships 1-5 days
006
189-0467
Lever
$194.55
1
usually ships 1-5 days
007
189-1460
Washer
$1.94
1
usually ships 1-5 days
008
189-0233
Rubber shim
$31.00
1
usually ships 1-5 days
009
189-0468
Threadle
$90.68
1
usually ships 1-5 days
010
203-0524
Nut M6 lock
$5.00
1
usually ships 1-5 days
011
203-2819
Block (OBSOLETE)
Call for price
1
usually ships 1-5 days
012
189-1386
Washer
$1.82
2
usually ships 1-5 days
013
203-0243
Screw (OBSOLETE)
$0.90
2
usually ships 1-5 days
014
203-2820
Rubber (OBSOLETE)
Call for price
1
usually ships 1-5 days
016
189-1393
Washer
$4.32
1
usually ships 1-5 days
018
189-1363
Washer
$4.32
3
usually ships 1-5 days
020
189-0418
Clamp
$17.58
1
usually ships 1-5 days
021
189-0464
Plate (OBSOLETE)
$63.13
1
usually ships 1-5 days
022
189-0471
Plate
$118.31
1
usually ships 1-5 days
023
189-1369
Washer cham
$4.34
2
usually ships 1-5 days
024
189-1439
Screw
$5.22
2
usually ships 1-5 days
025
189-0472
Cable
$73.12
1
usually ships 1-5 days
026
189-0273
Bearing
$16.94
1
usually ships 6-17 days
