RHINO36

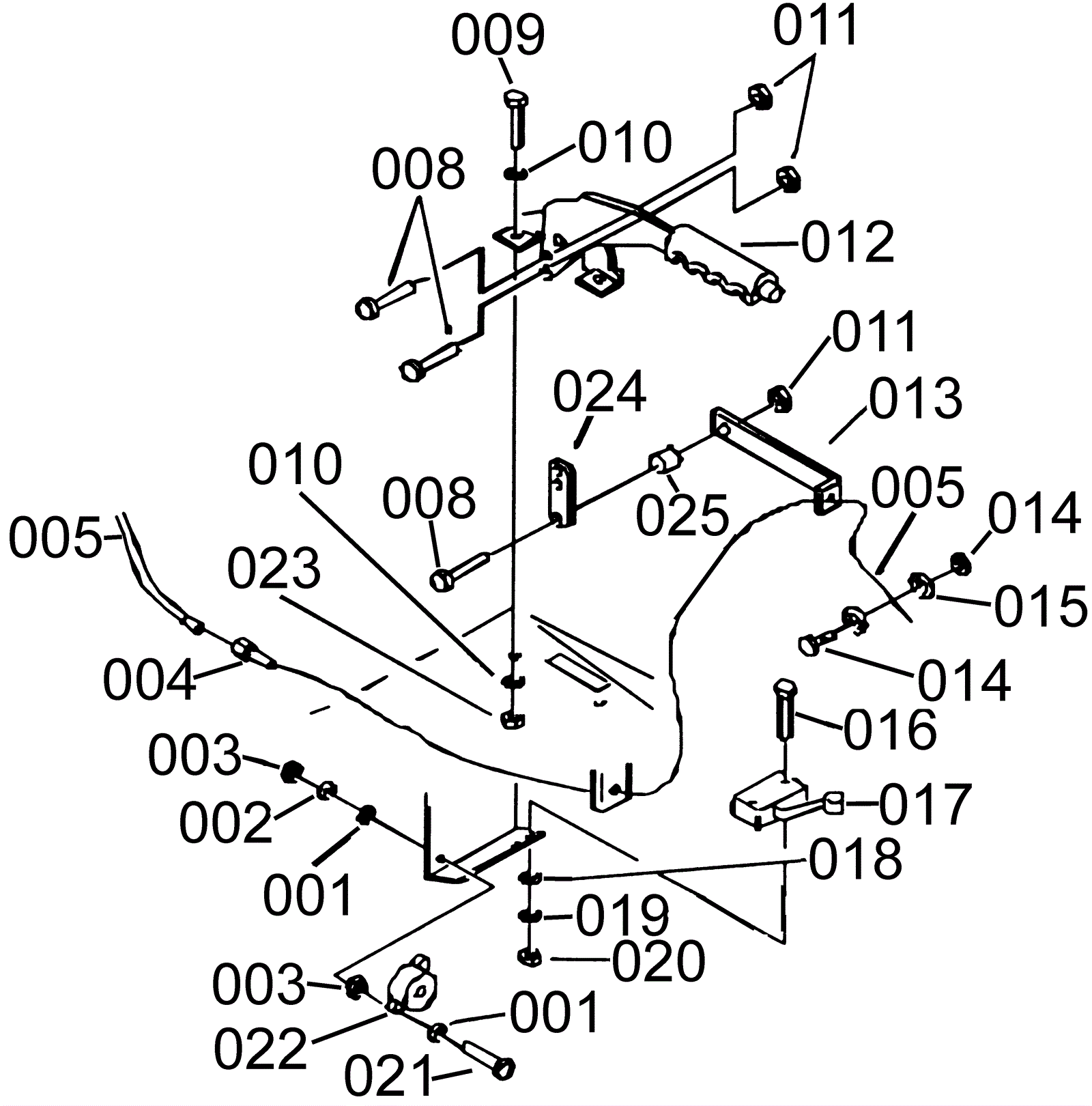

Hand Brake Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
001
189-1441
Washer
$4.32
4
usually ships 1-5 days
002
189-1426
Washer
$1.98
2
usually ships 1-5 days
003
189-1425
Nut
Call for price
4
usually ships 1-5 days
004
189-0415
Register
$12.02
1
usually ships 1-5 days
005
189-0416
Cable
$66.29
1
usually ships 1-5 days
008
189-1367
Screw
Call for price
3
usually ships 1-5 days
009
189-1390
Screw
$4.00
2
usually ships 1-5 days
010
189-1345
Washer d10 cham
$4.32
4
usually ships 1-5 days
012
203-2810
Lever
$128.94
1
usually ships 1-5 days
013
189-0417
Small bracket
Call for price
1
usually ships 1-5 days
014
189-0418
Clamp
$17.58
1
usually ships 1-5 days
016
189-1448
Screw
$2.14
2
usually ships 1-5 days
017
203-1754
Microswitch
$62.79
1
usually ships 6-17 days
018
189-1375
Washer D4
$4.32
2
usually ships 1-5 days
019
189-1433
Washer
$4.22
2
usually ships 1-5 days
020
203-2457
Nut (OBSOLETE)
$0.90
2
usually ships 1-5 days
021
189-1427
Screw
$4.34
2
usually ships 6-17 days
022
189-0420
Indicator
$153.38
1
usually ships 1-5 days
023
189-1361
Nut
$4.34
2
usually ships 1-5 days
024
203-2814
Block/lock (OBSOLETE)
Call for price
1
usually ships 1-5 days
025
189-0641
Spacer
$5.00
1
usually ships 1-5 days
