RHINO36

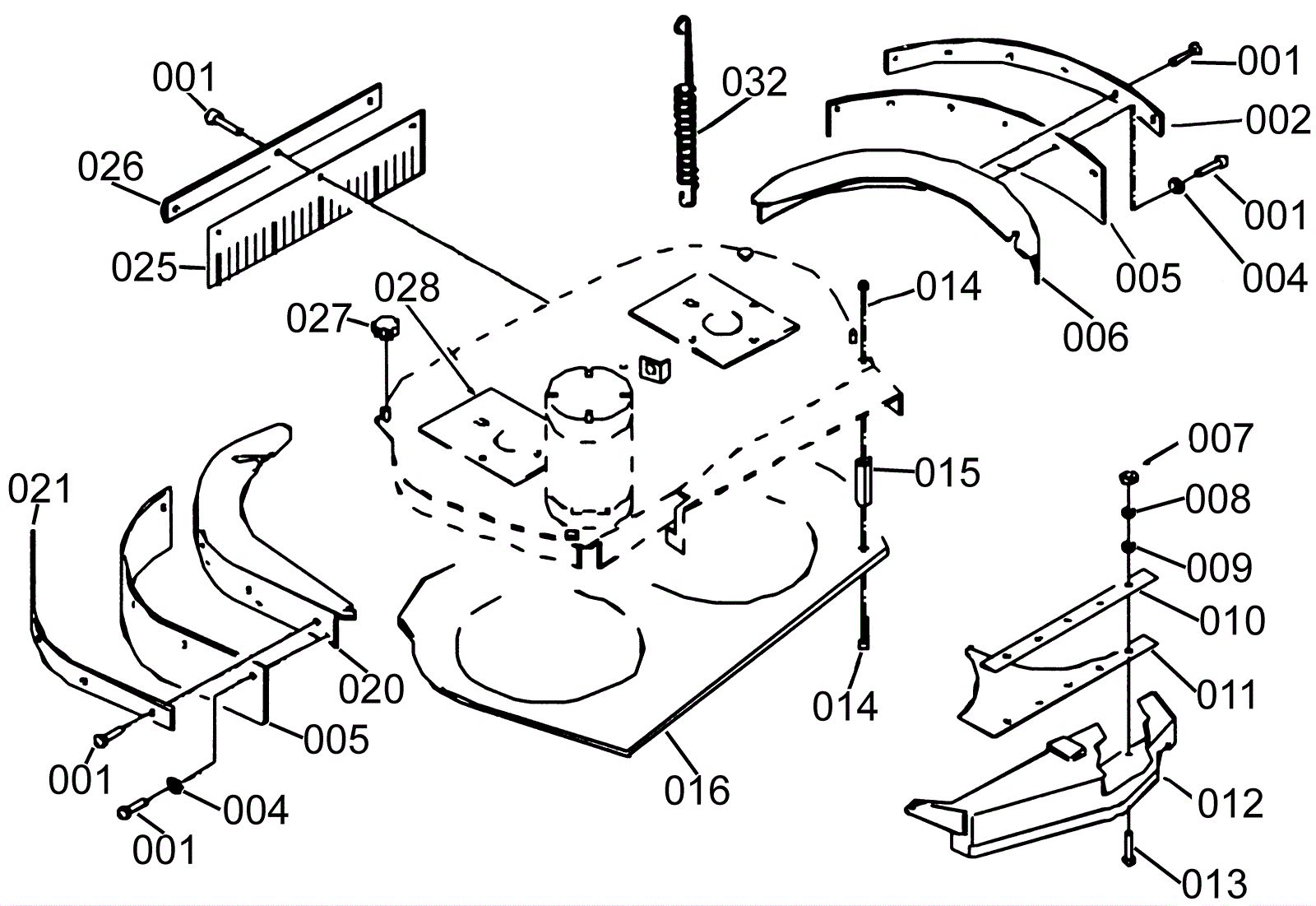

Head95: Flap/Box Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
001
189-1352
Screw
$4.34
23
usually ships 6-17 days
002
189-0783
Flap press
$61.26
1
usually ships 1-5 days
004
203-0145
Washer 4-16 inch
$0.90
10
usually ships 6-17 days
005
189-0784
Splash guard side flap
$118.67
2
usually ships 1-5 days
006
189-0785
Cover
Call for price
1
usually ships 1-5 days
007
189-1434
Nut
$4.34
5
usually ships 1-5 days
008
189-1433
Washer
$4.22
5
usually ships 1-5 days
009
203-0235
Washer
$0.90
5
usually ships 6-17 days
010
189-0473
Lamination
$34.94
1
usually ships 1-5 days
011
189-0474
Dustpan
$45.60
1
usually ships 1-5 days
012
189-0475
Dust collector
$349.74
1
usually ships 1-5 days
013
189-1476
Screw
$2.14
5
usually ships 1-5 days
014
189-1435
Screw
$4.34
14
usually ships 1-5 days
015
189-0476
Head protection spacer
$19.28
7
usually ships 1-5 days
016
203-2368
Guard (OBSOLETE)
Call for price
1
usually ships 1-5 days
020
189-0787
Cover
$391.17
1
usually ships 1-5 days
021
189-0788
Flap press
$61.26
1
usually ships 1-5 days
025
189-0789
Splash guard rear flap
$39.87
1
usually ships 1-5 days
026
189-0790
Flap press
Call for price
1
usually ships 1-5 days
027
203-2432
Knob
$10.40
2
usually ships 1-5 days
028
189-0792
Gasket
$10.23
2
usually ships 1-5 days
032
189-0222
Spring
$44.52
1
usually ships 1-5 days
