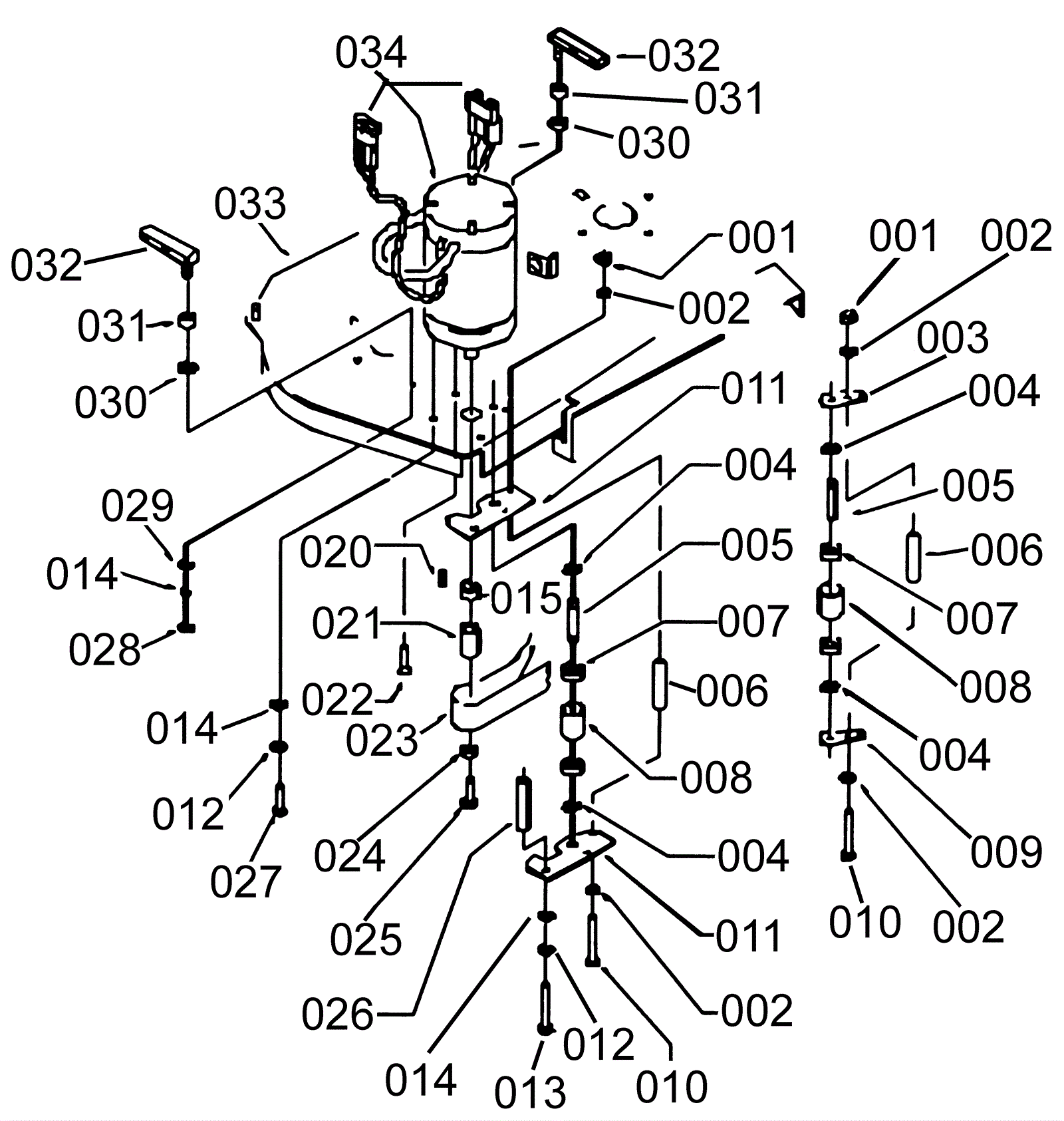

RHINO36 Head95: Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1361 Nut $4.86 3 usually ships 1-5 days
002 189-1345 Washer d10 cham $4.84 6 usually ships 1-5 days
003 203-2343 Plate (OBSOLETE) Call for price 1 usually ships 1-5 days
004 189-0081 Ring $0.99 4 usually ships 10-12 days
005 189-0148 Pin/plug $18.51 2 usually ships 1-5 days
006 189-0147 Bearing $9.67 3 usually ships 10-12 days
007 203-3263 Bearing $32.12 4 ships same day
008 189-0146 Pulley $37.64 2 usually ships 10-12 days
009 189-0710 Plate $23.47 1 usually ships 1-5 days
010 189-1419 Screw $4.86 3 usually ships 1-5 days
011 189-0528 Plate $53.02 2 usually ships 1-5 days
012 189-1369 Washer cham $4.86 3 usually ships 1-5 days
013 189-1420 Screw $7.71 2 usually ships 1-5 days
014 189-1363 Washer $4.84 5 usually ships 1-5 days
015 189-0531 Spacer $11.85 1 usually ships 1-5 days
020 203-2062 Key 5x5x20 $17.05 1 usually ships 10-12 days
021 189-0221 Pulley $75.46 1 usually ships 1-5 days
022 203-2350 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
023 189-0711 Belt $425.14 1 usually ships 1-5 days
025 189-1421 Screw $3.94 1 usually ships 1-5 days
026 189-0529 Spacer $7.82 2 usually ships 1-5 days
027 189-1364 Screw Call for price 1 usually ships 1-5 days
029 189-1393 Washer $2.79 2 usually ships 1-5 days
030 189-1394 Washer D13 $2.79 2 usually ships 1-5 days
031 189-0223 Rubber shim $7.79 2 usually ships 1-5 days
032 189-0224 Bracket $62.47 2 usually ships 1-5 days
033 203-2355 Plate (OBSOLETE) Call for price 1 usually ships 1-5 days
034b 189-0534 Connector $5.50 1 usually ships 1-5 days
034c 189-2002 Battery charger connector $25.59 1 ships same day
034d 203-2359 Motor coal (OBSOLETE) Call for price 2 usually ships 1-5 days
