RHINO36

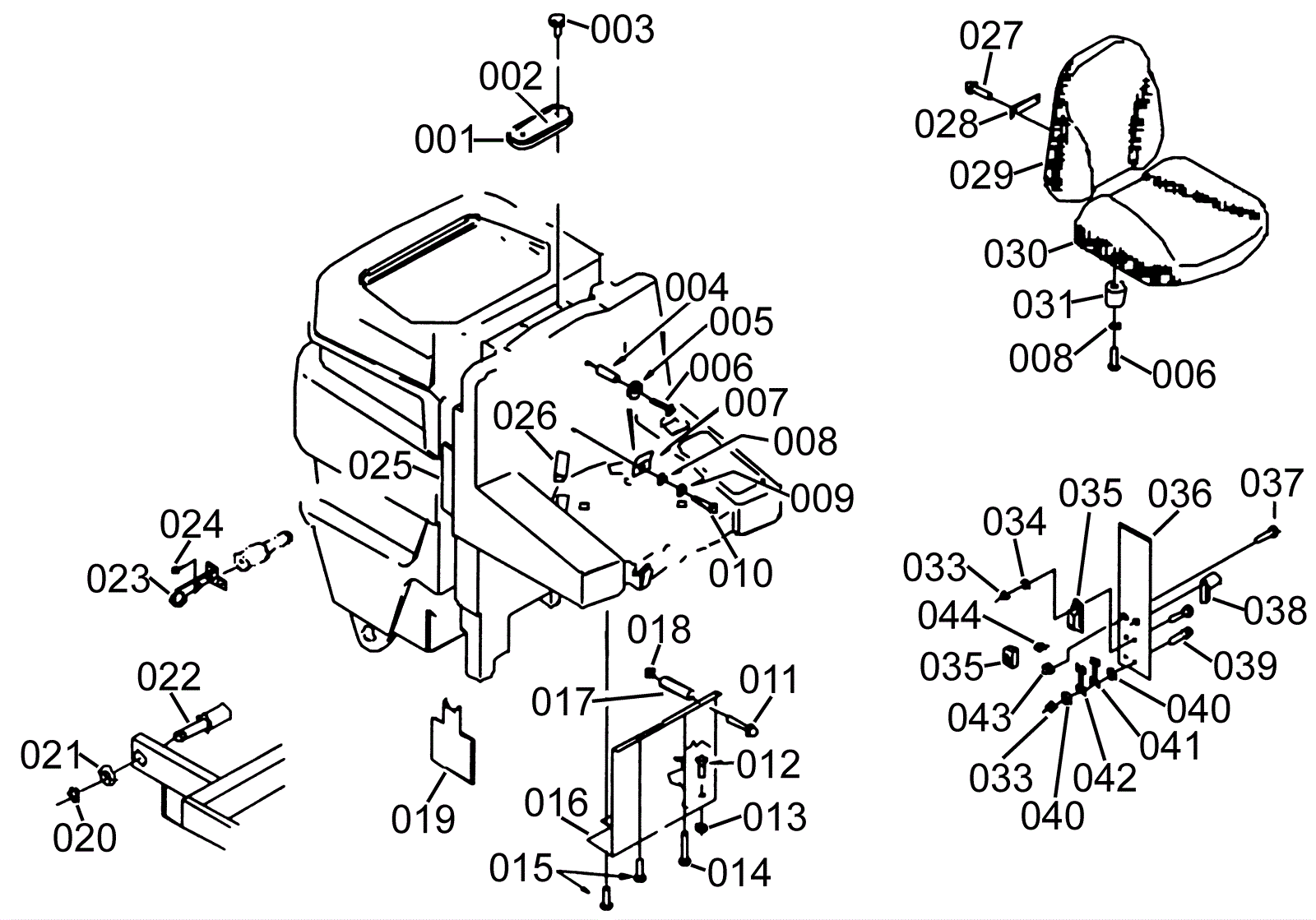

Tank Accessories Assembly 1
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
001
189-0713
Gasket
$15.23
1
usually ships 1-5 days
002
189-0651
Lid
$36.68
1
usually ships 1-5 days
003
189-0714
Handwheel
Call for price
2
usually ships 1-5 days
004
189-0666
Reinforcement
Call for price
2
usually ships 1-5 days
005
189-1356
Washer 6-18 inch
$0.71
2
usually ships 1-5 days
006
189-1354
Turned eye screw
$1.76
6
usually ships 1-5 days
007
189-0662
Plate
Call for price
1
usually ships 1-5 days
008
189-1345
Washer d10 cham
$4.32
4
usually ships 1-5 days
009
189-1347
Washer
$4.22
1
usually ships 1-5 days
010
189-1357
Screw 6 x 12 inch
$4.34
1
usually ships 6-17 days
011
189-1359
Screw
Call for price
1
usually ships 1-5 days
012
189-1360
Screw
Call for price
1
usually ships 1-5 days
014
203-0243
Screw (OBSOLETE)
$0.90
2
usually ships 1-5 days
015
189-1350
Screw
$4.30
7
usually ships 1-5 days
016
203-2699
Plate (OBSOLETE)
Call for price
1
usually ships 1-5 days
017
203-2700
Spacer (OBSOLETE)
$3.24
1
usually ships 1-5 days
018
189-1361
Nut
$4.34
1
usually ships 1-5 days
019
203-2701
Panel (OBSOLETE)
Call for price
1
usually ships 1-5 days
020
203-2702
Ring (OBSOLETE)
$1.86
2
usually ships 1-5 days
021
189-1362
Washer
Call for price
2
usually ships 1-5 days
022
189-0669
Pin
Call for price
2
usually ships 1-5 days
023
189-0715
Support
Call for price
1
usually ships 1-5 days
024
203-4851
Screw
$6.83
1
usually ships 1-5 days
025
203-2706
Reinforcement
$23.38
1
usually ships 1-5 days
026
203-2707
Terminal (OBSOLETE)
Call for price
2
usually ships 1-5 days
027
189-1365
Seat screw
$6.83
1
usually ships 1-5 days
028
203-2708
Plate (OBSOLETE)
Call for price
1
usually ships 1-5 days
029
203-2709
Seat back (OBSOLETE)
$52.77
1
usually ships 1-5 days
030
203-2710
Seat bottom
$112.65
1
usually ships 1-5 days
031
189-0574
Plug / Stopper
$5.00
4
usually ships 1-5 days
033
203-2457
Nut (OBSOLETE)
$0.90
4
usually ships 1-5 days
034
189-1353
Washer D5
$4.32
2
usually ships 1-5 days
035A
189-0659
Fuse holders
$20.53
1
usually ships 1-5 days
035B
189-0462
Lid
$6.83
1
usually ships 1-5 days
036
203-2711
Lid (OBSOLETE)
Call for price
1
usually ships 1-5 days
037
189-1454
Screw
$2.08
3
usually ships 1-5 days
038
203-2712
Catch/lock (OBSOLETE)
Call for price
1
usually ships 1-5 days
039
189-1352
Screw
$4.34
4
usually ships 6-17 days
040
203-0145
Washer 4-16 inch
$0.90
4
usually ships 6-17 days
041
189-0247
100amp fuse
$11.97
1
usually ships 1-5 days
042
189-0456
75amp fuse
$11.97
1
usually ships 1-5 days
043
203-0524
Nut M6 lock
$5.00
1
usually ships 1-5 days
044A
189-0107
5 amp fuse
$4.20
4
usually ships 1-5 days
044B
189-0108
Fuse
$5.00
1
usually ships 1-5 days
044C
189-0463
Fuse
$4.20
1
usually ships 1-5 days
