RHINO36

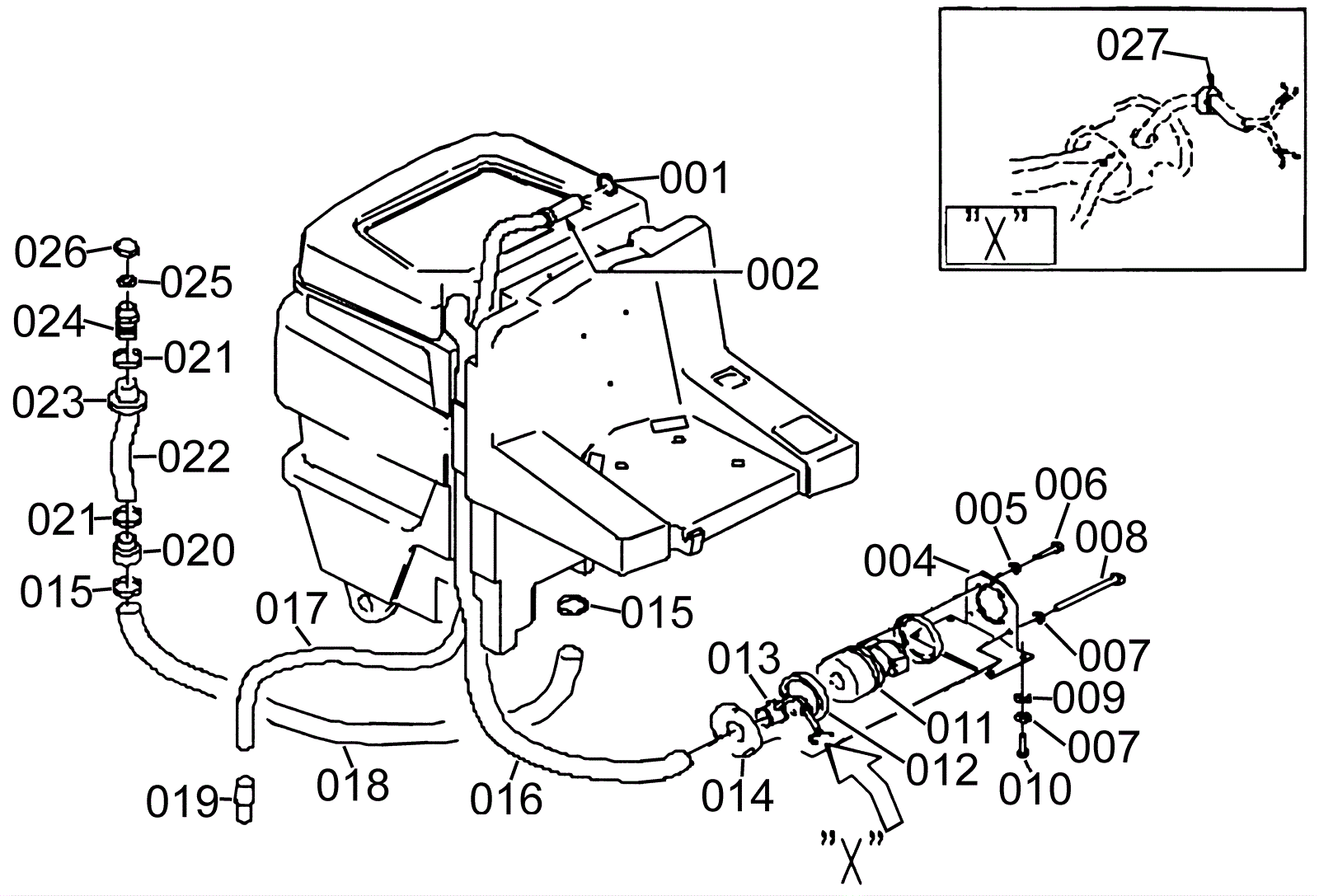

Tank:Suction Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
001
189-0680
Gasket
$4.22
1
usually ships 1-5 days
004
189-0681
Support
Call for price
1
usually ships 1-5 days
005
189-1345
Washer d10 cham
$4.32
4
usually ships 1-5 days
006
203-0243
Screw (OBSOLETE)
$0.90
4
usually ships 1-5 days
007
189-1347
Washer
$4.22
7
usually ships 1-5 days
008
189-1348
Screw
$13.61
3
usually ships 1-5 days
009
189-1356
Washer 6-18 inch
$0.71
4
usually ships 1-5 days
010
189-1424
Screw
$4.73
4
usually ships 1-5 days
011
203-2680
3 Stage vac motor
$453.11
1
usually ships 1-5 days
012
189-0185
Gasket
$13.46
2
usually ships 6-17 days
013
189-0782
Connector
$144.32
1
usually ships 1-5 days
014
189-0686
Flange
$90.68
1
usually ships 1-5 days
015
189-0687
Clamp
$37.85
2
usually ships 1-5 days
017
189-0023
Squeegee vac hose
$177.14
1
usually ships 1-5 days
018
189-0024
Recovery drain hose
$100.01
1
usually ships 1-5 days
019
189-0118
Sleeve
$10.21
1
usually ships 6-17 days
020
189-0689
Connector
$78.32
1
usually ships 1-5 days
021
189-0690
Clamp
$27.29
2
usually ships 1-5 days
022
189-0691
Drain hose sheath
$41.33
1
usually ships 1-5 days
023
189-0692
Drain hose adapter
$78.32
1
usually ships 1-5 days
024
189-0693
Hose holder
$18.73
1
usually ships 1-5 days
026
189-0695
Cap
$11.77
1
usually ships 1-5 days
027
189-0698
Fairlead
$5.22
1
usually ships 1-5 days
