RHINO36

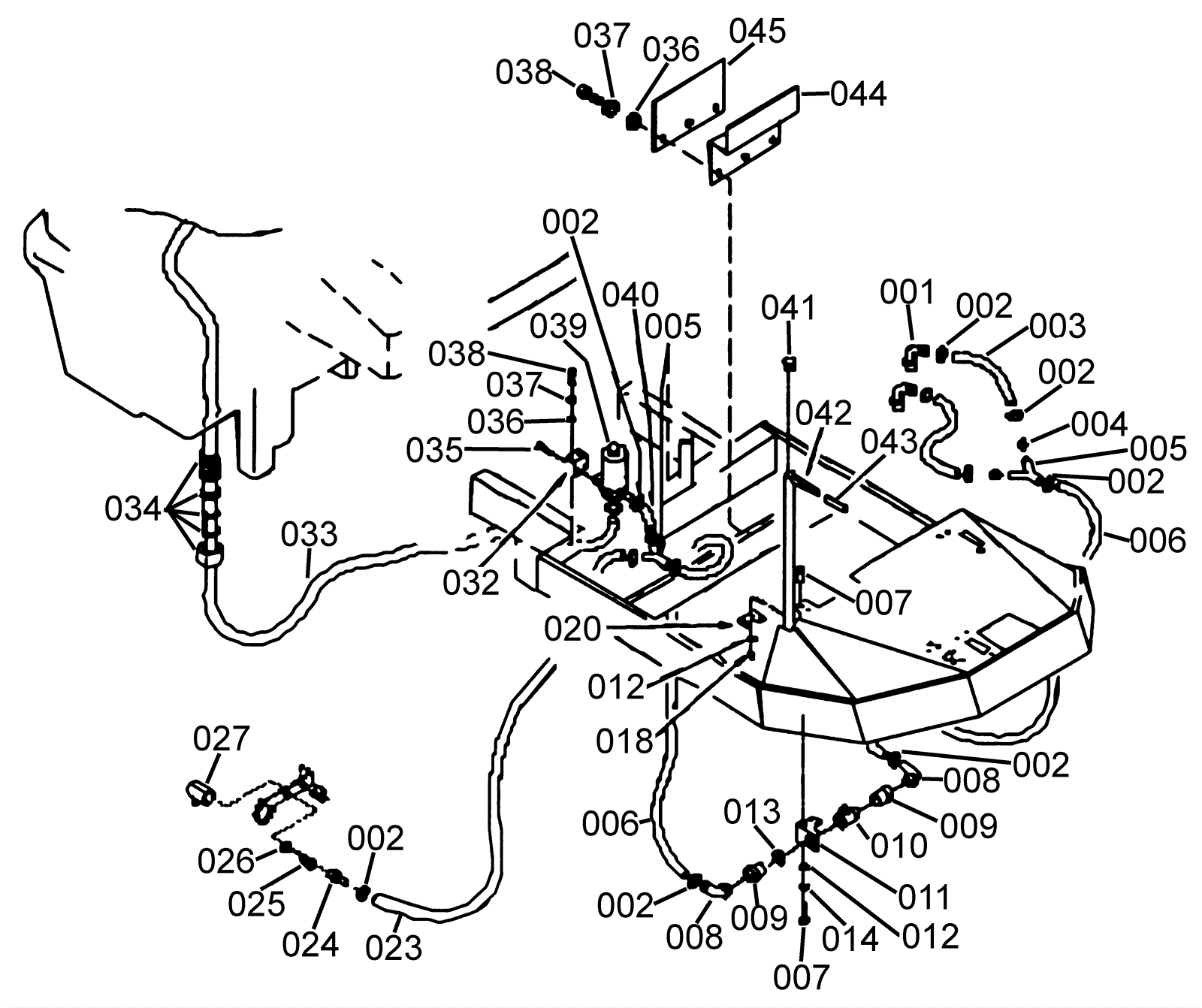

Tank Hydraulic Unit Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
001
189-0142
Union/connector
$10.40
2
usually ships 6-17 days
002
189-0716
Clamp 14-24 inch
$5.22
13
ships same day
003
189-0717
Hose
$10.48
2
usually ships 1-5 days
004
189-0718
Union / connector
Call for price
2
usually ships 1-5 days
006
189-0720
Hose
$19.05
2
usually ships 1-5 days
007
189-1390
Screw
$4.00
4
usually ships 1-5 days
008
189-0721
Left coupling
$8.47
2
ships same day
009
189-0722
Reduction
$11.77
2
usually ships 6-17 days
011
189-0724
Support
$45.60
1
usually ships 1-5 days
012
189-1345
Washer d10 cham
$4.32
4
usually ships 1-5 days
013
189-1455
Washer
$4.32
1
usually ships 6-17 days
014
189-1347
Washer
$4.22
2
usually ships 1-5 days
018
203-0524
Nut M6 lock
$5.00
2
usually ships 1-5 days
020
189-0725
Block / Lock
$34.68
1
usually ships 1-5 days
023
189-0726
Hose
$31.40
1
usually ships 1-5 days
024
189-0727
Union / Connector
$30.62
1
usually ships 1-5 days
025
189-0722
Reduction
$11.77
1
usually ships 6-17 days
026
189-1455
Washer
$4.32
1
usually ships 6-17 days
027
203-4346
Tap
$75.93
1
usually ships 6-17 days
033
189-0729
Hose
$65.90
1
usually ships 1-5 days
034
203-2670
Union/connector
$52.49
1
usually ships 1-5 days
035
189-1407
Screw
$4.34
2
usually ships 1-5 days
036
189-1375
Washer D4
$4.32
5
usually ships 1-5 days
037
189-1456
Washer (OBSOLETE)
Call for price
5
usually ships 1-5 days
038
189-1352
Screw
$4.34
5
usually ships 6-17 days
039
189-0731
Pump
$668.30
1
usually ships 1-5 days
040
189-0732
Hose
$10.59
1
usually ships 1-5 days
041
189-0733
Cap
$5.00
1
usually ships 1-5 days
042
189-0734
Lever
$156.50
1
usually ships 1-5 days
043
203-0522
Handle
$10.58
1
usually ships 1-5 days
044
203-2675
Plate (OBSOLETE)
Call for price
1
usually ships 1-5 days
045
203-2676
Plate (OBSOLETE)
Call for price
1
usually ships 1-5 days
