RHINO36

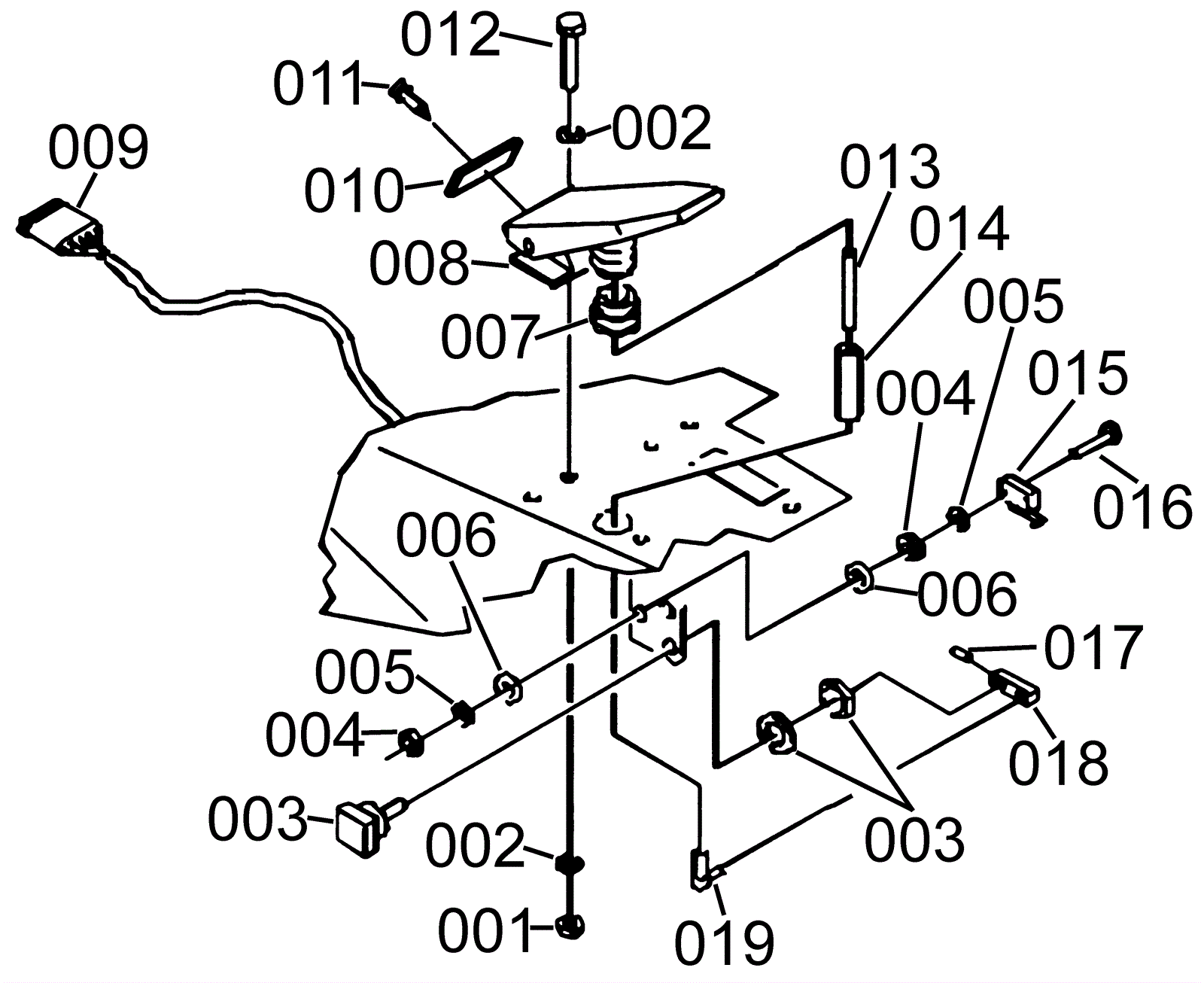

Drive Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
001
189-1361
Nut
$4.34
2
usually ships 1-5 days
002
189-1345
Washer d10 cham
$4.32
4
usually ships 1-5 days
003
189-0511
Potentiometer
$102.22
1
usually ships 1-5 days
004
189-1425
Nut
Call for price
4
usually ships 1-5 days
005
189-1426
Washer
$1.98
4
usually ships 1-5 days
006
189-1375
Washer D4
$4.32
4
usually ships 1-5 days
007
189-0512
Bushing
$52.49
1
usually ships 1-5 days
008
189-0513
Treadle
$461.60
1
usually ships 1-5 days
009
203-2622
Wiring (OBSOLETE)
Call for price
1
usually ships 1-5 days
010
189-0515
Spacer
$4.42
1
usually ships 1-5 days
011
189-1350
Screw
$4.30
1
usually ships 1-5 days
012
189-1390
Screw
$4.00
2
usually ships 1-5 days
013
189-0516
Bar
$6.83
1
usually ships 1-5 days
014
189-0517
Spacer
$5.33
1
usually ships 1-5 days
015
189-0261
Microswitch
$37.29
1
usually ships 6-17 days
016
189-1427
Screw
$4.34
2
usually ships 6-17 days
017
203-2462
Traction level spring
$5.19
1
usually ships 1-5 days
018
189-0519
Lever
$27.90
1
usually ships 1-5 days
019
189-0327
Articulation
$27.29
1
usually ships 1-5 days
