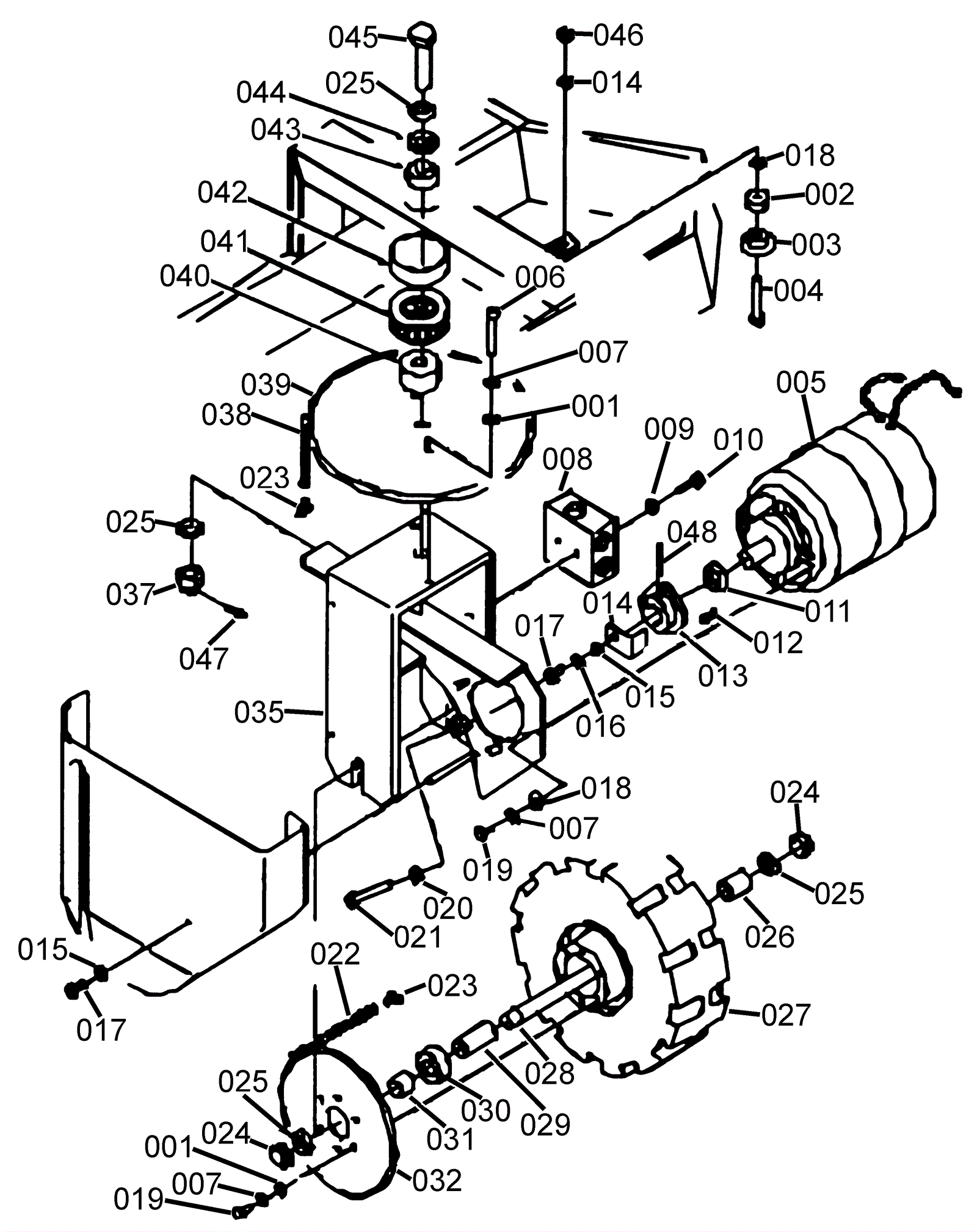

RHINO36 Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1363 Washer $5.19 14 usually ships 1-5 days
002 189-0609 Spacer $30.69 1 usually ships 1-5 days
003 189-0610 Chain tightener $168.29 1 usually ships 1-5 days
004 189-1373 Screw 8 x 45 inch $4.20 1 ships same day
005 203-2565 Gearmotor 36v $1,930.20 1 usually ships 1-5 days
006 189-1374 Screw $5.19 2 usually ships 1-5 days
007 189-1369 Washer cham $5.19 12 usually ships 1-5 days
008 189-0612 Electric housing (OBSOLETE) Call for price 1 usually ships 1-5 days
009 189-1375 Washer D4 $3.10 2 usually ships 1-5 days
010 189-1376 Screw 4 x 10 inch $4.20 2 usually ships 10-12 days
011 189-1377 Washer Call for price 1 usually ships 1-5 days
012 203-2568 Tongue (OBSOLETE) Call for price 1 usually ships 1-5 days
013 189-0613 Pinion $133.38 1 usually ships 1-5 days
014 189-0614 Plate $50.16 1 usually ships 1-5 days
015 189-1345 Washer d10 cham $5.19 4 usually ships 1-5 days
016 189-1347 Washer $5.06 1 usually ships 1-5 days
017 189-1424 Screw $5.17 3 usually ships 1-5 days
018 189-1378 Washer $5.19 5 usually ships 1-5 days
019 189-1367 Screw Call for price 10 usually ships 1-5 days
020 189-1379 Nut M8 $30.60 1 usually ships 1-5 days
021 189-1370 Screw $5.19 1 usually ships 1-5 days
022 189-0615 Traction chain $133.52 1 usually ships 1-5 days
023 189-0616 Chain link $18.14 2 usually ships 1-5 days
024 189-1380 Nut $21.21 2 usually ships 1-5 days
025 189-1381 Washer $2.55 4 usually ships 1-5 days
026 189-0617 Spacer $12.76 1 usually ships 1-5 days
027 189-0618 Driver wheel $2,514.91 1 usually ships 1-5 days
028 189-0619 Pin $43.20 1 usually ships 1-5 days
029 189-0620 Spacer $37.99 1 usually ships 1-5 days
030 203-2578 Bearing $32.16 1 usually ships 1-5 days
031 189-0622 Spacer $6.66 1 usually ships 1-5 days
032 189-0623 Crown $503.98 1 usually ships 1-5 days
035 203-2581 Fork (OBSOLETE) Call for price 1 usually ships 1-5 days
037 203-2582 Nut $5.19 1 usually ships 1-5 days
038 189-0625 Steering chain $136.72 1 usually ships 1-5 days
039 189-0626 Crown $450.77 1 usually ships 1-5 days
040 189-0627 Spacer $129.78 1 usually ships 1-5 days
041 189-0628 Bearing $203.35 1 usually ships 1-5 days
042 189-0629 Guard $6.18 1 usually ships 1-5 days
043 203-2588 Bearing $114.15 1 usually ships 1-5 days
044 189-0631 Ring $33.40 1 usually ships 1-5 days
045 203-2590 Screw $12.47 1 usually ships 1-5 days
047 203-2591 Split pin (OBSOLETE) Call for price 1 usually ships 1-5 days
048 189-0633 Split pin (OBSOLETE) Call for price 1 usually ships 1-5 days
049 203-2592 Motor drum (OBSOLETE) Call for price 1 usually ships 1-5 days
