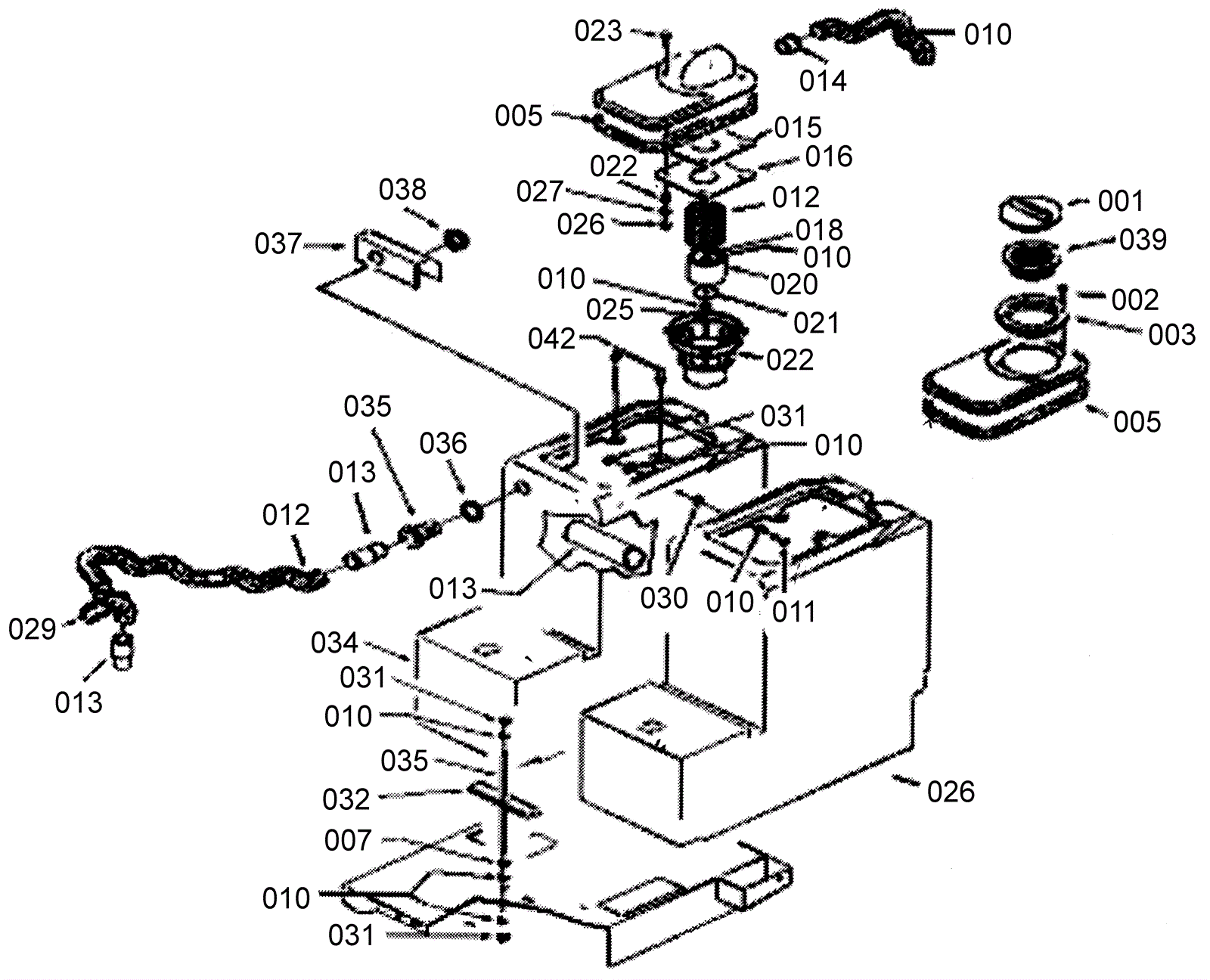

BOXER36 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-0768 Cap $65.75 1 usually ships 1-5 days
002 203-2369 Screw $19.18 4 usually ships 1-5 days
003 189-1474 Nut $41.64 1 usually ships 1-5 days
005 203-2528 Gasket $35.95 2 usually ships 1-5 days
007 189-1489 Nut M6 $3.61 1 usually ships 1-5 days
010 189-1391 Washer D6 $0.99 7 usually ships 15-24 days
011 189-1509 Screw M6 $4.20 1 usually ships 15-24 days
012 203-2529 Hose (OBSOLETE) Call for price 1 usually ships 1-5 days
013 189-0118 Sleeve $12.25 2 usually ships 15-24 days
014 189-0116 Bushing $37.81 1 usually ships 1-5 days
015 203-2530 Gasket $16.75 1 usually ships 1-5 days
016 203-2531 Float limit switch (OBSOLETE) Call for price 1 usually ships 1-5 days
017 203-2532 Vacuum filter $57.67 1 usually ships 1-5 days
018 189-1536 Nut with nylon ring $5.50 1 usually ships 5-9 days
020 203-2533 Float (OBSOLETE) Call for price 1 usually ships 1-5 days
021 189-1094 Gasket $5.50 1 usually ships 1-5 days
022 203-2534 Support (OBSOLETE) Call for price 1 usually ships 1-5 days
023 203-2535 Screw (OBSOLETE) Call for price 4 usually ships 1-5 days
025 203-2369 Screw $19.18 1 usually ships 1-5 days
026 189-1468 Nut $3.61 4 usually ships 15-24 days
027 189-1353 Washer D5 $2.99 4 usually ships 1-5 days
028 203-2536 Tank (OBSOLETE) Call for price 1 usually ships 1-5 days
029 189-0295 Plaque $18.67 1 usually ships 15-24 days
030 203-2537 Rubber shim (OBSOLETE) Call for price 1 usually ships 1-5 days
031 203-0524 Nut M6 lock $5.50 3 usually ships 1-5 days
032 203-2538 Plate (OBSOLETE) Call for price 1 usually ships 1-5 days
033 203-2539 Double threaded bolt $26.75 1 usually ships 1-5 days
034 203-2540 Tank (OBSOLETE) Call for price 1 usually ships 1-5 days
035 203-0813 Suction opening $40.54 1 usually ships 15-24 days
036 203-0812 Gasket $5.24 1 usually ships 15-24 days
037 203-2541 Baffle plate (OBSOLETE) Call for price 1 usually ships 1-5 days
038 203-2542 Nut (OBSOLETE) Call for price 1 usually ships 1-5 days
039 203-2543 Filter (OBSOLETE) Call for price 1 usually ships 1-5 days
040 203-2544 Hose $101.09 1 usually ships 1-5 days
041 203-2545 Cross (OBSOLETE) Call for price 1 usually ships 1-5 days
042 203-2546 Reinforcement (OBSOLETE) Call for price 1 usually ships 1-5 days
