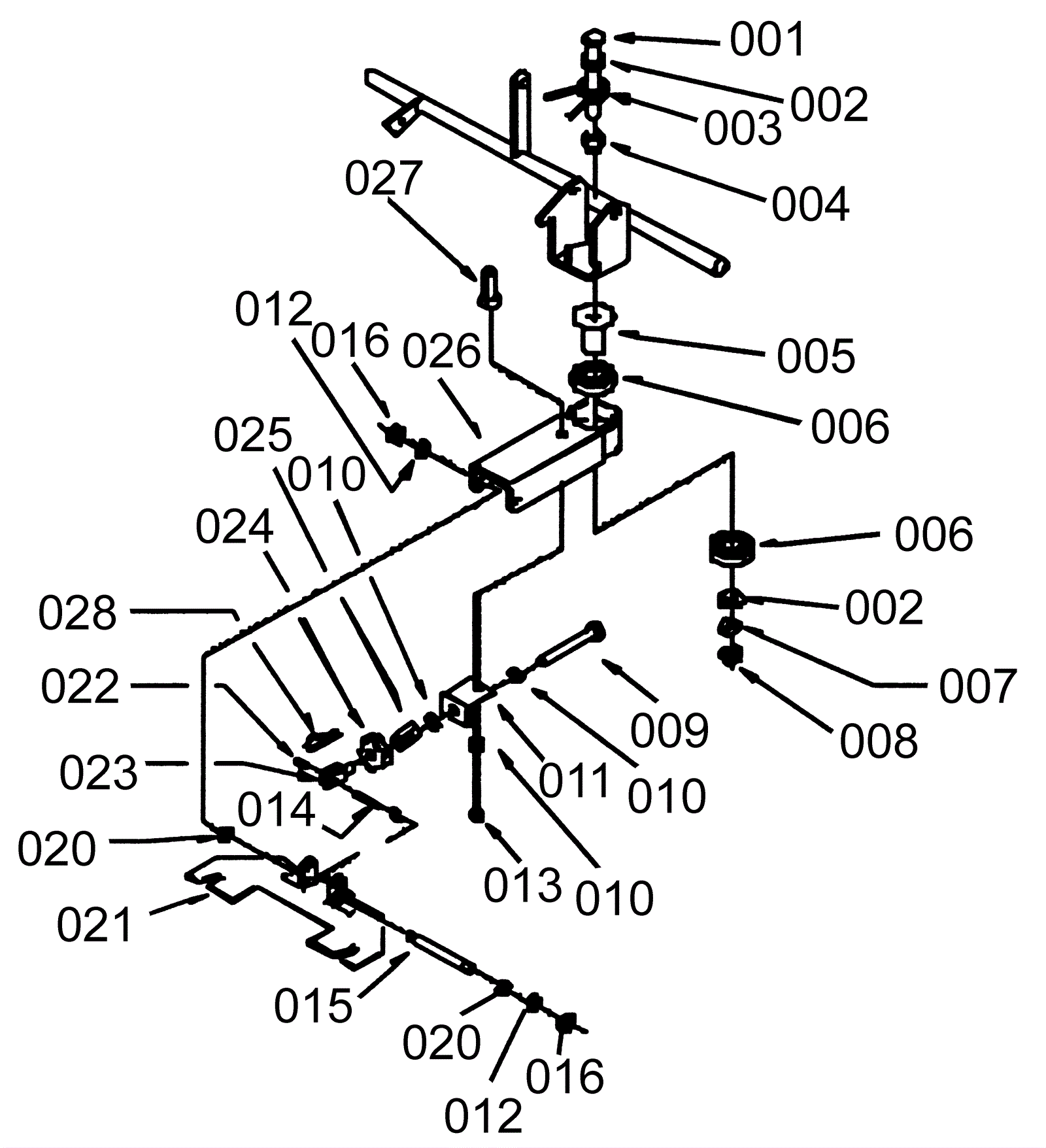

BOXER36 Squeegee Support Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1531 Screw $12.55 1 usually ships 1-5 days
002 189-1532 Washer D10 $2.99 2 usually ships 1-5 days
003 189-0202 Spring $24.65 1 usually ships 1-5 days
004 189-0888 Bushing $16.71 1 usually ships 1-5 days
005 189-0889 Pin $57.74 1 usually ships 1-5 days
006 203-0715 Bearing $84.87 2 usually ships 15-24 days
007 203-2391 Nut (OBSOLETE) $3.89 1 usually ships 1-5 days
008 189-1415 Nut $3.67 1 usually ships 1-5 days
009 189-1370 Screw $5.19 1 usually ships 1-5 days
010 189-0897 Washer D8 $2.99 3 usually ships 15-24 days
011 189-0890 Support $37.93 1 usually ships 1-5 days
013 189-1373 Screw 8 x 45 inch $4.20 1 ships same day
014 189-0077 Pin $8.40 1 usually ships 1-5 days
015 189-0891 Pin $46.13 1 usually ships 1-5 days
016 203-0524 Nut M6 lock $5.50 2 usually ships 1-5 days
020 189-1393 Washer $2.99 2 usually ships 1-5 days
021 189-0203 Bracket $641.93 1 usually ships 1-5 days
022 189-0892 Bearing $8.37 2 usually ships 1-5 days
023 189-0080 Fork $7.62 1 usually ships 1-5 days
024 203-2432 Knob $12.49 1 usually ships 1-5 days
025 189-1534 Nut $20.76 2 usually ships 1-5 days
026 189-0893 Arm $275.50 1 usually ships 1-5 days
027 189-0894 Bearing $41.94 1 usually ships 1-5 days
028 203-2436 Split pin (OBSOLETE) Call for price 1 usually ships 1-5 days
