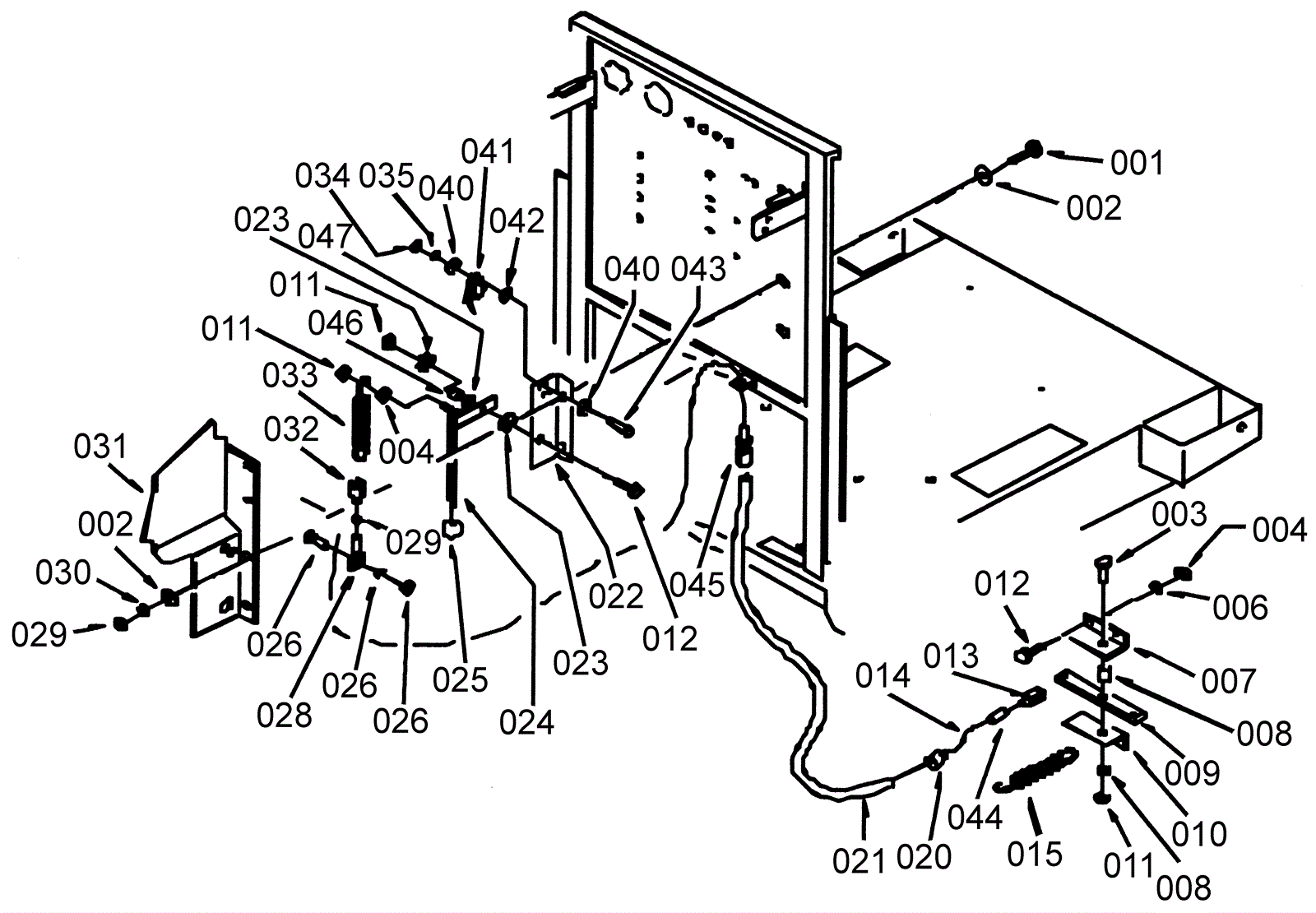

BOXER36 Brake Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1424 Screw $4.73 2 usually ships 1-5 days
002 189-1356 Washer 6-18 inch $0.78 2 usually ships 1-5 days
003 189-1439 Screw $5.74 1 usually ships 1-5 days
004 203-0524 Nut M6 lock $5.50 5 usually ships 1-5 days
006 189-1391 Washer D6 $3.16 5 usually ships 5-15 days
007 203-2393 Support (OBSOLETE) Call for price 1 usually ships 1-5 days
008 189-0168 Bushing $4.36 1 usually ships 1-5 days
009 203-2394 Insert (OBSOLETE) Call for price 1 usually ships 1-5 days
010 203-2395 Support (OBSOLETE) Call for price 1 usually ships 1-5 days
012 203-4992 Screw $3.54 5 usually ships 5-15 days
013 189-0080 Fork $7.62 1 usually ships 1-5 days
014 189-0904 Cable $11.64 1 usually ships 1-5 days
015 189-0582 Spring $9.31 1 usually ships 1-5 days
020 189-0905 Bushing Call for price 1 usually ships 1-5 days
021 203-2398 Sheath (OBSOLETE) Call for price 1 usually ships 1-5 days
022 203-2399 Support (OBSOLETE) Call for price 1 usually ships 1-5 days
023 189-1418 Washer Call for price 2 usually ships 1-5 days
024 203-2401 Solution control lever $31.69 1 usually ships 1-5 days
025 189-0119 Knob $9.48 1 usually ships 5-15 days
026 203-2402 Clamp (OBSOLETE) $1.70 1 usually ships 1-5 days
028 203-2403 Plaque (OBSOLETE) Call for price 1 usually ships 1-5 days
029 999-1308 Nut M6-1 hex stainless steel $0.99 3 ships same day
030 189-1347 Washer $4.64 2 usually ships 1-5 days
031 203-2404 Guard (OBSOLETE) Call for price 1 usually ships 1-5 days
032 203-2405 Fork (OBSOLETE) Call for price 1 usually ships 1-5 days
033 189-0575 Spring $11.44 1 usually ships 1-5 days
034 189-1425 Nut Call for price 2 usually ships 1-5 days
035 189-1426 Washer $2.18 2 usually ships 1-5 days
040 189-1441 Washer $4.75 4 usually ships 1-5 days
041 189-0258 Microswitch $18.94 1 usually ships 5-15 days
042 203-1084 Standard pad driver 20 inch $439.34 2 usually ships 1-5 days
043 189-1549 Screw $4.77 2 usually ships 1-5 days
044 203-2407 Split pin (OBSOLETE) Call for price 1 usually ships 1-5 days
045 203-2408 Register (OBSOLETE) Call for price 1 usually ships 1-5 days
046 203-2409 Bushing $11.62 1 usually ships 1-5 days
047 189-1529 Washer $2.57 1 usually ships 1-5 days
