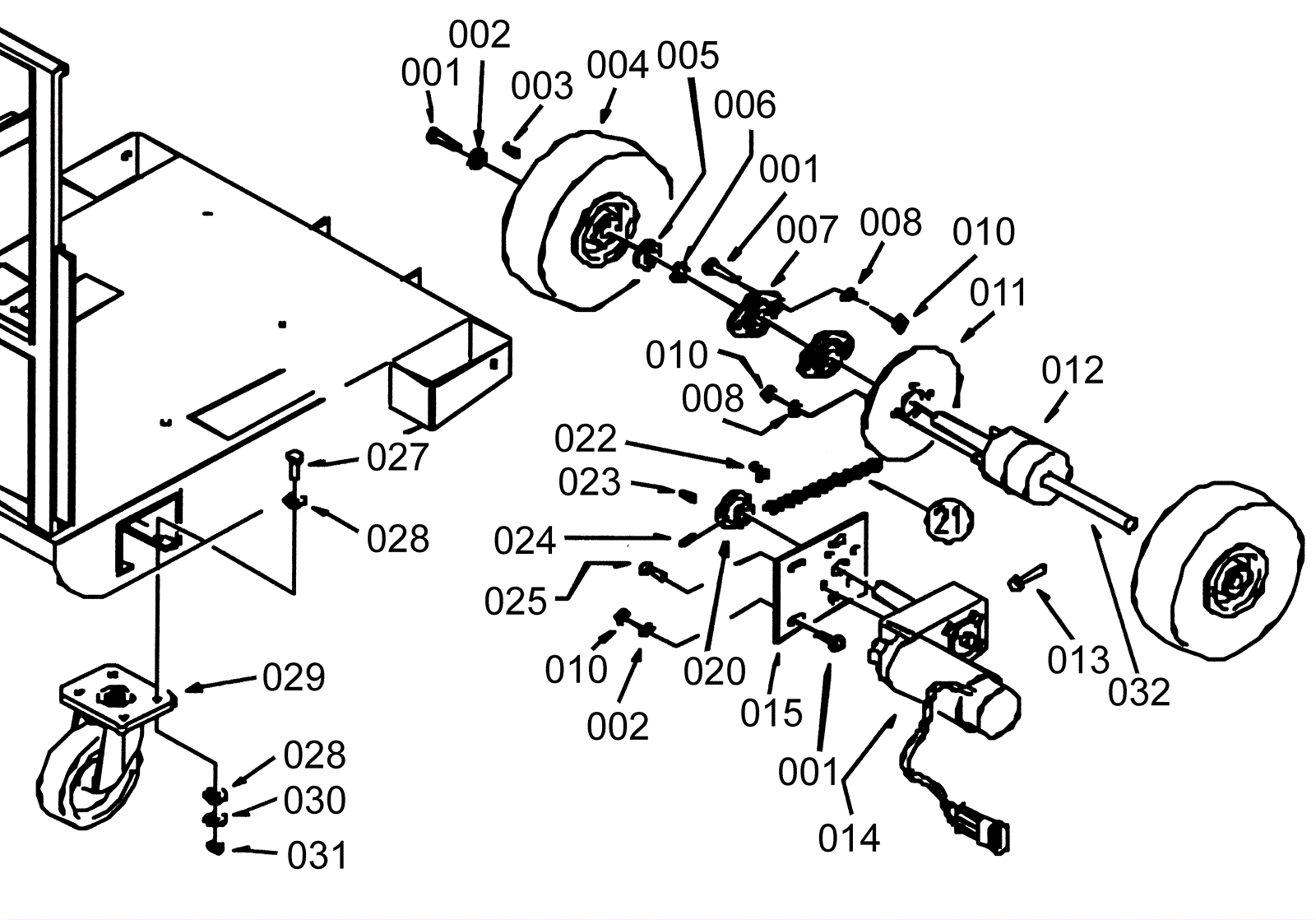

BOXER36 Drive Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1512 Screw 8 x 20 inch $4.77 14 usually ships 5-15 days
002 189-1400 Washer $4.75 8 usually ships 5-15 days
003 203-2062 Key 5x5x20 $5.74 2 usually ships 5-15 days
004 203-2379 Wheel $1,193.21 2 usually ships 1-5 days
005 203-2380 Bearing (OBSOLETE) Call for price 2 usually ships 1-5 days
006 189-0645 Ring $4.75 2 usually ships 1-5 days
007 189-0226 Bearing $136.72 4 usually ships 1-5 days
008 189-0897 Washer D8 $1.10 8 usually ships 5-15 days
011 203-2381 Crown $140.37 1 usually ships 1-5 days
012 203-2382 Differential (OBSOLETE) $359.03 1 usually ships 1-5 days
013 203-0522 Handle $11.64 1 usually ships 1-5 days
014 203-2383 Motor (OBSOLETE) Call for price 1 usually ships 1-5 days
015 203-2384 Plate (OBSOLETE) Call for price 1 usually ships 1-5 days
020 203-2385 Pinion (OBSOLETE) Call for price 1 usually ships 1-5 days
021 203-2386 Chain $122.34 1 usually ships 1-5 days
022 189-0616 Chain link $16.62 1 usually ships 1-5 days
023 203-0644 Square keyway $3.15 1 usually ships 5-15 days
024 189-0633 Split pin (OBSOLETE) Call for price 1 usually ships 1-5 days
025 189-1497 Screw 6 x 16 inch $3.85 4 usually ships 5-15 days
027 203-2389 Screw (OBSOLETE) Call for price 8 usually ships 1-5 days
028 203-0996 Washer (OBSOLETE) $0.99 16 usually ships 1-5 days
029 203-1799 Small wheel $184.21 2 usually ships 5-15 days
030 203-2390 Washer (OBSOLETE) Call for price 8 usually ships 1-5 days
031 203-2391 Nut (OBSOLETE) $3.89 8 usually ships 1-5 days
032 203-2392 Axle shaft $145.35 1 usually ships 1-5 days
