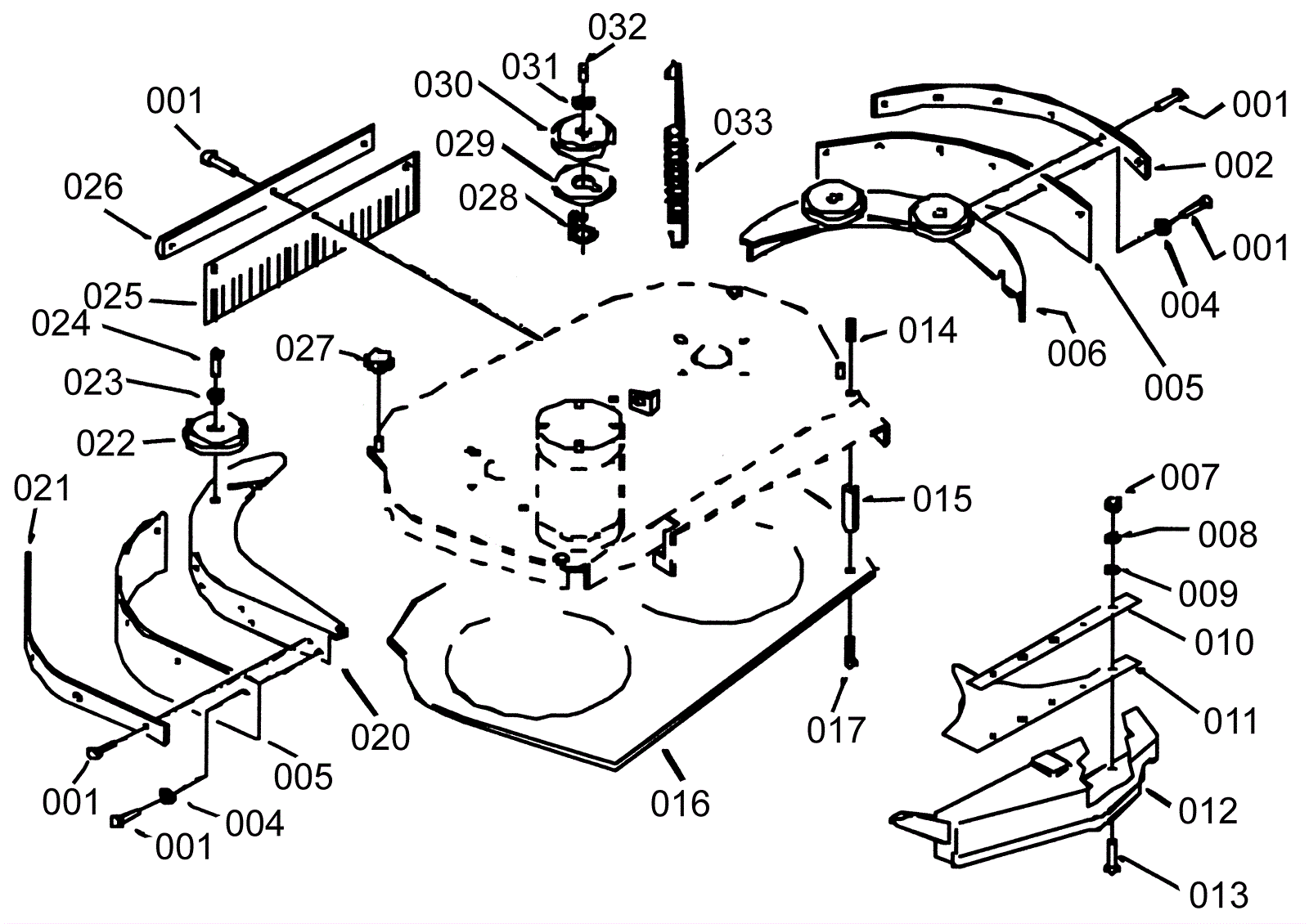

BOXER36 Flap and Box Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1352 Screw $4.25 23 usually ships 15-24 days
002 189-0783 Flap press $73.55 1 usually ships 1-5 days
004 230-0145 Bottom cover plate $78.50 10 usually ships 12-13 days
005 189-0784 Splash guard side flap $142.46 2 usually ships 1-5 days
006 189-0785 Cover Call for price 1 usually ships 1-5 days
007 189-1434 Nut $3.67 5 usually ships 1-5 days
008 189-1433 Washer $5.06 5 usually ships 1-5 days
009 203-0235 Washer $2.99 5 usually ships 15-24 days
010 189-0473 Lamination $41.94 1 usually ships 1-5 days
011 189-0474 Dustpan $54.75 1 usually ships 1-5 days
012 189-0475 Dust collector $466.03 1 usually ships 1-5 days
013 189-1476 Screw $4.25 5 usually ships 1-5 days
014 189-1435 Screw $5.19 8 usually ships 15-24 days
015 189-0476 Head protection spacer $23.16 7 usually ships 1-5 days
016 203-2368 Guard (OBSOLETE) Call for price 1 usually ships 1-5 days
017 203-2369 Screw $19.18 8 usually ships 1-5 days
020 189-0787 Cover $469.61 1 usually ships 1-5 days
021 189-0788 Flap press $73.55 1 usually ships 1-5 days
022 189-0060 Wheel $8.40 3 usually ships 15-24 days
023 189-0901 Bushing $32.81 3 usually ships 1-5 days
024 203-0182 Screw M8 $5.19 3 usually ships 1-5 days
025 189-0789 Splash guard rear flap $47.87 1 usually ships 1-5 days
026 189-0790 Flap press Call for price 1 usually ships 1-5 days
027 189-0055 Handle $8.36 2 usually ships 1-5 days
028 203-2374 Support (OBSOLETE) Call for price 2 usually ships 1-5 days
029 203-2375 Gasket (OBSOLETE) Call for price 2 usually ships 1-5 days
030 203-2376 Spacer (OBSOLETE) Call for price 2 usually ships 1-5 days
031 189-1400 Washer $2.99 2 usually ships 15-24 days
032 189-1407 Screw $5.50 3 usually ships 1-5 days
033 189-0222 Spring $53.45 1 usually ships 1-5 days
