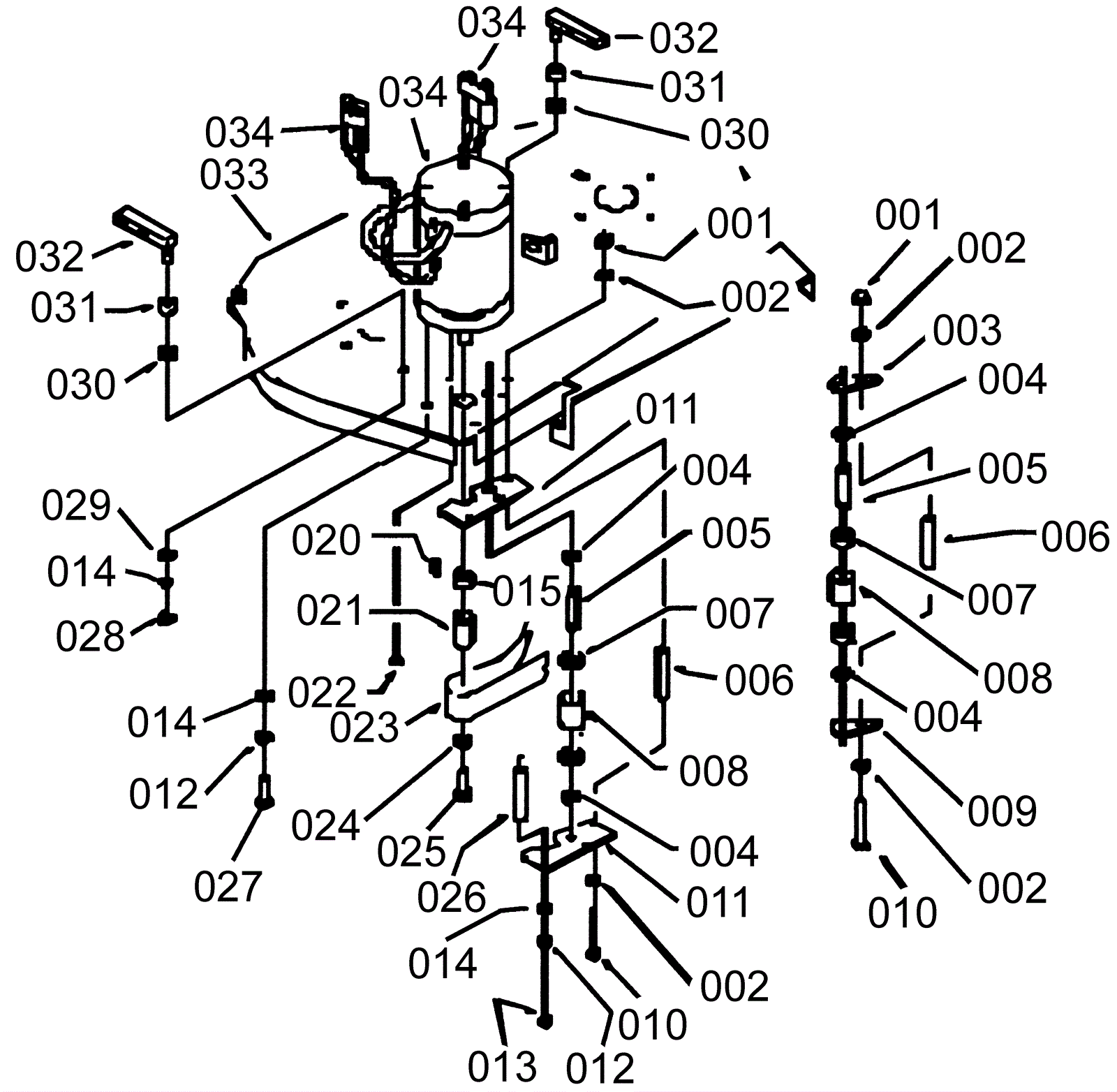

BOXER36 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1361 Nut $4.77 3 usually ships 1-5 days
002 189-1345 Washer d10 cham $4.75 6 usually ships 1-5 days
003 203-2343 Plate (OBSOLETE) Call for price 1 usually ships 1-5 days
004 189-0081 Ring $4.75 4 usually ships 5-15 days
005 189-0148 Pin/plug $17.11 2 usually ships 1-5 days
006 189-0147 Bearing $9.48 3 usually ships 5-15 days
007 203-3263 Bearing $31.44 4 ships same day
008 189-0146 Pulley $36.91 2 usually ships 5-15 days
009 189-0710 Plate $23.01 1 usually ships 1-5 days
010 189-1419 Screw $4.77 3 usually ships 1-5 days
011 189-0528 Plate $53.02 2 usually ships 1-5 days
012 189-1369 Washer cham $4.77 3 usually ships 1-5 days
013 189-1420 Screw $7.56 2 usually ships 1-5 days
014 189-1363 Washer $4.75 5 usually ships 1-5 days
015 189-0531 Spacer $11.62 1 usually ships 1-5 days
020 203-2062 Key 5x5x20 $5.74 1 usually ships 5-15 days
021 189-0221 Pulley $73.98 1 usually ships 1-5 days
022 203-2350 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
023 189-0711 Belt $416.80 1 usually ships 1-5 days
024 189-1422 Washer $9.32 1 usually ships 1-5 days
025 189-1421 Screw $4.64 1 usually ships 1-5 days
026 189-0529 Spacer $7.67 2 usually ships 1-5 days
027 189-1364 Screw Call for price 1 usually ships 1-5 days
029 189-1393 Washer $4.75 2 usually ships 1-5 days
030 189-1394 Washer D13 $5.74 2 usually ships 1-5 days
031 189-0223 Rubber shim $7.63 2 usually ships 1-5 days
032 189-0224 Bracket $61.25 2 usually ships 1-5 days
033 203-2355 Plate (OBSOLETE) Call for price 1 usually ships 1-5 days
034b 189-0534 Connector $5.50 1 usually ships 1-5 days
034c 189-2002 Battery charger connector $25.59 1 usually ships 4-7 days
034d 203-2359 Motor coal (OBSOLETE) Call for price 2 usually ships 1-5 days
