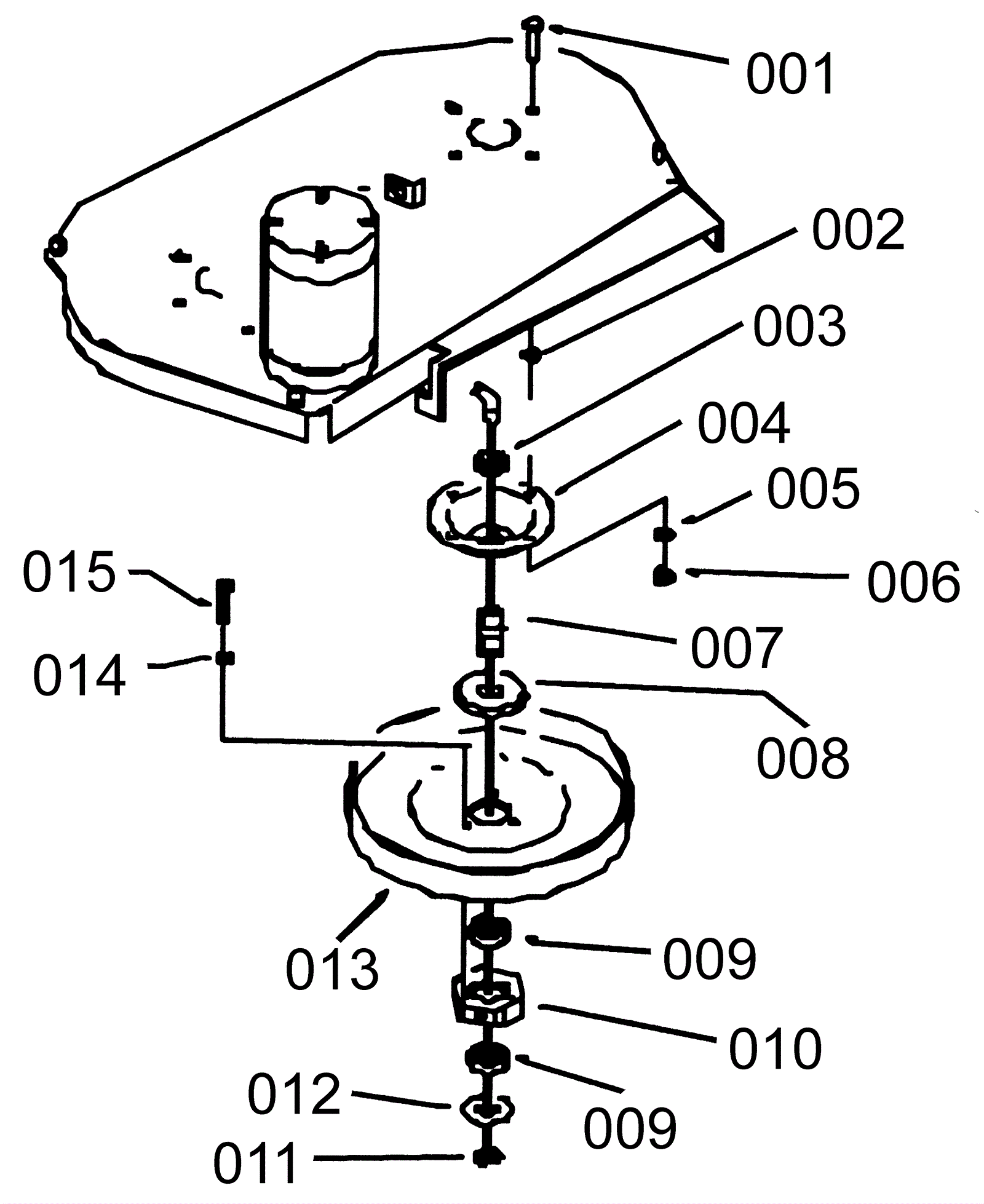

BOXER36 Axle Pulley Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1428 Screw M8 $0.99 8 usually ships 1-5 days
003 189-1429 Nut $21.31 2 usually ships 15-24 days
004 189-0156 Flange $96.28 2 usually ships 15-24 days
005 189-1363 Washer $5.19 8 usually ships 1-5 days
007 189-0492 Hexagon pin $150.56 2 usually ships 1-5 days
008 189-0207 Guard $10.35 2 usually ships 1-5 days
009 203-0715 Bearing $84.87 4 usually ships 15-24 days
010 189-0493 Hexagon aluminum assembly $167.16 2 usually ships 1-5 days
011 189-0093 Snap Ring $4.80 2 usually ships 15-24 days
012 189-0209 Guard $21.19 2 usually ships 15-24 days
013 189-0494 Pulley $562.29 2 usually ships 1-5 days
014 189-1345 Washer d10 cham $5.19 6 usually ships 1-5 days
015 189-1452 Screw M5-16 zinc plated $5.19 6 usually ships 1-5 days
