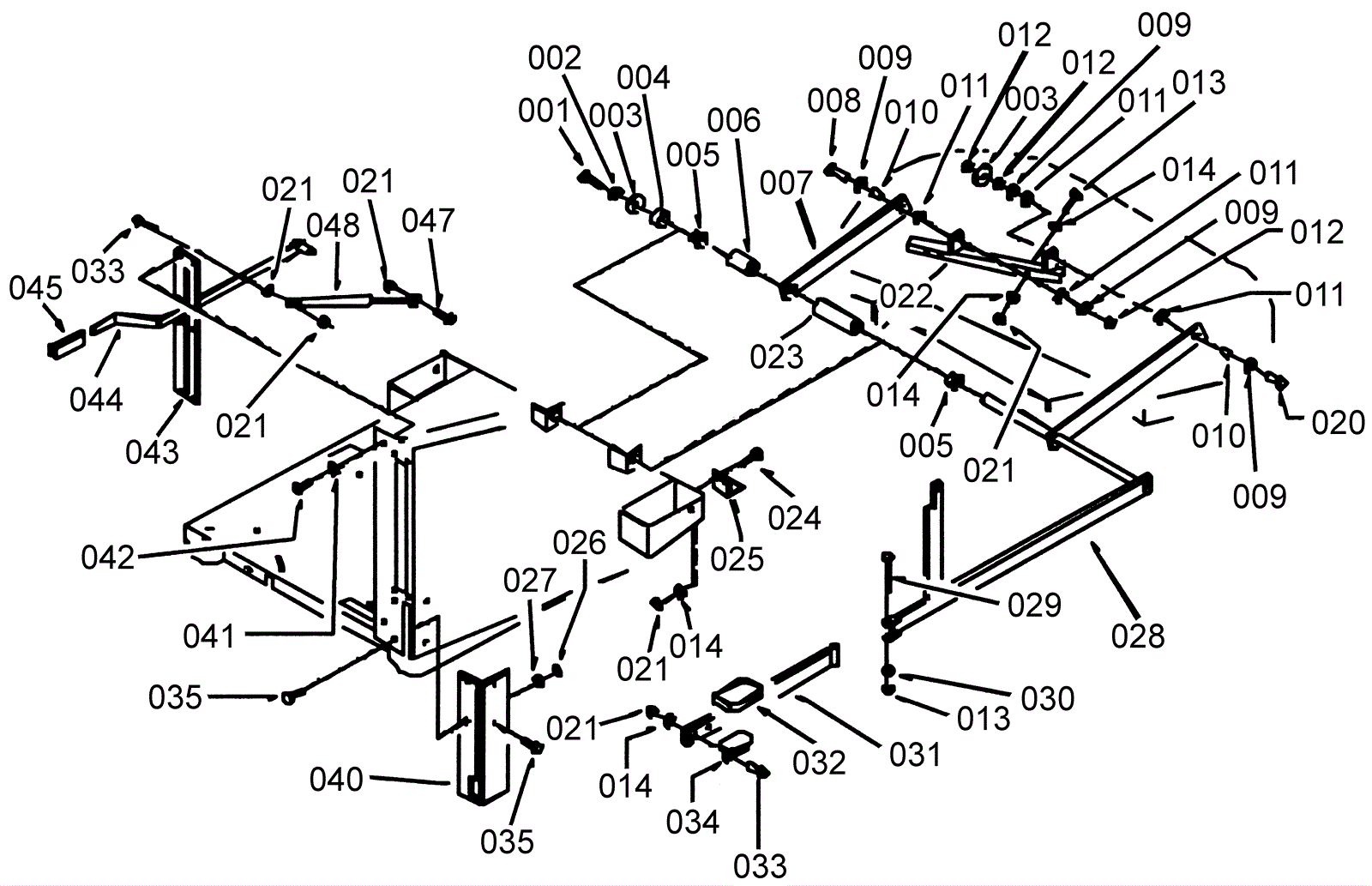

BOXER36 Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated $3.60 1 ships same day
002 189-1398 Washer 6 x 24 inch $2.79 1 usually ships 10-12 days
003 189-1532 Washer D10 $2.79 2 usually ships 1-5 days
004 203-2321 Spacer (OBSOLETE) Call for price 1 usually ships 1-5 days
005 189-0273 Bearing $19.01 2 usually ships 10-12 days
006 203-2322 Spacer (OBSOLETE) Call for price 1 usually ships 1-5 days
007 203-2323 Arm (OBSOLETE) Call for price 1 usually ships 1-5 days
008 203-2324 Screw $2.13 1 usually ships 1-5 days
009 189-1378 Washer $4.84 4 usually ships 1-5 days
010 189-0059 Spacer $3.52 2 usually ships 1-5 days
011 189-0223 Rubber shim $7.79 4 usually ships 1-5 days
013 189-1483 Screw 6 x 40 inch $0.99 4 usually ships 1-5 days
021 203-0524 Nut M6 lock $5.50 11 usually ships 1-5 days
022 203-2325 Joint $106.77 1 usually ships 1-5 days
023 203-2326 Spacer (OBSOLETE) Call for price 1 usually ships 1-5 days
024 189-1424 Screw $4.82 2 usually ships 1-5 days
025 203-2327 Support (OBSOLETE) Call for price 1 usually ships 1-5 days
026 189-1384 Nut M4 $0.99 4 usually ships 10-12 days
027 203-0145 Washer 4-16 inch $2.79 4 usually ships 10-12 days
028 203-2328 Lever $252.77 1 usually ships 1-5 days
029 189-1370 Screw $4.86 1 usually ships 1-5 days
030 189-1363 Washer $4.84 1 usually ships 1-5 days
031 203-2329 Rod (OBSOLETE) $103.66 1 usually ships 1-5 days
032 189-0233 Rubber shim $34.78 1 usually ships 1-5 days
034 189-0913 Pedal $43.12 1 usually ships 1-5 days
035 203-2331 Screw (OBSOLETE) Call for price 4 usually ships 1-5 days
040 203-2332 Head fastener (OBSOLETE) $118.33 1 usually ships 1-5 days
041 189-1386 Washer $2.05 6 usually ships 1-5 days
042 189-1465 Screw $3.94 6 usually ships 10-12 days
043 203-2335 Mask (OBSOLETE) Call for price 1 usually ships 1-5 days
044 203-2336 Rod (OBSOLETE) $158.88 1 usually ships 1-5 days
045 203-0522 Handle $11.87 1 usually ships 1-5 days
046 189-2415 Spring $241.09 1 usually ships 1-5 days
047 203-2337 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
