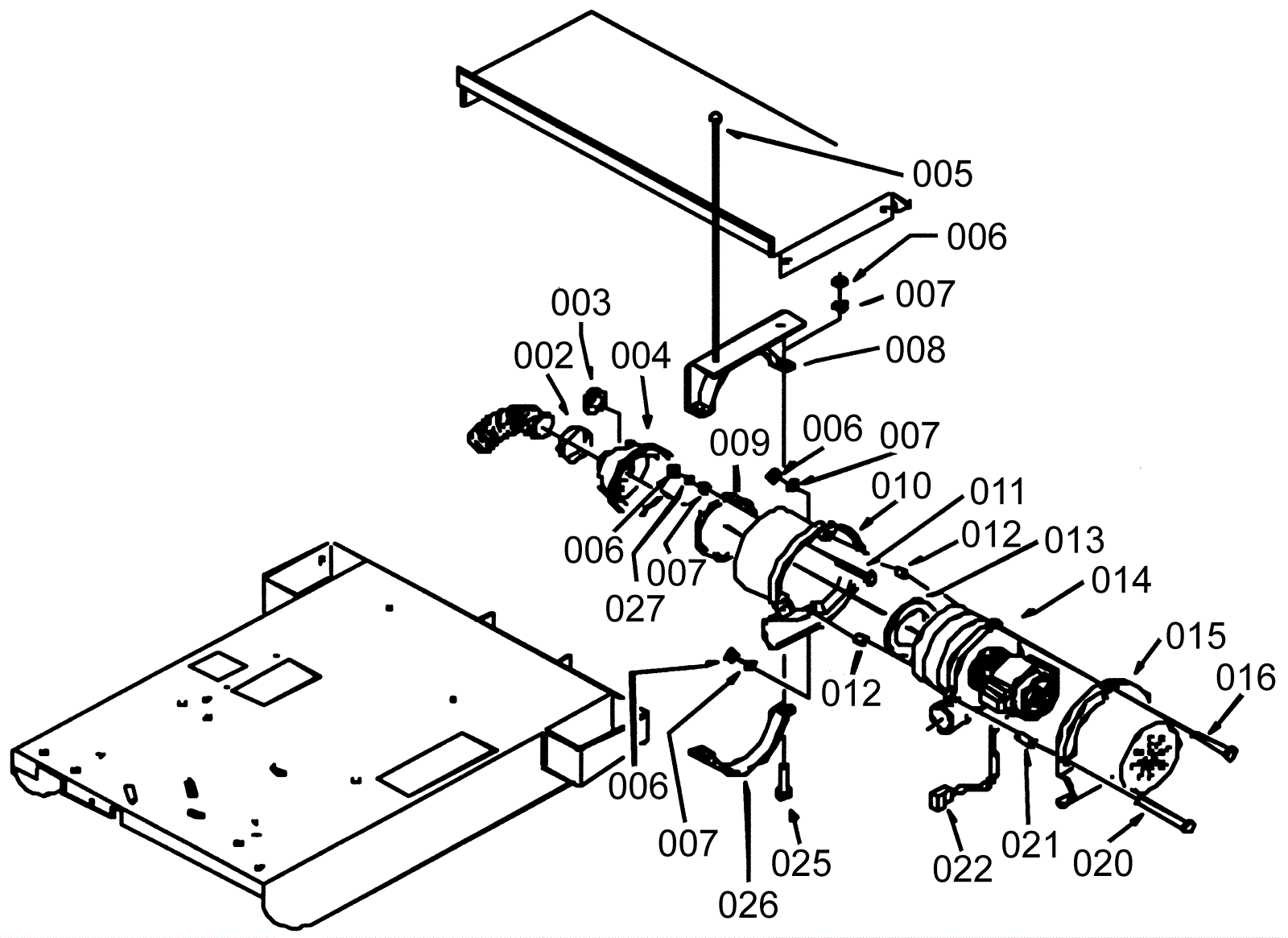

BOXER36 Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
002 189-0123 Clamp 35-40 inch $1.06 1 usually ships 10-12 days
003 189-0128 Knob $1.78 2 usually ships 1-5 days
004 203-2308 Vac motor cover $398.73 1 usually ships 1-5 days
005 189-1540 Screw $3.94 4 usually ships 1-5 days
006 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 7 ships same day
008 203-2309 Bracket (OBSOLETE) Call for price 1 usually ships 1-5 days
009 203-2310 Gasket (OBSOLETE) Call for price 1 in (Cut to size) usually ships 1-5 days
010 203-2311 Cover $148.26 1 usually ships 10-12 days
011 189-1509 Screw M6 $3.94 2 usually ships 10-12 days
012 189-0059 Spacer $3.52 3 usually ships 1-5 days
013 203-2313 Gasket $18.69 1 usually ships 1-5 days
014 203-2314 Vac motor $487.41 1 usually ships 1-5 days
015 203-2315 Upper cover $148.26 1 usually ships 1-5 days
016 203-2316 Screw (OBSOLETE) Call for price 2 usually ships 1-5 days
020 203-2317 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
021 203-2318 Bearing (OBSOLETE) Call for price 3 usually ships 1-5 days
022 203-2319 Wiring (OBSOLETE) Call for price 1 usually ships 1-5 days
025 999-9108 Screw M6-1 x 30mm hex head stainless steel $0.99 2 ships same day
026 203-2320 Strip (OBSOLETE) Call for price 1 usually ships 1-5 days
027 189-1477 Washer cham $4.84 2 usually ships 10-12 days
