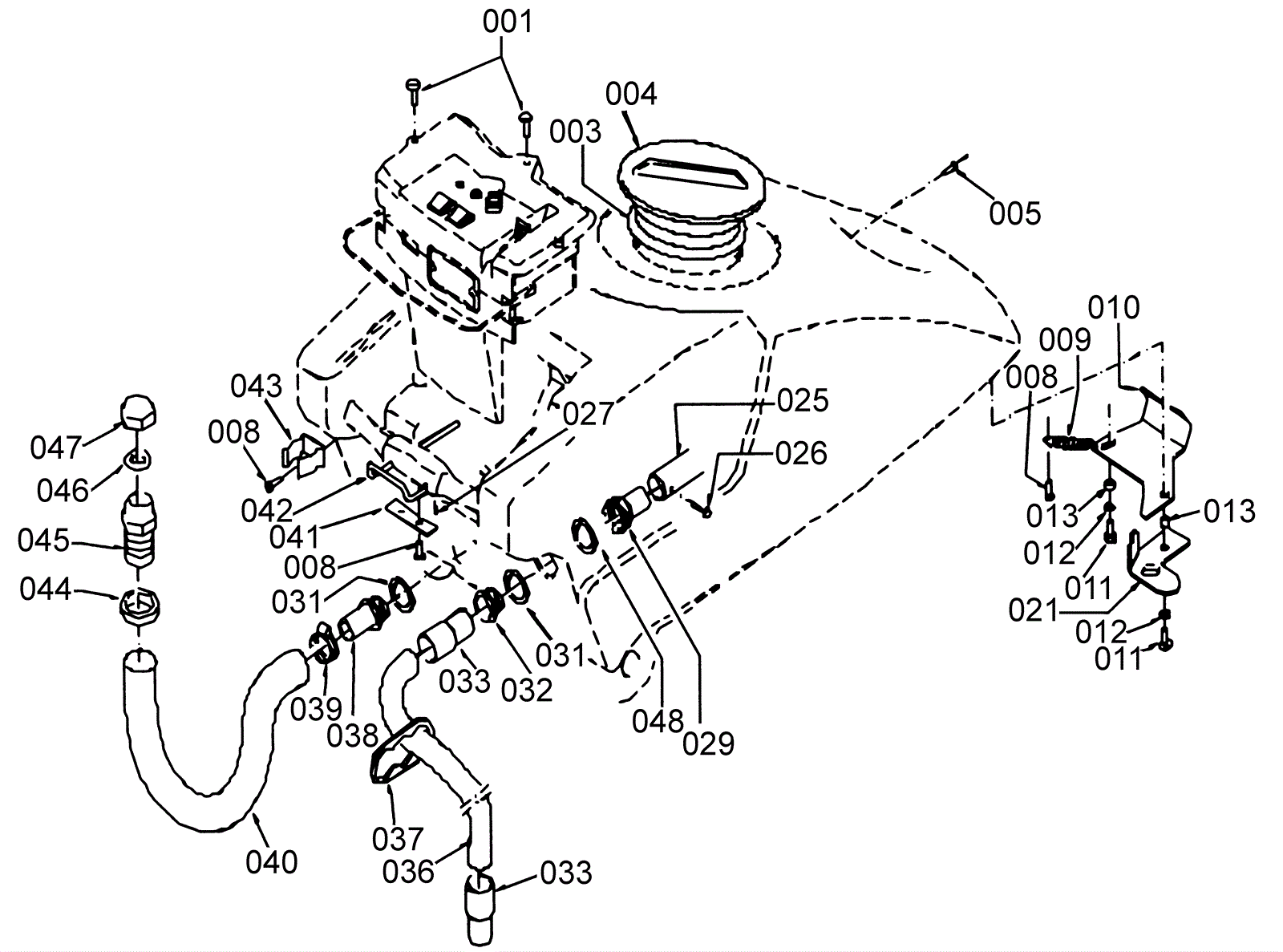

Recovery Tank

#PartDescription ReqNotesAvailability
001 189-1638 Screw 6 x 20 inch 3
005 189-2230 Screw M6 2
008 375-9544 Screw 5 x 12 5
009 189-2246 Spring 1
010 189-2231 Coupling 1
011 189-2232 Screw M8 2
012 189-0897 Washer D8 2
013 189-0095 Bushing 2
021 189-2256 Plaque 1
025 189-2257 Pipe 1
026 189-1451 Screw 1
027 189-1634 Screw 4 x 8 inch 1
029 203-0810 Connector 1
031 203-0812 Gasket 2
032 203-0813 Suction opening 1
033 189-0118 Sleeve 2
036 203-0815 Hose 1
037 189-0295 Plaque 1
038 189-0693 Hose holder 1
039 189-2258 Clamp 1
040 189-2259 Tube 1
041 189-2260 Plaque 1
042 189-2261 Push-button 1
043 189-0239 Ductlock 1
044 189-2262 Nut 1
045 189-2263 Connector 1
046 203-4140 Gasket 1
047 203-1689 Cap 1
