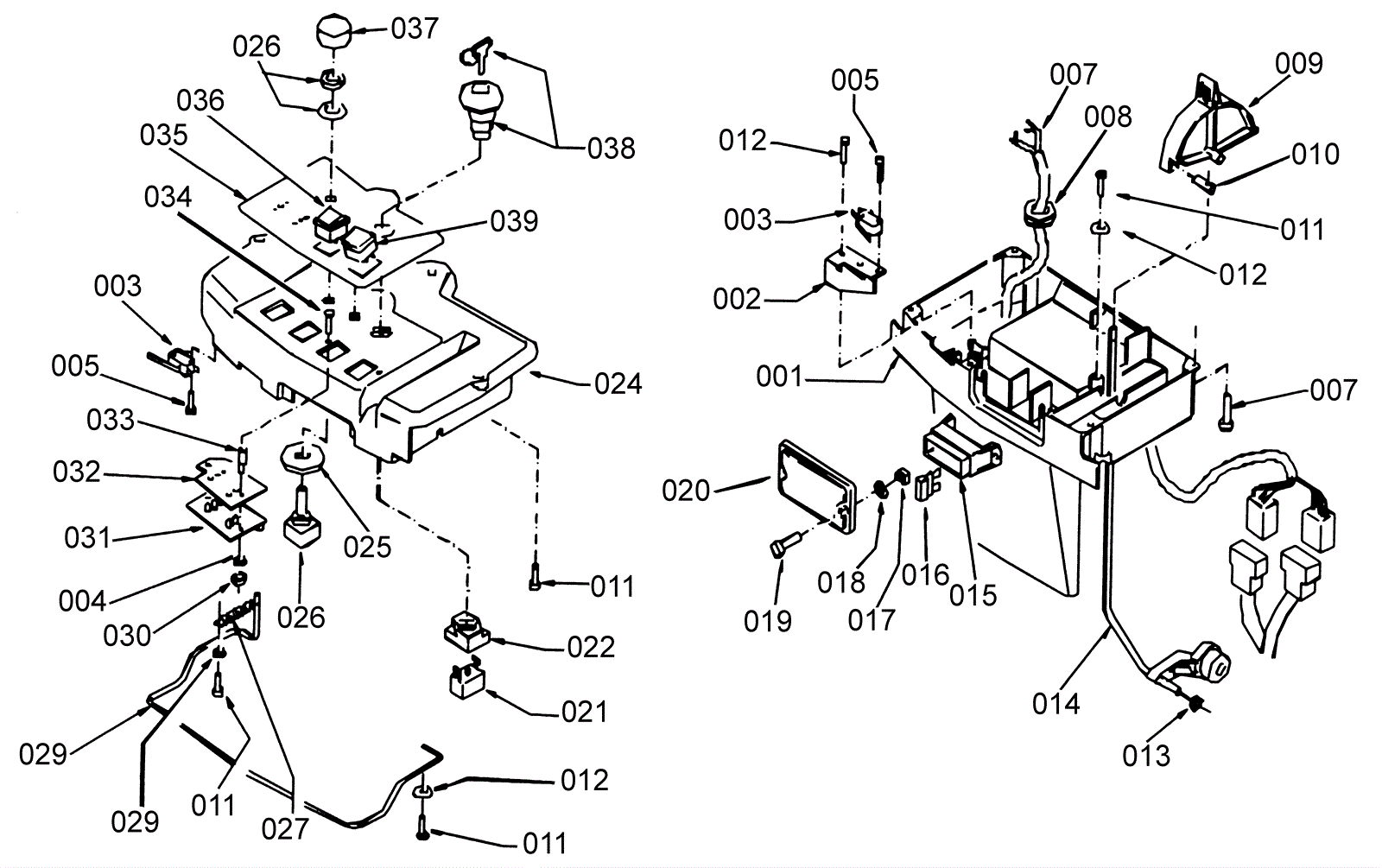

PERFORMER28 Control Panel

#PartDescriptionPriceReqNotesAvailability
000 203-1856 Preassembled control panel (OBSOLETE) $1,043.53 1 usually ships 1-5 days
001 203-1056 Control panel (OBSOLETE) Call for price 1 usually ships 1-5 days
002 189-2240 Spring $100.08 1 usually ships 1-5 days
003 203-1058 Microswitch $24.65 3 usually ships 1-5 days
004 189-2241 Washer D3 $5.19 2 usually ships 1-5 days
005 189-1640 Screw $5.19 6 usually ships 1-5 days
006 189-1624 Screw 3 1/2 x 16 inch $4.25 6 usually ships 1-5 days
007 189-2242 Wiring $219.12 1 usually ships 10-12 days
008 189-1133 Fairlead $5.17 1 usually ships 1-5 days
009 189-0288 Lever $41.88 1 usually ships 1-5 days
010 189-0289 Solution rod $33.40 1 usually ships 1-5 days
011 189-2243 5-10 inch M. 3 screw $4.25 4 usually ships 1-5 days
012 203-0598 Washer (OBSOLETE) $0.99 2 usually ships 1-5 days
013 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
014 189-2244 Rod $283.59 1 usually ships 1-5 days
015 189-0659 Fuse holders $59.55 1 usually ships 1-5 days
016 189-0107 5 amp fuse $25.42 3 usually ships 1-5 days
017 189-1637 Nut M6 $6.23 2 usually ships 1-5 days
018 189-0755 Gasket $6.18 4 usually ships 1-5 days
019 189-1638 Screw 6 x 20 inch $6.26 2 usually ships 1-5 days
020 189-0834 Lid $18.67 1 usually ships 10-12 days
021 189-0264 Key switch complete $75.80 1 usually ships 10-12 days
022 189-0264 Key switch complete $75.80 1 usually ships 10-12 days
024 203-0784 Upper control panel $304.67 1 usually ships 1-5 days
026 189-0259 Potentiometer (OBSOLETE) $114.69 1 usually ships 10-12 days
027 189-2246 Spring $10.15 1 usually ships 1-5 days
028 189-1375 Washer D4 $3.10 1 usually ships 1-5 days
029 189-2247 Lever $489.01 1 usually ships 1-5 days
030 189-1446 Nut M3 $3.61 2 usually ships 1-5 days
031 189-2248 Board $164.97 1 usually ships 1-5 days
032 203-3344 Plate $16.64 1 usually ships 1-5 days
033 189-2250 Spacer $5.30 2 usually ships 1-5 days
034 189-2251 Screw 3 x 6 inch $5.19 2 usually ships 1-5 days
035 203-4312 Control panel decal $41.88 1 usually ships 1-5 days
036 189-2223 Switch $24.65 1 usually ships 10-12 days
037 189-0260 Knob $71.24 1 usually ships 1-5 days
038 189-0264 Key switch complete $75.80 1 usually ships 10-12 days
039 203-3345 Push button $18.37 1 usually ships 1-5 days
