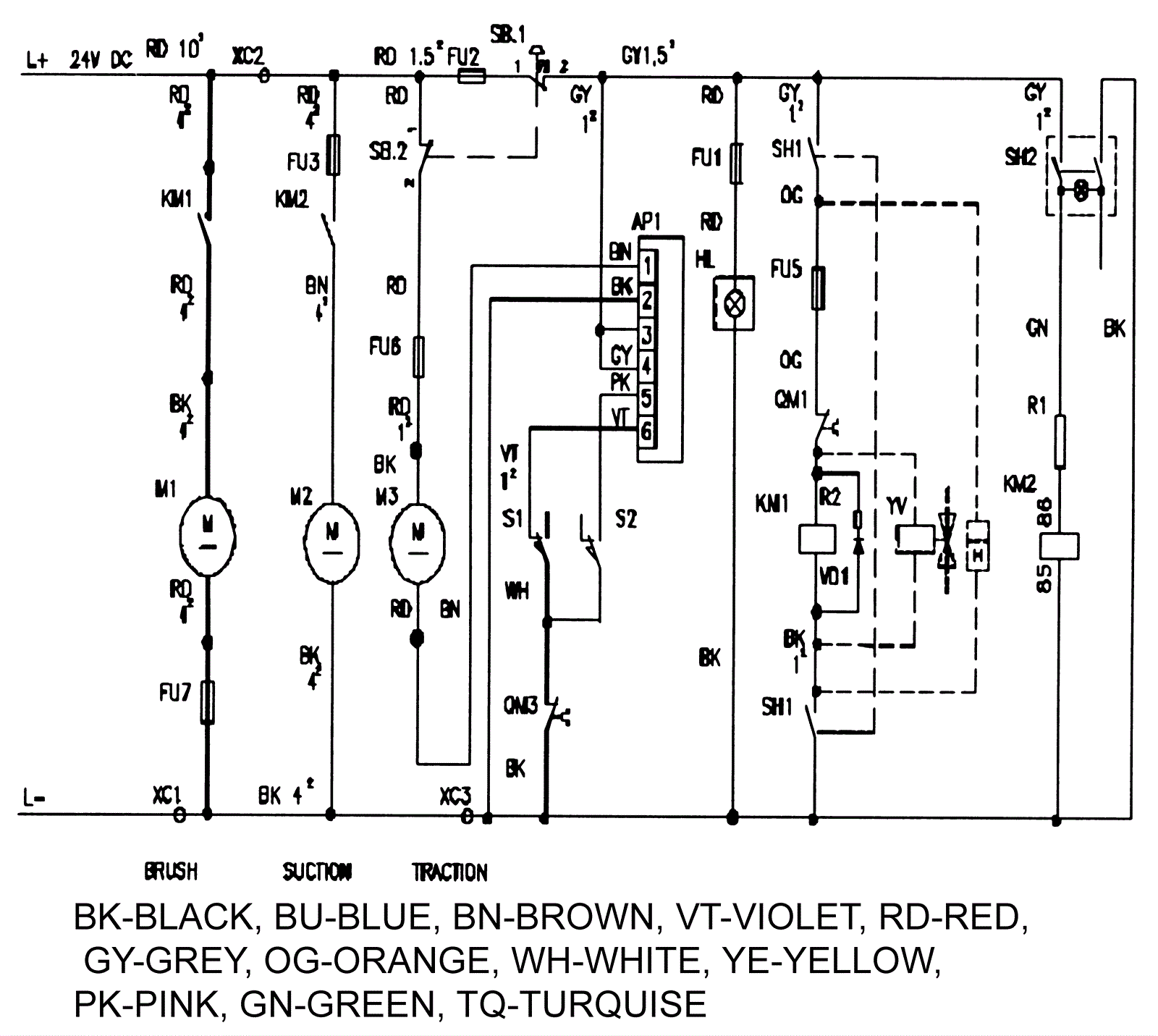

Electrical Schematic

#PartDescription ReqNotesAvailability
AP1 203-0961 Gearcase/board
FU1 189-0107 5 amp fuse
FU2 203-3133 30amp fuse
FU3 203-3133 30amp fuse
FU5 189-0107 5 amp fuse
FU6 203-3133 30amp fuse
FU7 203-0926 Fuse
H 203-1054 Hour meter (OBSOLETE)
HL 189-0832 Circuit board
KM1 189-0105 Relay
KM2 203-0782 Relay
M1 189-0155 Motor
M2 203-0804 Motor
M3 189-3048 Drive motor shaft
R1 203-0945 Resistance
R2 203-1049 Resistance (OBSOLETE)
S1 189-0258 Microswitch
S2 189-0258 Microswitch
SH1 203-0698 Lighted switch
SH2 203-0698 Lighted switch
VD1 203-1050 Diode
XC1 203-0882 Support (OBSOLETE)
XC2 203-0947 Clamp
XC3 203-0947 Clamp
YV 203-1055 Electrovalve (OBSOLETE)
