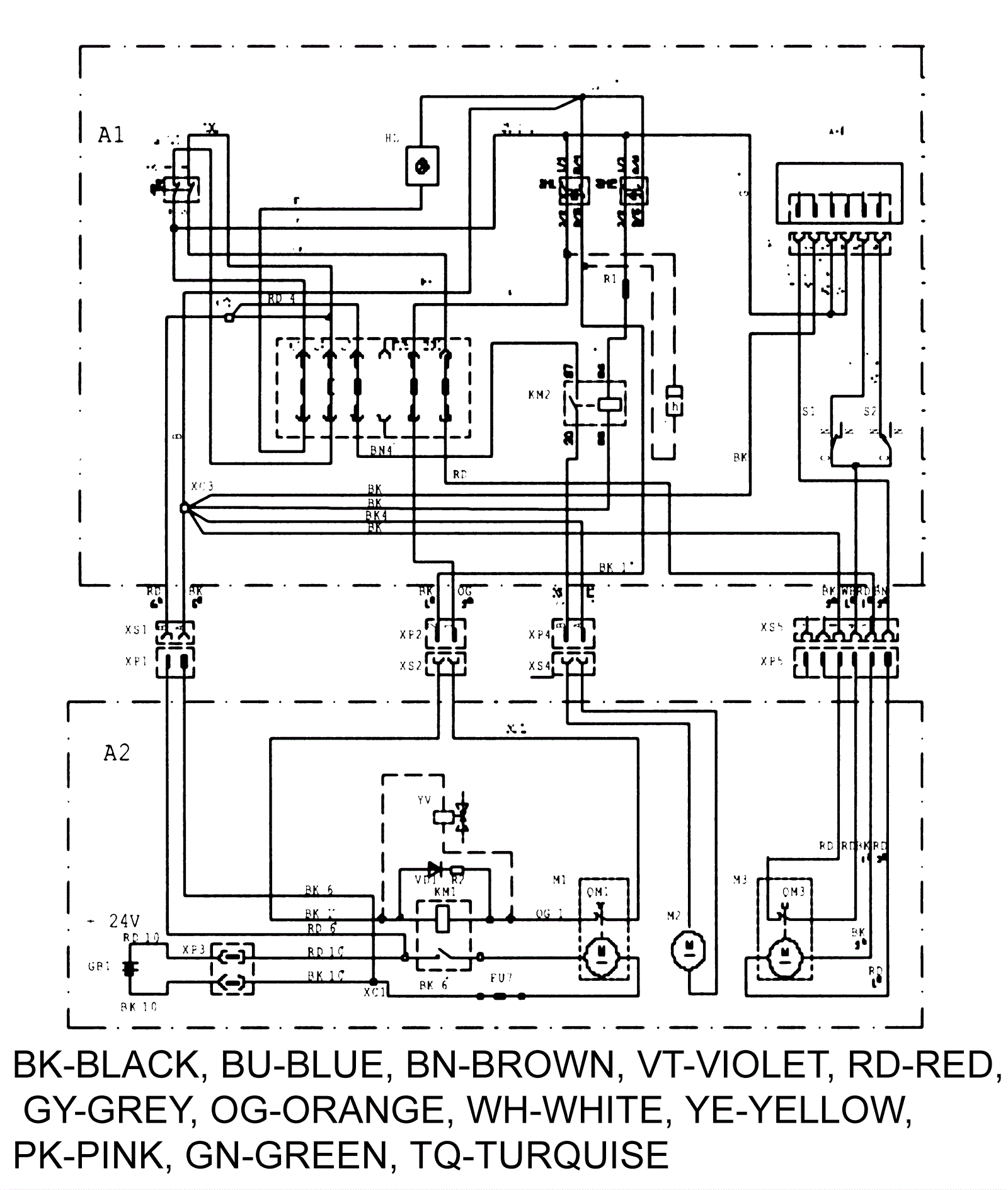

SK24 Electrical Wiring

#PartDescriptionPriceReqNotesAvailability
AP1 203-0961 Gearcase/board $528.21 usually ships 1-5 days
FU1 189-0107 5 amp fuse $4.62 usually ships 1-5 days
FU2 203-3133 30amp fuse $2.34 usually ships 1-5 days
FU3 203-3133 30amp fuse $2.34 usually ships 1-5 days
FU5 189-0107 5 amp fuse $4.62 usually ships 1-5 days
FU6 203-3133 30amp fuse $2.34 usually ships 1-5 days
FU7 203-0926 Fuse $5.50 usually ships 5-15 days
H 203-1054 Hour meter (OBSOLETE) Call for price usually ships 1-5 days
HL 189-0832 Circuit board $95.82 usually ships 5-15 days
KM1 189-0105 Relay $196.79 usually ships 5-15 days
KM2 203-0782 Relay $86.38 usually ships 1-5 days
M1 203-0858 Motor $2,229.93 usually ships 1-5 days
M2 203-0804 Motor $718.99 usually ships 1-5 days
M3 189-3048 Drive motor shaft $2,443.97 usually ships 1-5 days
N/S 203-0928 Wiring $235.65 cable to the charger usually ships 1-5 days
N/S 203-0929 Wiring $111.58 cable to the motor usually ships 1-5 days
R1 203-0945 Resistance $105.37 usually ships 1-5 days
R2 203-1049 Resistance (OBSOLETE) Call for price usually ships 1-5 days
S1 189-0258 Microswitch $18.94 usually ships 5-15 days
S2 189-0258 Microswitch $18.94 usually ships 5-15 days
SH1 203-0698 Lighted switch $34.02 usually ships 5-15 days
SH2 203-0698 Lighted switch $34.02 usually ships 5-15 days
VD1 203-1050 Diode $5.74 usually ships 1-5 days
XC1 203-0882 Support (OBSOLETE) $23.64 usually ships 1-5 days
XC2 203-0947 Clamp $2.06 usually ships 1-5 days
XC3 203-0947 Clamp $2.06 usually ships 1-5 days
XP1 203-0948 Connector $33.50 usually ships 1-5 days
XP2 203-0949 Connector $46.95 usually ships 1-5 days
XP3 203-4166 50amp charger plug (red) $56.50 usually ships 5-15 days
XP4 203-0948 Connector $33.50 usually ships 1-5 days
XP5 203-1051 Connector (OBSOLETE) Call for price usually ships 1-5 days
XS1 203-0951 Connector $34.02 usually ships 1-5 days
XS2 203-0952 Connector $34.02 usually ships 1-5 days
XS4 203-0951 Connector $34.02 usually ships 1-5 days
XS5 203-1052 Connector (OBSOLETE) Call for price usually ships 1-5 days
XS6 203-1053 Connector (OBSOLETE) $13.81 usually ships 1-5 days
YV 203-1055 Electrovalve (OBSOLETE) Call for price usually ships 1-5 days
