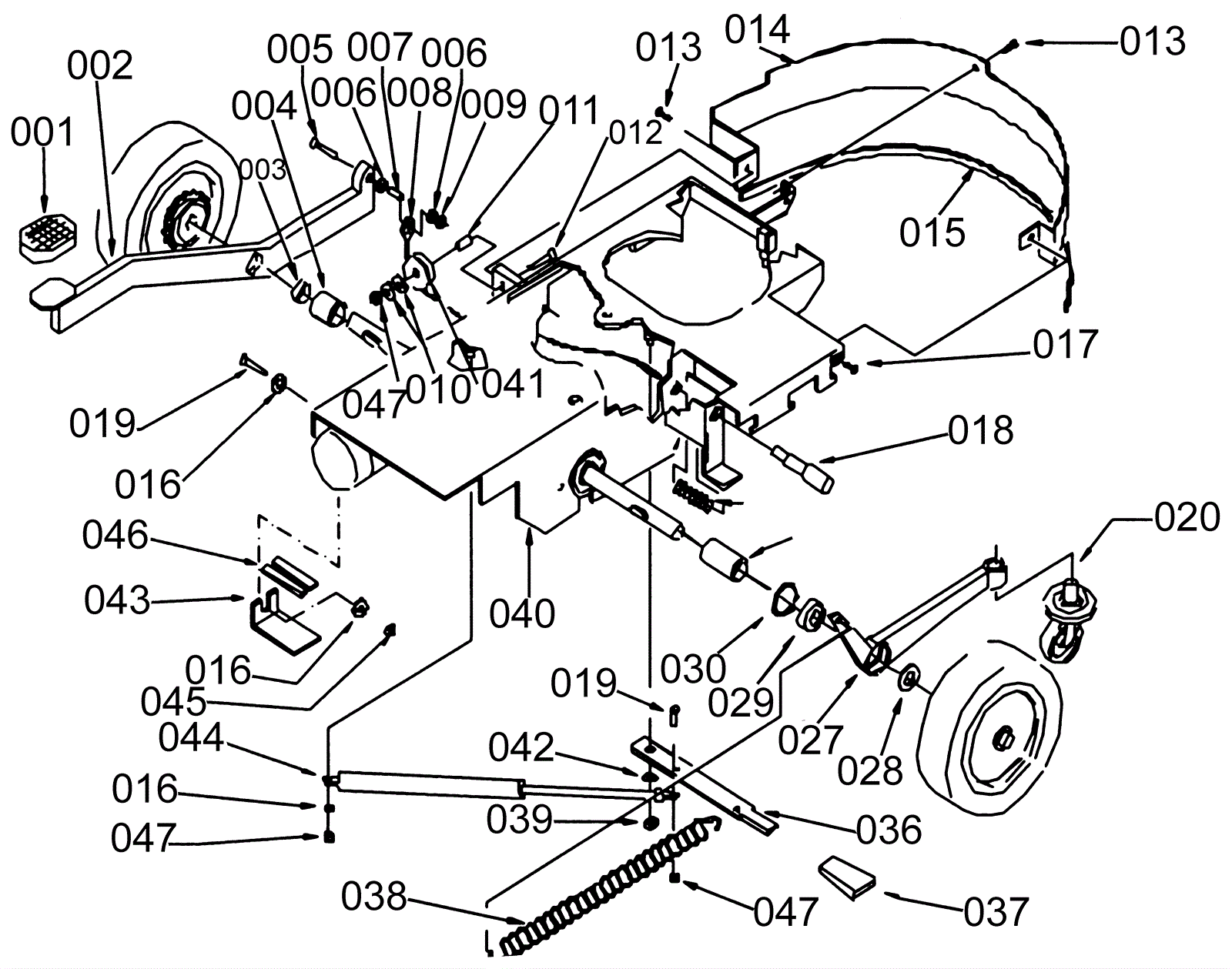

SK24 Frame - Transport System

#PartDescriptionPriceReqNotesAvailability
001 189-0301 Front pedal pad $12.99 1 usually ships 5-15 days
002 189-2396 Pedal $336.93 1 usually ships 1-5 days
003 189-2397 Bearing $14.81 1 usually ships 1-5 days
004 189-2398 Spacer $30.62 1 usually ships 1-5 days
005 203-1004 Screw $4.64 1 usually ships 1-5 days
006 189-1353 Washer D5 $4.75 2 usually ships 1-5 days
007 203-1005 Spacer $15.25 1 usually ships 1-5 days
008 189-2400 Cable $50.11 1 usually ships 5-15 days
009 203-0789 Nut $3.30 1 usually ships 5-15 days
010 189-1393 Washer $4.75 2 usually ships 1-5 days
011 189-0918 Bearing $5.83 1 usually ships 1-5 days
012 189-1421 Screw $4.64 1 usually ships 1-5 days
013 189-1376 Screw 4 x 10 inch $0.99 2 usually ships 5-15 days
014 189-2401 Bulkhead $151.77 1 usually ships 1-5 days
015 189-2402 Outline $11.58 1 usually ships 1-5 days
017 189-1352 Screw $4.77 1 usually ships 5-15 days
018 189-2403 Pin $156.98 1 usually ships 1-5 days
019 189-1497 Screw 6 x 16 inch $3.85 2 usually ships 5-15 days
020 189-2404 Wheel $355.44 1 usually ships 1-5 days
024 189-2405 Spring $18.94 1 usually ships 1-5 days
025 189-2406 Spacer $34.72 1 usually ships 1-5 days
027 189-2407 Support $363.23 1 usually ships 1-5 days
028 189-1481 Washer $4.60 2 usually ships 1-5 days
029 189-2408 Bearing $33.46 1 usually ships 1-5 days
030 189-2409 Seeger $5.74 1 usually ships 1-5 days
037 189-2411 Handgrip $15.31 1 usually ships 1-5 days
038 189-2412 Spring $59.97 1 usually ships 1-5 days
041 189-2414 Pulley $80.43 1 usually ships 1-5 days
042 189-0897 Washer D8 $1.10 1 usually ships 5-15 days
043 203-1023 Support $23.01 1 usually ships 1-5 days
044 189-2415 Spring $236.36 1 usually ships 1-5 days
045 203-0524 Nut M6 lock $5.50 1 usually ships 1-5 days
046 203-1025 Soft gasket $9.17 2 usually ships 1-5 days
047 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 3 ships same day
