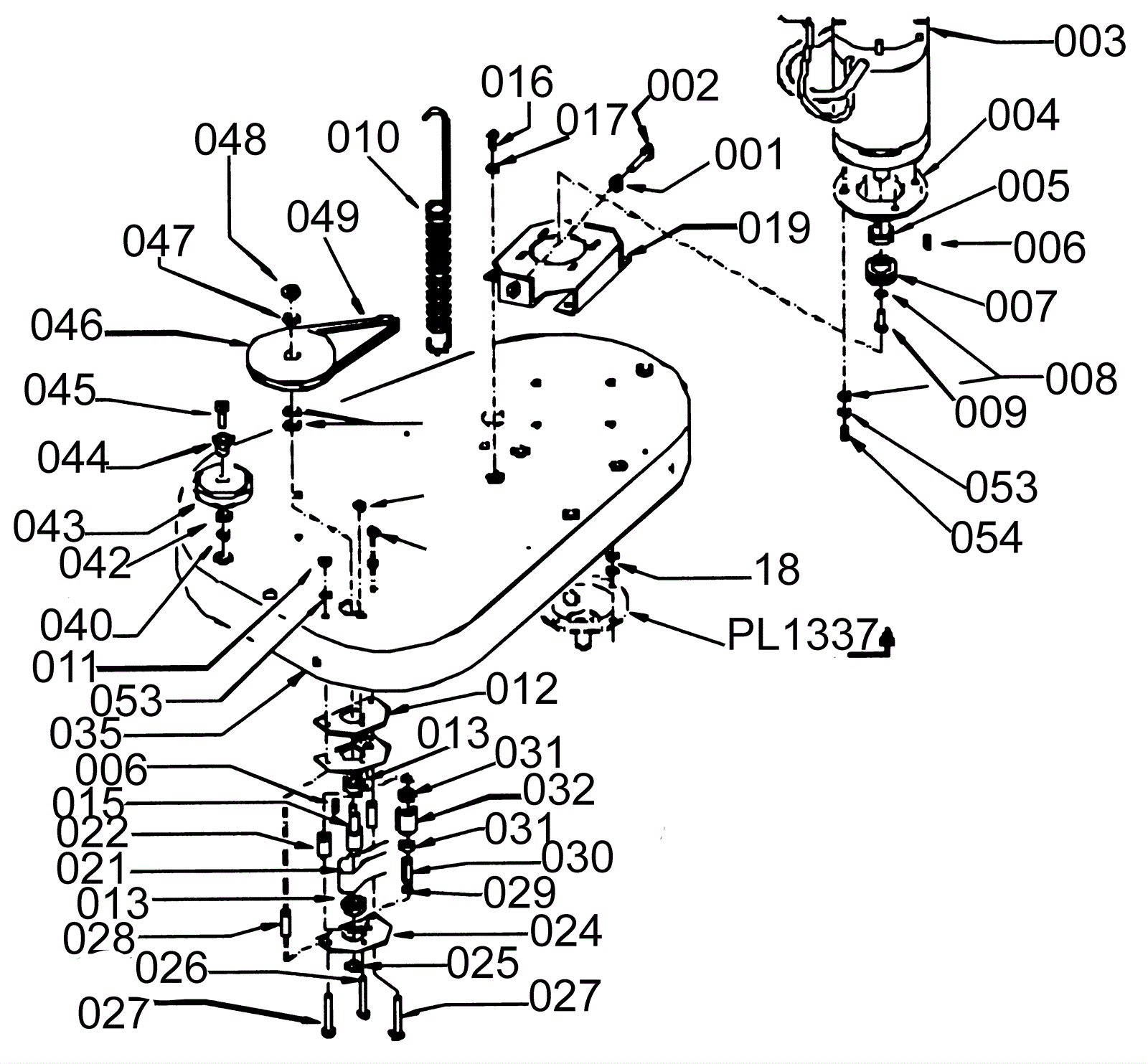

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-1379
|
Nut M8 |
1 |
|
|
002 |
189-1373
|
Screw 8 x 45 inch |
1 |
|
|
003 |
189-0155
|
Motor |
1 |
|
|
004 |
203-0857
|
Flange |
1 |
|
|
005 |
189-2435
|
Spacer |
1 |
|
|
006 |
203-2062
|
Key 5x5x20 |
2 |
|
|
007 |
189-0850
|
Pulley |
1 |
|
|
008 |
189-1391
|
Washer D6 |
5 |
|
|
009 |
189-1497
|
Screw 6 x 16 inch |
1 |
|
|
010 |
189-0556
|
Spring |
1 |
|
|
011 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
012 |
189-2437
|
Gasket |
1 |
|
|
013 |
189-0150
|
Bearing |
2 |
|
|
014 |
189-1489
|
Nut M6 |
1 |
|
|
016 |
189-2439
|
Screw |
4 |
|
|
017 |
203-0971
|
Washer D6 |
4 |
|
|
019 |
189-2440
|
Support |
1 |
|
|
021 |
203-0973
|
Belt |
1 |
|
|
024 |
203-0975
|
Plate |
2 |
|
|
025 |
189-0149
|
Ring |
1 |
|
|
026 |
189-1488
|
Screw M6 |
1 |
|
|
027 |
189-1539
|
Screw |
2 |
|
|
028 |
189-0147
|
Bearing |
2 |
|
|
029 |
189-0081
|
Ring |
2 |
|
|
030 |
189-0148
|
Pin/plug |
1 |
|
|
031 |
203-3263
|
Bearing |
2 |
|
|
032 |
189-0146
|
Pulley |
1 |
|
|
035 |
203-0976
|
Head (OBSOLETE) |
1 |
|
|
040 |
189-1492
|
Nut M8 |
3 |
|
|
042 |
375-9615
|
Washer D. 8 x 24 inox |
3 |
|
|
043 |
189-0060
|
Wheel |
3 |
|
|
044 |
189-0901
|
Bushing |
3 |
|
|
045 |
203-0182
|
Screw M8 |
3 |
|
|
046 |
189-2444
|
Pulley |
1 |
|
|
049 |
189-2445
|
Belt |
1 |
|
|
051 |
189-1481
|
Washer |
2 |
|
|
053 |
189-1477
|
Washer cham |
8 |
|
|
054 |
203-4992
|
Screw |
4 |
|
|
