RELIABLE20B

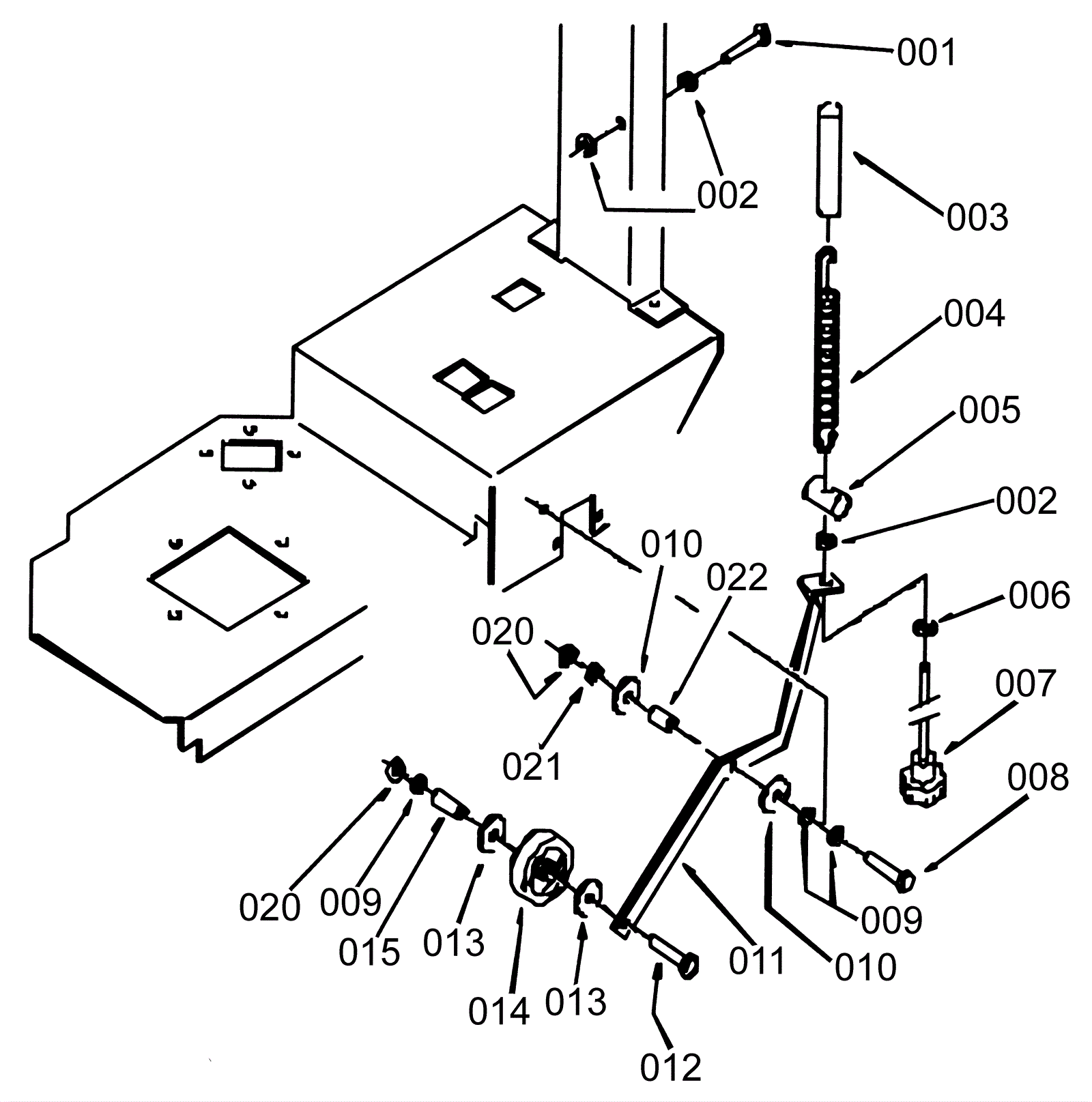

Pressure Wheel
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
001
189-1390
Screw
$4.40
1
usually ships 1-5 days
002
189-1489
Nut M6
$4.77
3
usually ships 1-5 days
003
203-0650
Sheath
$5.81
1
usually ships 1-5 days
004
189-0166
Spring
$14.96
1
usually ships 1-5 days
005
189-1515
Spring coupling
$23.01
1
usually ships 1-5 days
006
189-1391
Washer D6
$3.16
1
usually ships 5-15 days
007
189-1516
Knob
$37.46
1
usually ships 1-5 days
008
189-1344
Screw M8
$5.74
1
usually ships 5-15 days
009
189-0897
Washer D8
$1.10
3
usually ships 5-15 days
010
189-1517
Washer
$4.75
2
usually ships 1-5 days
011
203-0655
Lever (OBSOLETE)
Call for price
1
usually ships 1-5 days
012
189-1370
Screw
$4.77
1
usually ships 1-5 days
013
203-0656
Washer (OBSOLETE)
Call for price
2
usually ships 1-5 days
014
203-0657
Wheel (OBSOLETE)
Call for price
1
usually ships 1-5 days
015
203-0658
Pin (OBSOLETE)
Call for price
1
usually ships 1-5 days
021
189-1492
Nut M8
$0.99
1
usually ships 5-15 days
022
189-0168
Bushing
$4.36
1
usually ships 1-5 days
