RELIABLE20B

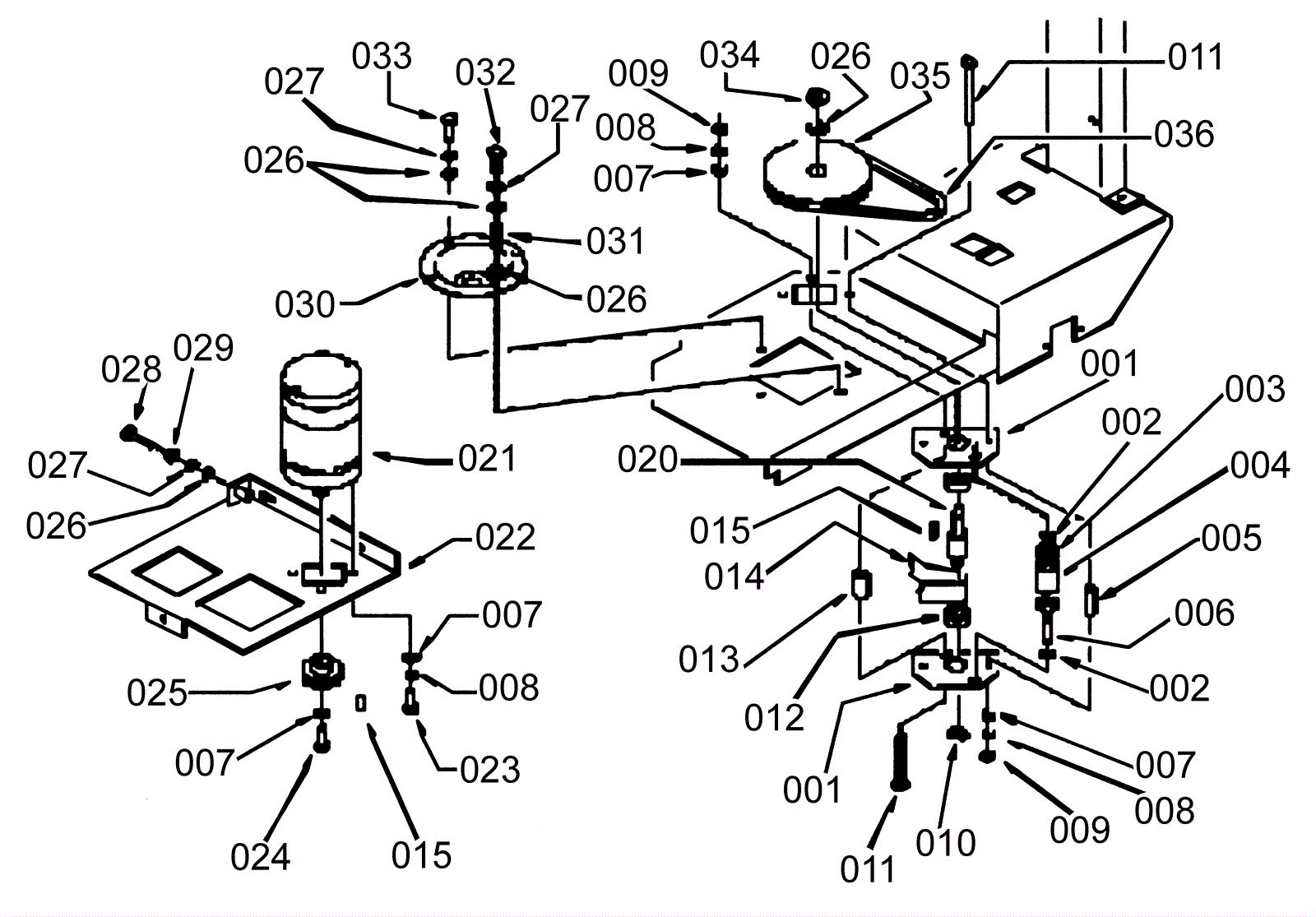

Electric Motor
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
001
189-0144
Plaque
$38.37
usually ships 1-5 days
002
189-0081
Ring
$4.75
usually ships 5-15 days
003
203-3263
Bearing
$31.44
ships same day
004
189-0146
Pulley
$36.91
usually ships 5-15 days
005
189-0147
Bearing
$9.48
usually ships 5-15 days
006
189-0148
Pin/plug
$17.11
usually ships 1-5 days
008
189-1477
Washer cham
$4.75
usually ships 5-15 days
009
189-1489
Nut M6
$4.77
usually ships 1-5 days
010
189-0149
Ring
$4.75
usually ships 1-5 days
011
189-1488
Screw M6
$5.81
usually ships 5-15 days
012
189-0150
Bearing
$33.46
usually ships 1-5 days
013
189-2442
Spacer
$17.11
usually ships 1-5 days
014
189-0152
Belt
$188.55
usually ships 5-15 days
015
203-2062
Key 5x5x20
$5.74
usually ships 5-15 days
021
189-0155
Motor
$2,178.74
usually ships 5-15 days
022
203-0731
Support (OBSOLETE)
Call for price
usually ships 1-5 days
023
189-1497
Screw 6 x 16 inch
$3.85
usually ships 5-15 days
024
189-1497
Screw 6 x 16 inch
$3.85
usually ships 5-15 days
025
189-0850
Pulley
$96.07
usually ships 1-5 days
026
189-0897
Washer D8
$1.10
usually ships 5-15 days
027
189-1511
Washer
$4.75
usually ships 5-15 days
028
189-1370
Screw
$4.77
usually ships 1-5 days
029
189-1492
Nut M8
$0.99
usually ships 5-15 days
030
189-0156
Flange
$88.22
usually ships 5-15 days
031
203-0733
Bearing (OBSOLETE)
Call for price
usually ships 1-5 days
033
189-1512
Screw 8 x 20 inch
$4.77
usually ships 5-15 days
035
189-0157
Pulley
$318.62
usually ships 1-5 days
036
189-0158
Belt
$55.62
usually ships 1-5 days
