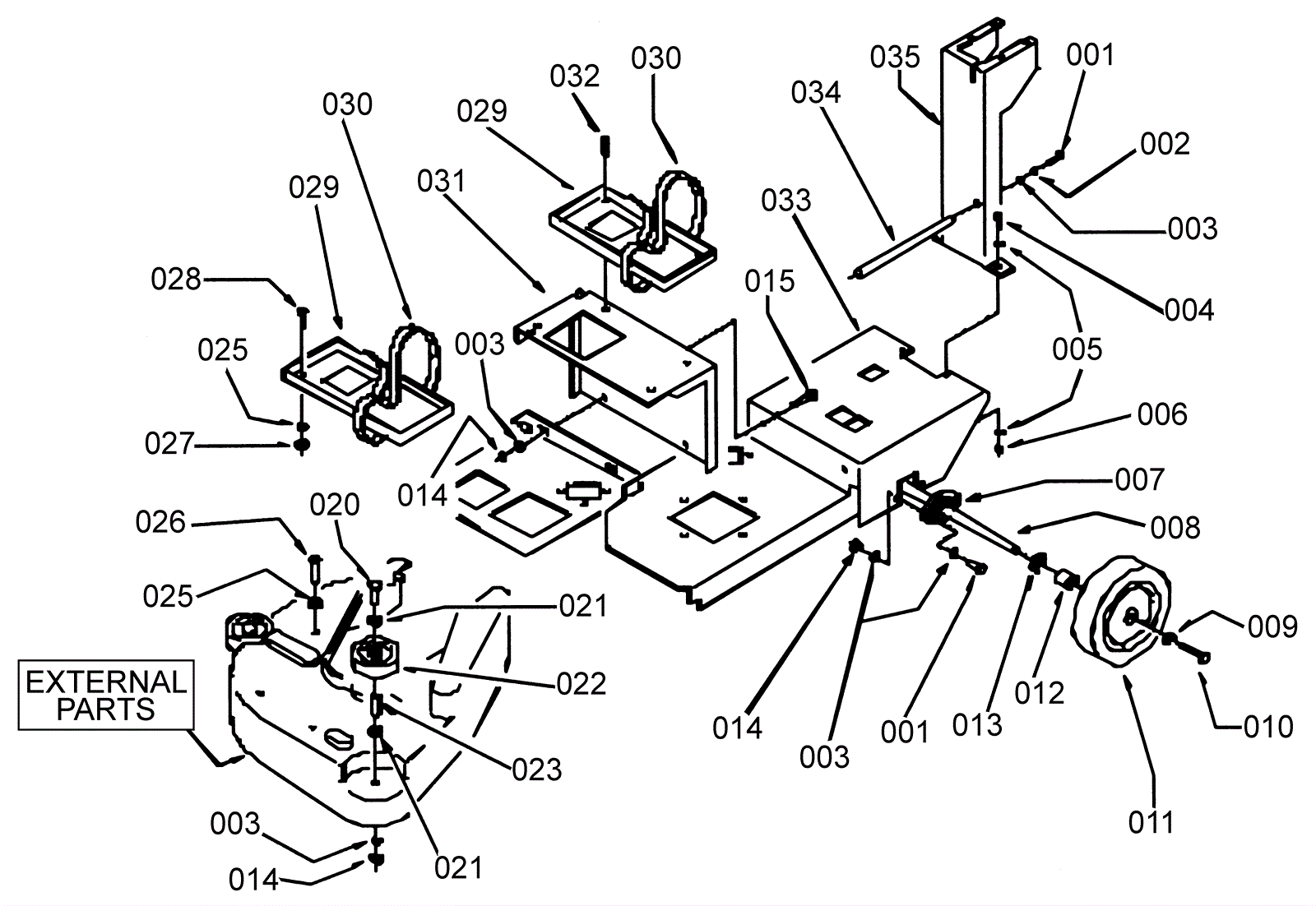

RELIABLE20B Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1390 Screw $4.40 usually ships 1-5 days
002 189-1477 Washer cham $4.84 usually ships 10-12 days
004 189-1479 Screw 8 x 25 inch $3.94 usually ships 1-5 days
005 189-1363 Washer $4.84 usually ships 1-5 days
007 203-0715 Bearing $79.31 usually ships 10-12 days
008 189-0048 Axle $91.64 usually ships 1-5 days
009 189-1400 Washer $2.79 usually ships 10-12 days
010 189-1874 Screw 8x10 $4.86 usually ships 1-5 days
012 189-0050 Bearing $4.95 usually ships 1-5 days
013 189-1481 Washer $4.69 usually ships 1-5 days
014 203-0524 Nut M6 lock $5.50 usually ships 1-5 days
015 203-0618 Screw (OBSOLETE) Call for price usually ships 1-5 days
020 189-1483 Screw 6 x 40 inch $0.99 usually ships 1-5 days
021 189-1391 Washer D6 $0.99 usually ships 10-12 days
022 189-0051 Small wheel $7.62 usually ships 1-5 days
023 189-0052 Bearing $5.95 usually ships 1-5 days
025 189-1462 Washer 5 x 14 inch $2.79 ships same day
026 189-1352 Screw $3.96 usually ships 10-12 days
027 189-1484 Nut M5 $3.43 2 usually ships 1-5 days
028 189-1485 Screw $12.32 usually ships 10-12 days
029 189-0053 Battery bearing surface $66.87 usually ships 1-5 days
031 203-0722 Support (OBSOLETE) $101.13 usually ships 1-5 days
032 189-1486 Screw $2.42 usually ships 1-5 days
033 189-0824 Basement Call for price usually ships 1-5 days
034 203-0620 Spacer (OBSOLETE) Call for price usually ships 1-5 days
035 203-0621 Upright bracket (OBSOLETE) Call for price usually ships 1-5 days
