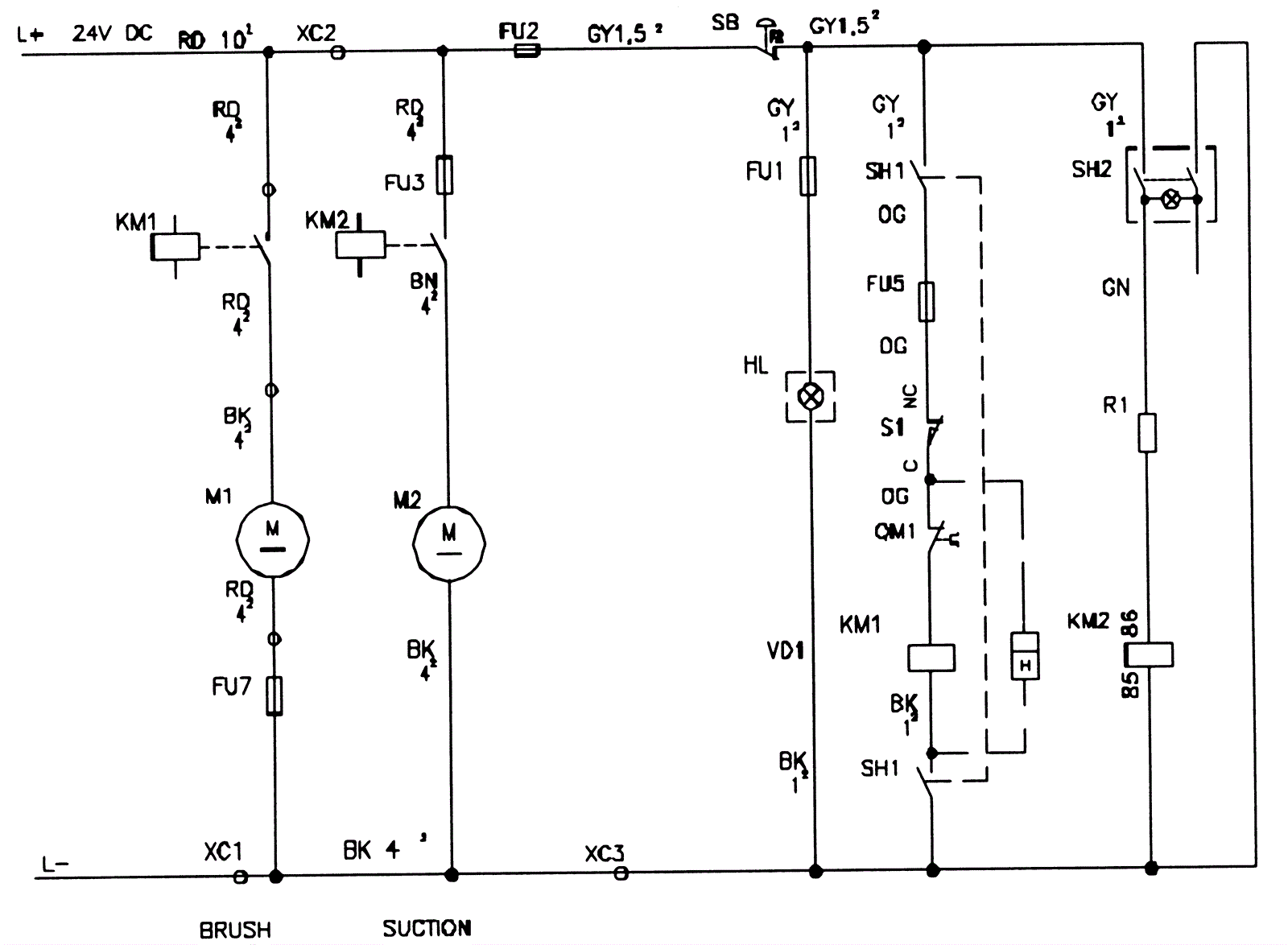

DURA20 Electrical Schematic

#PartDescriptionPriceReqNotesAvailability
FU1 189-0107 5 amp fuse $25.42 usually ships 1-5 days
FU2 203-3133 30amp fuse $2.34 usually ships 1-5 days
FU3 189-0163 Silent blok $22.74 usually ships 1-5 days
FU5 189-0107 5 amp fuse $25.42 usually ships 1-5 days
FU7 203-0926 Fuse $5.85 usually ships 15-24 days
H 203-0954 Hour meter (OBSOLETE) $153.92 usually ships 1-5 days
HL 189-0832 Circuit board $104.58 usually ships 15-24 days
KM1 189-0105 Relay $214.81 usually ships 15-24 days
KM2 203-0782 Relay $163.60 usually ships 1-5 days
M1 189-0155 Motor $2,377.87 usually ships 15-24 days
M2 203-0804 Motor $718.99 usually ships 1-5 days
R1 203-0945 Resistance $115.01 usually ships 1-5 days
S1 189-0258 Microswitch $30.61 usually ships 15-24 days
SB 189-0264 Key switch complete $75.80 usually ships 15-24 days
SH1 203-0698 Lighted switch $37.14 usually ships 15-24 days
SH2 203-0698 Lighted switch $37.14 usually ships 15-24 days
XC1 203-0882 Support (OBSOLETE) $23.64 usually ships 1-5 days
XC2 203-0947 Clamp $2.06 usually ships 1-5 days
XC3 203-0946 Clamp $1.28 usually ships 1-5 days
