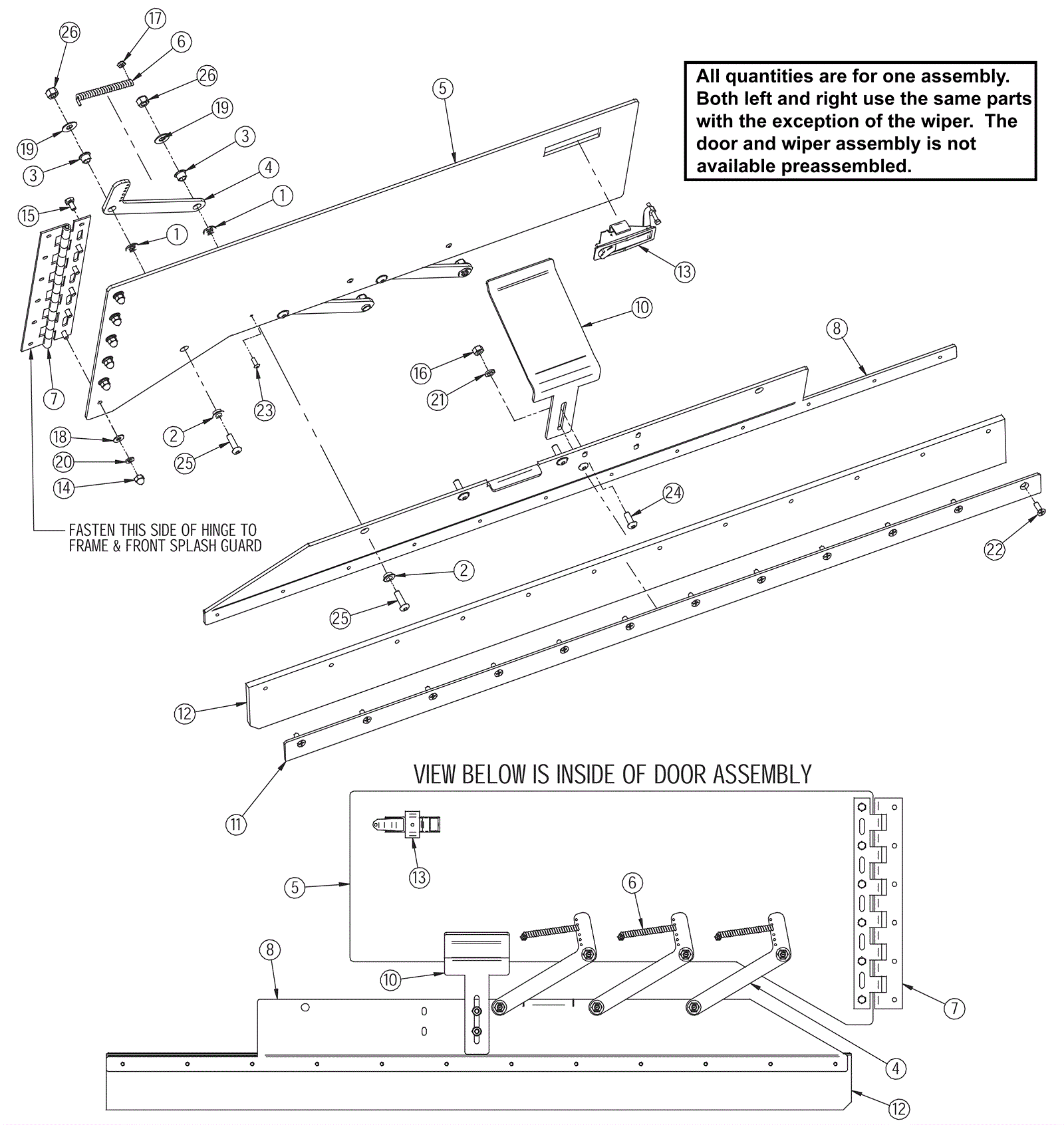

420 Side Door and Wiper Assembly

#PartDescriptionPriceReqNotesAvailability
01 202-1181 Washer 1/2 flat bronze $5.50 4 usually ships 3-11 days
02 202-1239 Flanged bearing $5.50 6 usually ships 3-11 days
03 202-0754 Flanged bearing $5.50 6 usually ships 3-11 days
04 202-2417 Wiper arm $28.16 3 ships same day
05 202-2418 Door $266.75 1 usually ships 1-5 days
06 202-2419 Spring $7.81 3 usually ships 3-11 days
07 202-2363 Hinge $66.77 1 usually ships 1-5 days
08 202-2420 Left side wiper $210.32 1 usually ships 1-5 days
09 202-2421 Right side wiper (OBSOLETE) $213.07 1 usually ships 3-11 days
10 202-2422 Wiper lifting bracket $152.25 1 usually ships 3-11 days
11 202-2423 Wiper band (OBSOLETE) $168.85 1 usually ships 3-11 days
12a 202-2873 Wiper blade gum rubber (includes left and right blade) $184.47 1 usually ships 1-5 days
12b 202-2424 Wiper blade linatex (includes left and right blade) $268.95 1 usually ships 3-11 days
13 202-0404 Latch $49.06 1 ships same day
14 999-0429 Nut 1/4-20 acorn nickel plated $0.99 6 ships same day
15 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 6 ships same day
16 999-0593 Nut 5/16-18 hex stainless steel $0.99 2 ships same day
17 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 3 ships same day
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 ships same day
19 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
20 999-0632 Washer 1/4 split lock stainless steel $0.99 6 ships same day
21 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
22 999-0326 Screw 1/4-20 x 3/4 flat head phillips zinc plated $0.99 12 ships same day
23 999-0965 Screw 10-32 x 1/2 button head socket cap stainless steel $0.99 3 ships same day
24 202-2372 Bolt 5/16-18 x 3/4 inch button head socket cap $5.50 2 usually ships 1-5 days
25 999-1507 Screw 5/16-18 x 1 button head socket stainless steel $1.88 6 ships same day
26 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 6 ships same day
