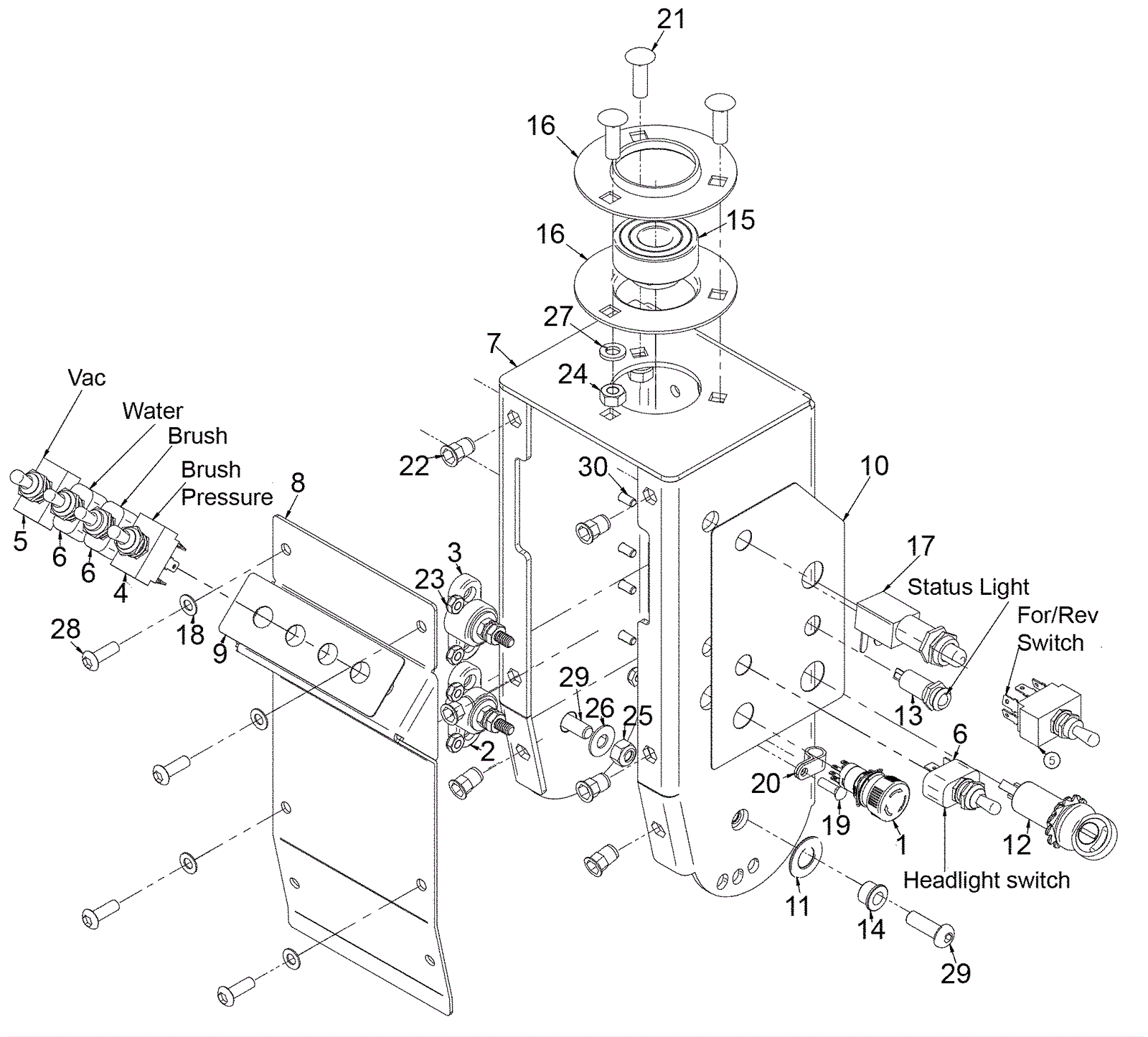

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-4191
|
Emergency stop button |
$165.33
|
1 |
|
ships same day |
2 |
202-6396
|
Power Post, Black, 1/4 Terminal |
$8.58
|
1 |
|
usually ships 8-12 days |
3 |
202-6397
|
Power Post, Red, 1/4 Terminal |
$8.91
|
1 |
|
usually ships 8-12 days |
4 |
302-0020
|
Toggle switch |
$5.50
|
1 |
|
usually ships 8-12 days |
5 |
302-0021
|
Toggle switch ST2 on-on |
$17.16
|
2 |
|
usually ships 8-12 days |
6 |
302-0023
|
Toggle switch SPST1 off-on |
$5.50
|
3 |
|
usually ships 8-12 days |
7 |
302-0022
|
Upper steering pedastal (black) |
$136.44
|
1 |
|
usually ships 8-12 days |
8 |
302-0024
|
Cover with switches (black) |
$73.81
|
1 |
|
usually ships 8-12 days |
9 |
302-0019
|
K42 decal set |
$33.21
|
1 |
|
usually ships 8-12 days |
10 |
302-0019
|
K42 decal set |
$33.21
|
1 |
|
usually ships 8-12 days |
11 |
202-1181
|
Washer 1/2 flat bronze |
$5.50
|
1 |
|
usually ships 8-12 days |
12 |
202-2300
|
Key switch with key entry (red) and ring (black) |
$33.55
|
1 |
|
ships same day |
13 |
202-7204
|
Light,24V,Yellow,Bulb Style |
$31.13
|
1 |
|
usually ships 8-12 days |
14 |
202-3312
|
Flanged bearing |
$7.04
|
1 |
|
usually ships 8-12 days |
15 |
202-0142
|
Upper steering bearing |
$31.24
|
1 |
|
usually ships 8-12 days |
16 |
202-0143
|
Bearing mount |
$15.84
|
2 |
|
usually ships 1-5 days |
17 |
202-0381
|
Horn button |
$34.65
|
1 |
|
usually ships 8-12 days |
18 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
$5.50
|
1 |
|
ships same day |
19 |
999-1508
|
Bolt 10-32 x 5/8 round carriage head stainless steel |
$0.99
|
1 |
|
usually ships 1-5 days |
20 |
202-2431
|
P clamp |
$5.50
|
1 |
|
usually ships 1-5 days |
21 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
$0.99
|
1 |
|
ships same day |
22 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
1 |
|
ships same day |
23 |
202-2067
|
Nut 10-32 keps |
$5.50
|
1 |
|
usually ships 8-12 days |
24 |
999-0593
|
Nut 5/16-18 hex stainless steel |
$0.99
|
1 |
|
ships same day |
25 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
1 |
|
ships same day |
26 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
1 |
|
ships same day |
27 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
$0.99
|
1 |
|
ships same day |
28 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
$0.99
|
1 |
|
ships same day |
29 |
999-1507
|
Screw 5/16-18 x 1 button head socket stainless steel |
$1.88
|
2 |
|
ships same day |
30 |
302-0025
|
Screw #10-32 x 1/2 |
$4.62
|
1 |
|
usually ships 8-12 days |
