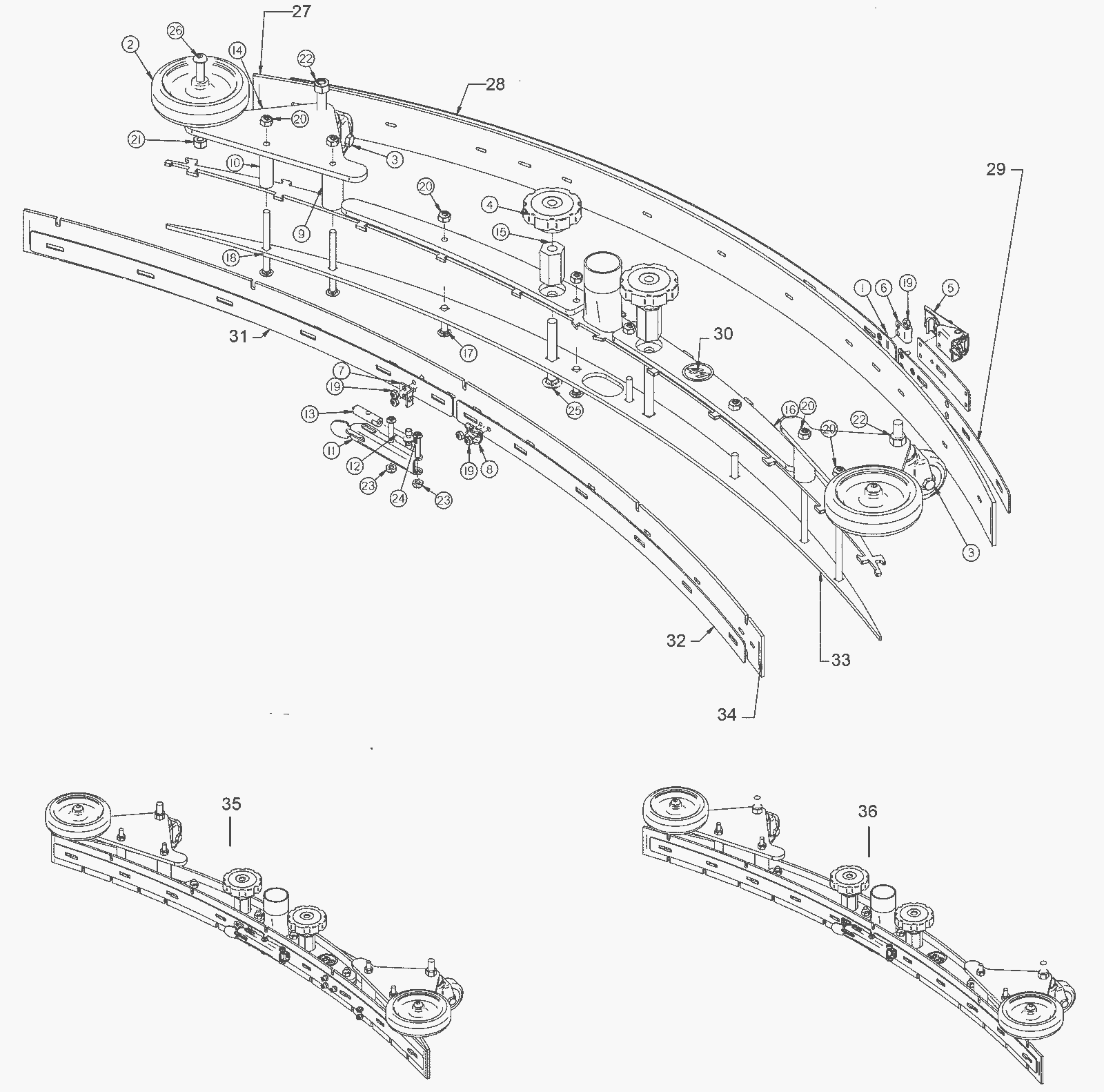

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 9 (FHSCS #6-32 x 3/8)
2 202-5079 4 inch wheel 2
3 202-3590 2 inch caster (gray) 2
4 202-9853 3/8-16 star knob 2
5 202-9913 Squeegee latch 1
6 202-3648 Band clip 1
7 202-3649 Front band clip 1
8 202-9914 Front band clip 1
9 202-9915 PVC tube 2
10 202-9916 PVC tube 2
11 N/A Not available 1 (only available with front band assembly)
12 202-9917 Eye bolt 1/4-20 x 3 1
13 202-9918 Ram tip 1
14 202-9919 Squeegee caster bracket 2
15 202-9920 Standoff 2
16 202-3670 45 inch squeegee weight 2
17 999-1443 Bolt 1/4-20 x 1 1/4 carriage stainless steel 4
18 999-9246 Bolt 1/4-20 x 3 carriage zinc 4
19 999-0337 Nut 6-32 nylon insert lock stainless steel 9
20 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
21 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
22 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
23 999-0086 Nut 10-32 nylon insert lock zinc plated 2
24 999-0986 Screw 10-32 x 1 round pan head stainless steel 2
25 999-0626 Screw 3/8-16 x 3 carriage head stainless steel 2
26 999-1913 Screw 5/16-18 x 1 3/4 button head socket cap stainless steel 2
27a 202-3662 Squeegee blade 31 inch linatex rear v2.1 1 (17 inch model)(31 inch)
27b 302-0244 Squeegee blade 33 inch linatex rear 1 (20 inch model) (33 inch)
28a 202-3671 Squeegee band 31 inch rear with latch 1 (17 inch model)(31 inch)
28b 202-3672 Squeegee band 33 inch rear with latch 1 (20 inch model) (33 inch)
29a 202-3671 Squeegee band 31 inch rear with latch 1 (17 inch model)(31 inch)
29b 202-3672 Squeegee band 33 inch rear with latch 1 (20 inch model) (33 inch)
30a 202-3917 31 inch squeegee decal 1 (17 inch model, 31 inch squeegee)
30b 202-9922 33 inch squeegee decal 1 (20 inch model, 33 inch squeegee)
31a 202-3675 Squeegee band 31 inch front with latch 1 (17 inch model)(31 inch)
31b 202-3676 Squeegee band 33 inch front with latch 1 (20 inch model) (33 inch)
32a 202-3675 Squeegee band 31 inch front with latch 1 (17 inch model)(31 inch)
32b 202-3676 Squeegee band 33 inch front with latch 1 (20 inch model) (33 inch)
33a 202-3918 31 inch squeegee body bottom 1 (17 inch model)(31 inch)
33b 202-9923 33 inch squeegee body bottom 1 (20 inch model)(20 inch model) (33 inch)
34a 202-3690 Squeegee blade 31 inch linatex front v2.1 1 (17 inch model)(31 inch)
34b 202-3691 Squeegee blade 33 inch linatex front 1 (20 inch model) (33 inch)
34c 202-9691 Squeegee blade 31 inch urethane front 1 (17 inch model)(31 inch)
34d 302-0243 Squeegee blade 33 inch urethane front 1 (20 inch model) (33 inch)
34e 202-3916 31 inch squeegee blade front nanorade 1 (17 inch model)(31 inch)
34f 202-9924 33 inch front squeegee blade (nanorade) 1 (20 inch model) (33 inch)
35 302-0002 31 inch squeegee assembly 1 (Standard on 17 inch model)
36 202-9925 33 inch squeegee assembly with nanorade blades 1 (Standard on 20 inch model)
