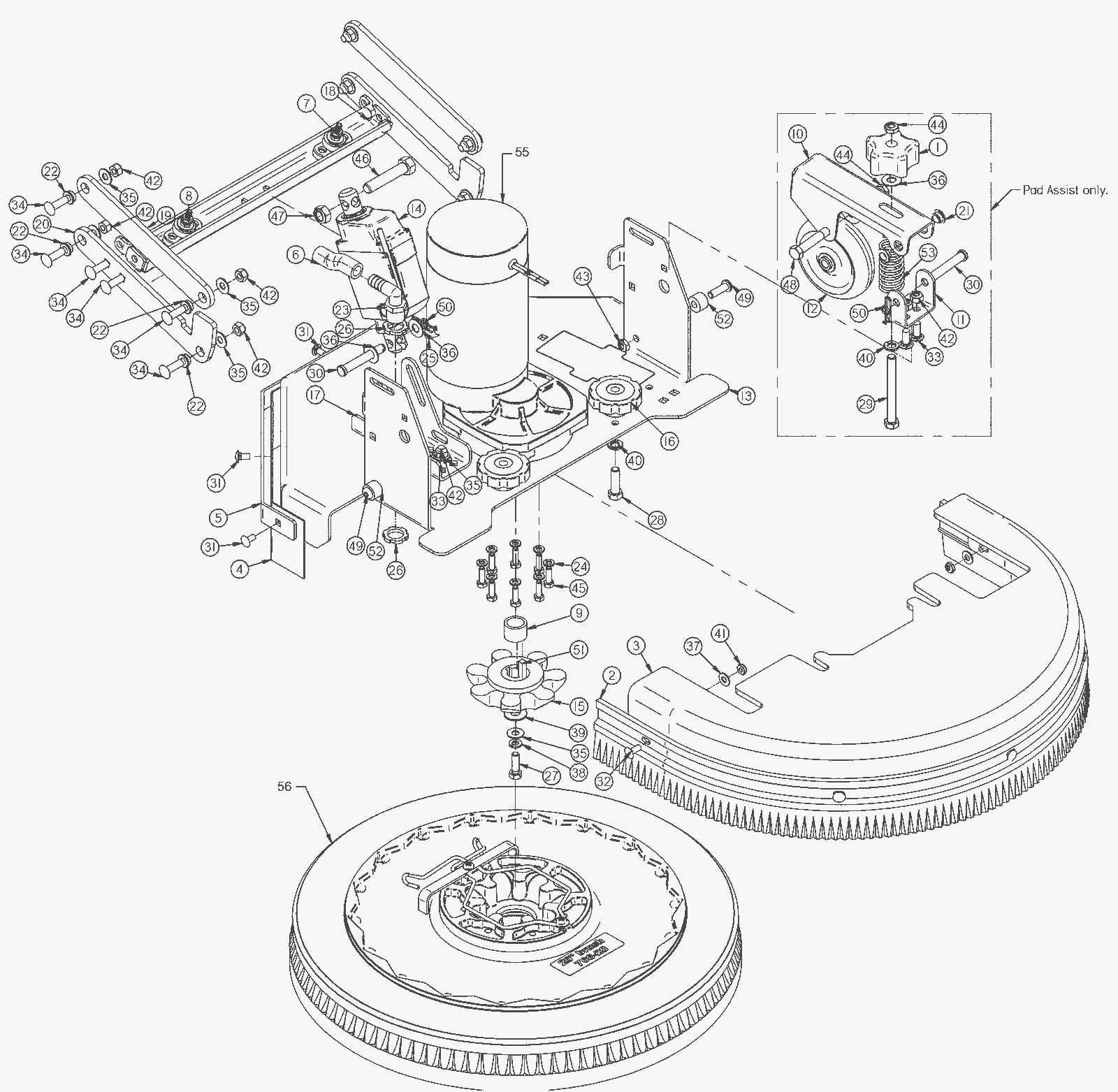

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5078
|
Star knob |
1 |
(Pad assist) |
|
2 |
202-3364
|
20 and 23 inch shroud curtain |
1 |
|
|
3 |
202-4109
|
20 inch front shroud |
2 |
|
|
4 |
202-4129
|
20 inch curtain |
1 |
|
|
5 |
202-4127
|
20 inch curtain band |
1 |
|
|
6 |
202-4116
|
Hose 1/2 x 2 3/4 inch (clear) |
1 |
|
|
7 |
202-6396
|
Power Post, Black, 1/4 Terminal |
1 |
|
|
8 |
202-6397
|
Power Post, Red, 1/4 Terminal |
1 |
|
|
9 |
202-6418
|
Spacer, Driver |
1 |
|
|
10 |
202-2078
|
Deck Wheel Pivot Bracket |
1 |
(Pad assist) |
|
11 |
202-2079
|
Deck wheel pivot support |
1 |
(Pad assist) |
|
12 |
202-2080
|
4.0 inch Wheel |
1 |
(Pad assist) |
|
13 |
202-9850
|
20 inch disk deck |
1 |
|
|
14 |
202-9851
|
24V actuator |
1 |
|
|
15 |
202-9852
|
Brush driver |
1 |
|
|
16 |
202-9853
|
3/8-16 star knob |
2 |
|
|
17 |
202-9854
|
20 inch disk lifting bracket |
1 |
|
|
18 |
202-9855
|
Lift arm cross bar |
1 |
|
|
19 |
202-9856
|
Lateral disk arm (short) |
2 |
|
|
20 |
202-9857
|
Lateral disk arm (dog leg) |
2 |
|
|
21 |
202-1239
|
Flanged bearing |
2 |
(Pad assist) |
|
22 |
202-7656
|
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
8 |
|
|
23 |
202-0333
|
Elbow barb |
1 |
|
|
24 |
999-1049
|
Washer 1/4 split lock zinc plated |
8 |
|
|
25 |
202-9858
|
Bushing |
1 |
|
|
26 |
999-0330
|
Nut 1/2-13 acorn brass |
2 |
|
|
27 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
1 |
|
|
28 |
999-9237
|
Screw 3/8-16 x 1 1/4 hex cap |
2 |
|
|
29 |
999-9238
|
Bolt 3/8-16 x 3 1/2 hex cap |
1 |
(Pad assist) |
|
30 |
202-5193
|
Clevis pin 3/8 x 2 |
2 |
|
|
31 |
999-9239
|
Bolt 1/4-20 x 1/2 carriage |
5 |
|
|
32 |
999-9240
|
Bolt 1/4-20 x 5/8 carriage |
5 |
|
|
33 |
999-9069
|
Bolt 5/16-18 x 3/4 carriage head |
6 |
(Pad assist) |
|
34 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
12 |
|
|
35 |
202-1201
|
Washer 5/16 uss |
13 |
|
|
36 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
3 |
(Pad assist) |
|
37 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
5 |
|
|
38 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
1 |
|
|
39 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
1 |
|
|
40 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
3 |
|
|
41 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
10 |
|
|
42 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
18 |
|
|
43 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
2 |
|
|
44 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
2 |
|
|
45 |
999-1304
|
Screw M6-1 x 16mm hex head zinc |
8 |
|
|
46 |
999-9223
|
Screw M12-1.75 x 60 hex cap zinc |
1 |
|
|
47 |
999-1122
|
Nut M12-1.75 hex nylon insert lock stainless steel |
1 |
|
|
48 |
202-9345
|
Screw,Hex Cap,3/8-16x2-1/2 inch Stainless |
1 |
(Pad assist) |
|
49 |
999-1507
|
Screw 5/16-18 x 1 button head socket stainless steel |
2 |
|
|
50 |
202-2036
|
Cotter pin |
2 |
(Pad assist) |
|
51 |
202-9970
|
Key 1/4 inch x 1 inch |
1 |
|
|
52 |
202-4123
|
Plastic spacer |
2 |
|
|
53 |
202-9844
|
Spring |
1 |
|
|
55a |
202-3906
|
24v motor |
1 |
(Traction drive) |
|
55b |
202-3907
|
24v motor w/ connectors |
1 |
(Brush assist) |
|
56a |
202-9908
|
20 inch brush mid grit (orange) |
1 |
|
|
56b |
202-9909
|
20 inch brush light grit (orange) |
1 |
|
|
56c |
202-9910
|
20 inch nylon brush (orange) |
1 |
|
|
56d |
202-9911
|
20 inch 7 lobe pad driver (orange) |
1 |
|
|
56e |
202-9973
|
Pad driver retainer |
1 |
|
|
56f |
202-9974
|
Spring clip |
1 |
|
|
56g |
202-6512
|
Floor Pads, 20 inch Black - Case of 5 pads |
1 |
|
|
