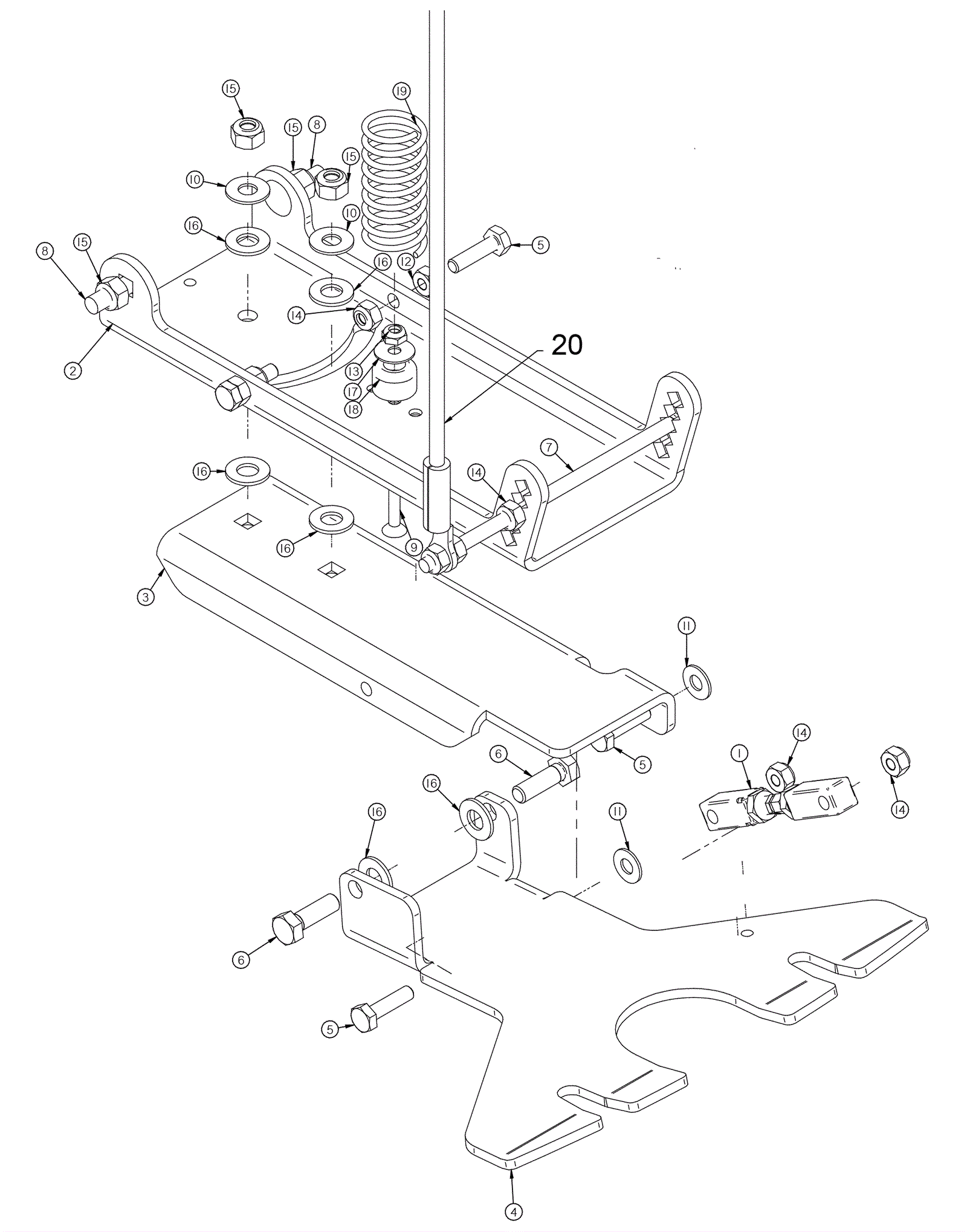

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-6432
|
Body, Adjustable Lateral Arm Assy |
1 |
|
|
2 |
202-9841
|
Squeegee swing plate |
1 |
|
|
3 |
202-9842
|
Squeegee trail arm |
1 |
|
|
4 |
202-9843
|
Triangle plate |
1 |
|
|
5 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
4 |
|
|
6 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
|
7 |
999-9236
|
Bolt 1/4-20 x 6 carriage head zinc plated |
1 |
|
|
8 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
4 |
|
|
9 |
999-9235
|
Screw #10-32 x 1 flat head phillips zinc plated |
1 |
|
|
10 |
202-1201
|
Washer 5/16 uss |
2 |
|
|
11 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
12 |
999-0190
|
Nut 1/4-20 hex plain finish |
2 |
|
|
13 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
1 |
|
|
14 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
7 |
|
|
15 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
6 |
|
|
16 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
6 |
|
|
17 |
202-3316
|
Washer flat stainless steel |
1 |
|
|
18 |
202-3275
|
Rubber bumper |
1 |
|
|
19 |
202-9844
|
Spring |
1 |
|
|
20 |
202-9845
|
23-1/4 squeegee lift cable (black) |
1 |
(For series M) |
|
