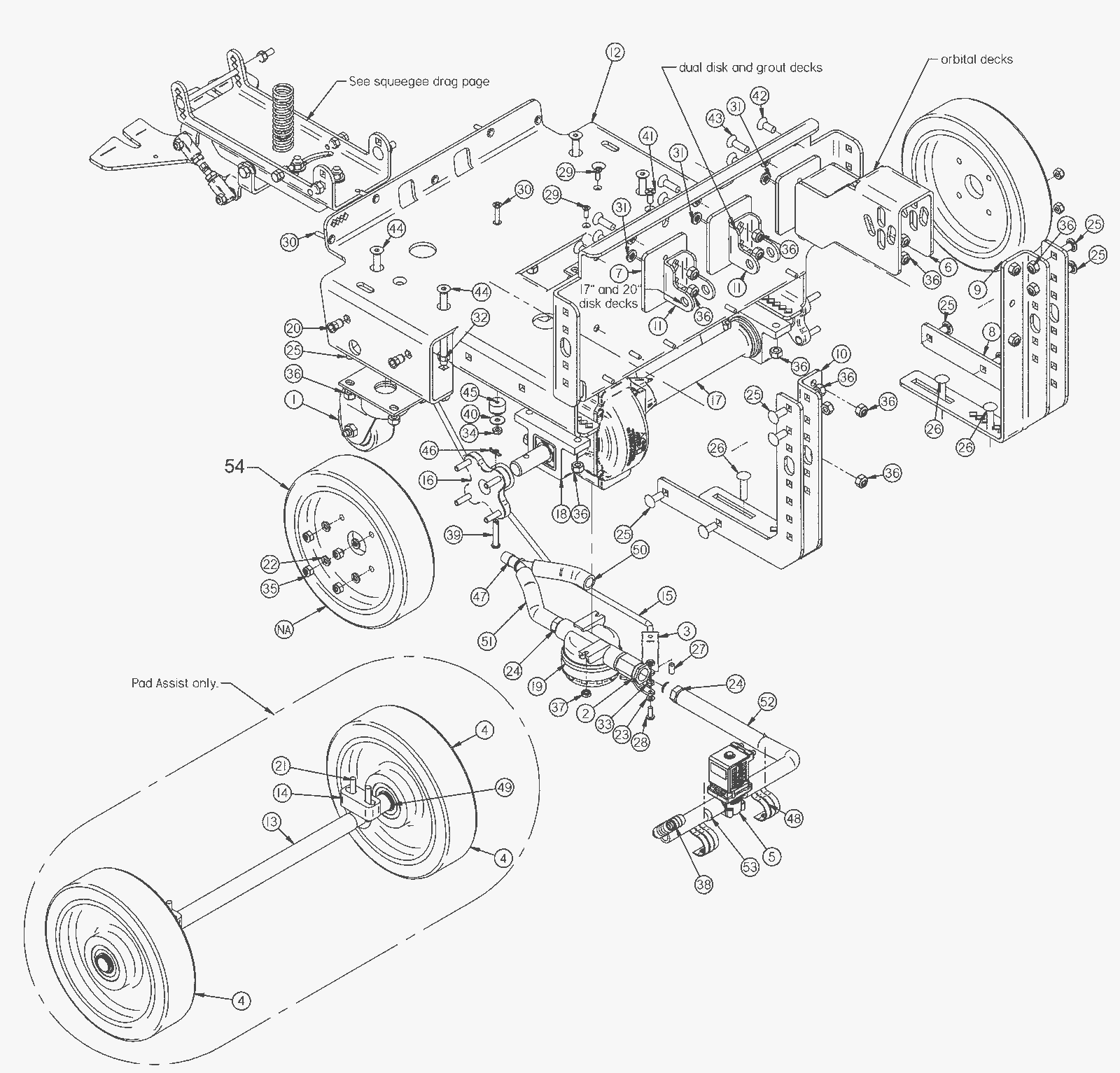

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
302-0255
|
Caster wheel |
2 |
|
|
2 |
202-5363
|
3/8 inch ball valve |
1 |
|
|
3 |
202-5567
|
Cable guide |
1 |
|
|
4 |
202-4149
|
Tire |
2 |
|
|
5 |
202-6246
|
Solenoid,24V,3/8 inchNPTx3/8 inch |
1 |
|
|
6 |
202-9829
|
Lifting bracket |
1 |
|
|
7 |
202-3901
|
Lift bracket spacer |
3 |
|
|
8 |
202-9830
|
Frame brace |
2 |
|
|
9 |
202-9831
|
Left hand frame bracket |
1 |
|
|
10 |
202-9832
|
Right hand frame bracket |
1 |
|
|
11 |
202-9833
|
Upper actuator bracket |
2 |
|
|
12 |
202-9834
|
Main frame |
1 |
|
|
13 |
202-9835
|
Axle |
1 |
|
|
14 |
202-9836
|
Axle spacer |
2 |
|
|
15 |
202-9837
|
Solution valve cable |
1 |
|
|
16 |
202-9964
|
Transaxle hub with moutning |
2 |
|
|
17 |
202-3902
|
24V transaxle w/ connectors |
1 |
|
|
18 |
202-9965
|
Axle mount |
2 |
|
|
19 |
202-3234
|
Inline filter |
1 |
|
|
20 |
202-5284
|
Nut 1/4-20 hex crimp long |
4 |
|
|
21 |
999-0917
|
U bolt |
2 |
|
|
22 |
999-1049
|
Washer 1/4 split lock zinc plated |
8 |
|
|
23 |
999-1215
|
Washer #6 SAE flat zinc plated |
1 |
|
|
24 |
202-3236
|
Threaded barb |
2 |
|
|
25 |
999-9069
|
Bolt 5/16-18 x 3/4 carriage head |
16 |
|
|
26 |
999-1334
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
4 |
|
|
27 |
999-1468
|
Screw 1/4-20 x 1/2 knurled point set alloy steel |
1 |
|
|
28 |
999-0447
|
Screw 6-32 x 1/2 pan head phillips zinc plated |
1 |
|
|
29 |
202-9285
|
Screw,PFHM,#10-32x1/2 inch Zinc |
2 |
|
|
30 |
999-9235
|
Screw #10-32 x 1 flat head phillips zinc plated |
11 |
|
|
31 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
6 |
|
|
32 |
999-0069
|
Nut 5/16-18 hex |
8 |
|
|
33 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
1 |
|
|
34 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
1 |
|
|
35 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
12 |
|
|
36 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
35 |
|
|
37 |
202-2067
|
Nut 10-32 keps |
2 |
|
|
38 |
202-4070
|
90 degree barbed elbow |
1 |
|
|
39 |
202-9966
|
Clevis pin |
2 |
|
|
40 |
202-3316
|
Washer flat stainless steel |
1 |
|
|
41 |
999-0990
|
Screw 1/4-20 x 5/8 flat head phillips stainless steel |
1 |
|
|
42 |
999-1258
|
Screw 5/16-18 x 3/4 flat head phillips stainless steel |
4 |
|
|
43 |
999-9243
|
Screw 5/16-18 x 1 flat head socket cap (3/16 hex drive) |
6 |
|
|
44 |
202-9839
|
Screw 5/16-18 x 4 1/4 flat head socket cap screw zinc |
4 |
|
|
45 |
202-3275
|
Rubber bumper |
1 |
|
|
46 |
202-0585
|
Cotter ring |
2 |
|
|
47 |
202-3239
|
Tee |
1 |
|
|
48 |
202-9642
|
3/4 inch clamp zinc |
2 |
|
|
49 |
202-5330
|
Retaining ring |
4 |
|
|
50 |
202-9840
|
1/2 inch ID x 5 foot clear hose |
1 |
|
|
51 |
202-9840
|
1/2 inch ID x 5 foot clear hose |
1 |
|
|
52 |
202-9840
|
1/2 inch ID x 5 foot clear hose |
1 |
|
|
53 |
202-9840
|
1/2 inch ID x 5 foot clear hose |
1 |
|
|
54a |
202-9827
|
8 inch poly tire (grey) |
1 |
|
|
54b |
202-9828
|
8 inch poly tire (black) |
1 |
|
|
