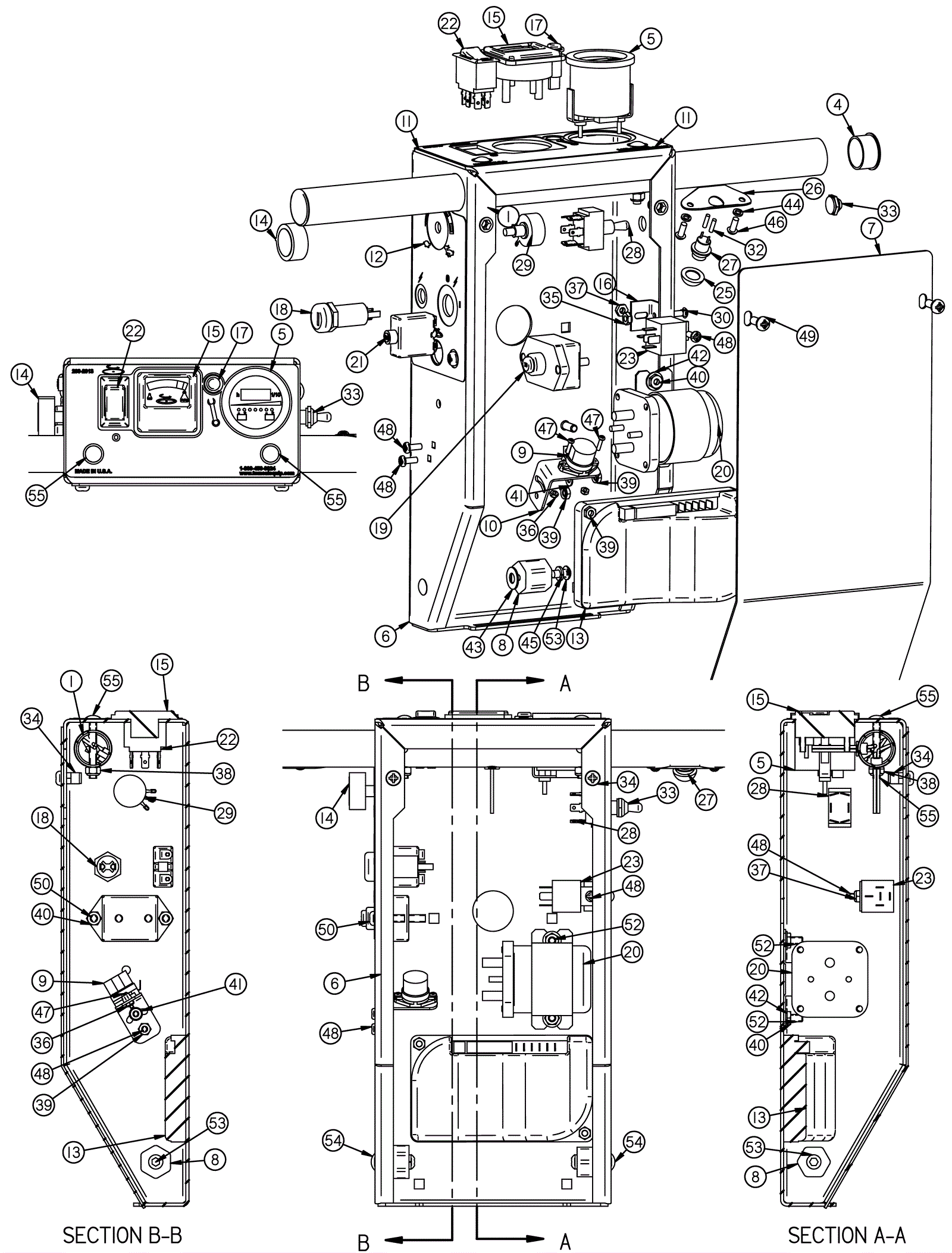

270 Control Board Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-2865 Handle bar $74.14 1 usually ships 1-5 days
4 202-2252 End cap $5.50 2 usually ships 3-11 days
5 202-2855 Battery meter $131.69 1 usually ships 3-11 days
6 202-2856 Traction drive control panel $216.48 1 usually ships 1-5 days
7 202-2857 Control panel cover $71.50 1 usually ships 3-11 days
8 202-2858 Switchboard insulator $36.74 2 usually ships 1-5 days
9 202-2859 Tilt switch $72.38 1 (for traction drive machines only) usually ships 3-11 days
10 202-2860 Tilt switch bracket $18.04 1 usually ships 1-5 days
11 202-2861 200 Control panel top sticker $22.33 1 usually ships 3-11 days
12 202-2862 200 Control panel side sticker $22.66 1 usually ships 1-5 days
13 202-2863 Curtis 36v controller $456.39 1 usually ships 3-11 days
14 202-0989 Control knob with washer (red) $11.66 1 usually ships 3-11 days
15a 202-2573 0 to 100 Amp gauge $77.00 1 ships same day
15b 202-3553 Amp gauge 100 for 65amp $50.33 1 usually ships 3-11 days
16 202-0819 Bracket $5.50 1 usually ships 1-5 days
17 202-0832 Full recovery indicator (red) $28.16 1 usually ships 3-11 days
18a 202-2300 Key switch with key entry (red) and ring (black) $33.55 1 ships same day
18b 991-1634 Key (pkg of 2) $10.67 1 ships same day
19a 202-3542 70a circuit breaker $200.64 1 usually ships 1-5 days
19b 202-2577 80 amp breaker $278.85 1 (for machine with HD motors) usually ships 3-11 days
20 202-2307 36V 200 amp relay $190.85 1 usually ships 3-11 days
21 202-2499 15amp fuse $41.80 1 usually ships 3-11 days
22 202-0369 2 position rocker switch $26.18 1 usually ships 3-11 days
23 202-0348 15amp relay $12.76 1 ships same day
25 202-3427 Button cover $17.27 1 usually ships 3-11 days
26 202-0869 Switch cover $21.56 1 usually ships 3-11 days
27 202-0879 Push button switch $51.15 1 usually ships 3-11 days
28 202-0521 Toggle switch $34.76 1 usually ships 3-11 days
29 202-0535 Speed control potentiometer $89.76 1 usually ships 3-11 days
30 202-3302 Bolt 10-32 x 1/2 carriage head stainless steel $5.50 1 usually ships 3-11 days
32 202-2254 Heat shrink $6.71 2 usually ships 3-11 days
33 202-1864 Toggle switch protective boot (red) $13.20 1 usually ships 3-11 days
34 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
35 202-2067 Nut 10-32 keps $5.50 1 usually ships 3-11 days
36 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 2 ships same day
37 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
38 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
39 202-2067 Nut 10-32 keps $5.50 4 usually ships 3-11 days
40 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 4 ships same day
41 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
42 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
43 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
44 999-0150 Washer #8 medium split lock $0.99 2 ships same day
45 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
46 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
47 202-2370 Screw 4-40 x 1/2 Phillips pan head stainless steel $5.50 2 usually ships 1-5 days
48 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 3 ships same day
49 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
50 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 2 ships same day
N/S 999-1189 Screw 10-32 x 3/4 flat head phillips stainless steel $0.99 2 ships same day
52 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel $0.99 2 ships same day
53 202-3109 Screw 1/4 x 5/8 button head socket stainless steel $5.50 2 usually ships 3-11 days
55 999-0605 Screw 1/4-20 x 2 carriage head stainless steel $5.50 2 ships same day
N/S 202-2866 12 inch large 16 Gage red wire $5.72 1 usually ships 3-11 days
N/S 202-2251 Yellow wire, 16 gage $6.93 1 usually ships 3-11 days
N/S 202-2253 Nut 1/4-.3/8 x 3/8 long flanged bearing nylon $6.71 1 usually ships 3-11 days
