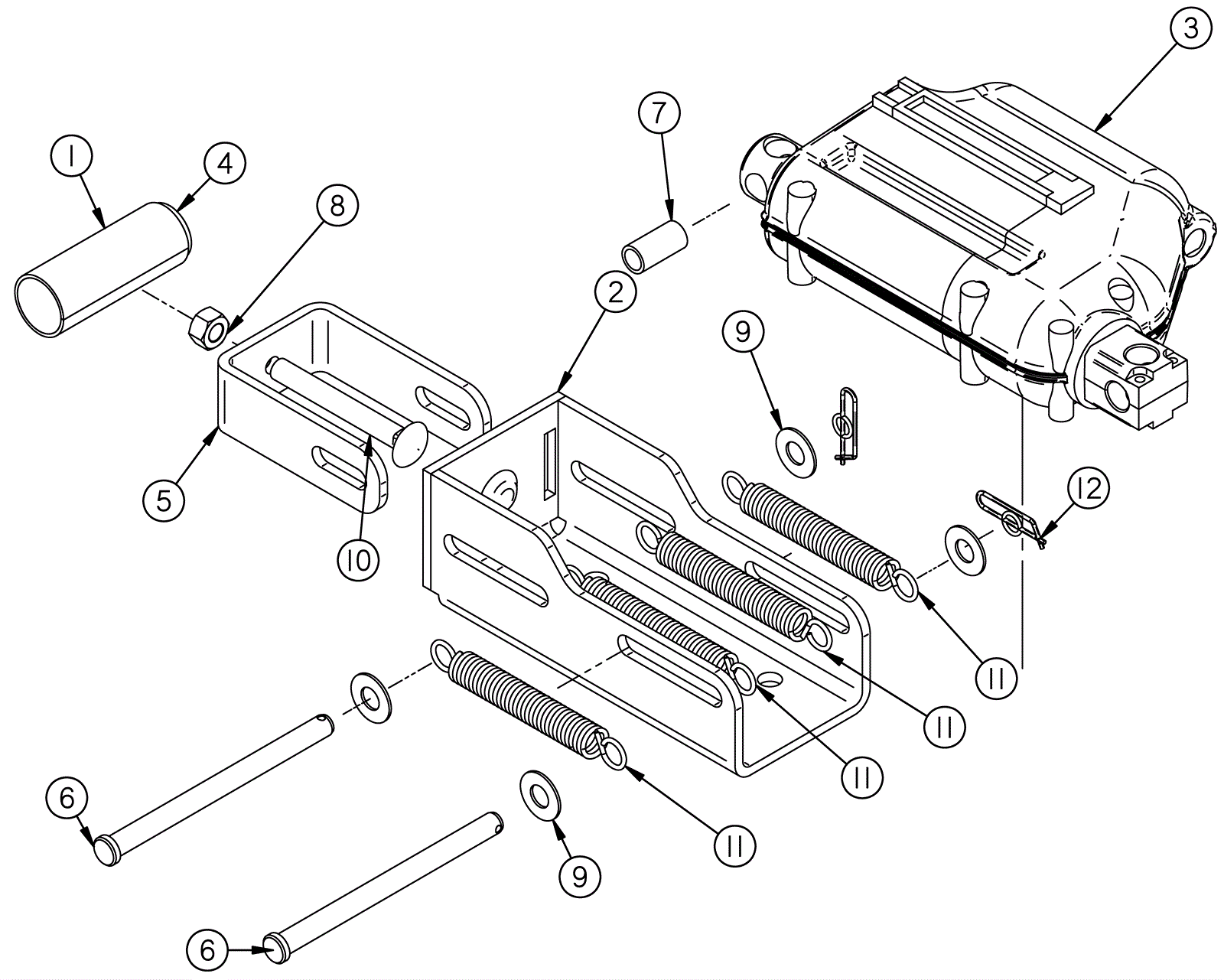

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3541
|
Down pressure decal |
1 |
|
|
2 |
202-2840
|
Actuator slide |
1 |
|
|
3 |
202-2841
|
36V 2 stroke actuator |
1 |
|
|
4 |
202-2565
|
Spring adjustment knob |
1 |
|
|
5 |
202-2568
|
Actuator spring adjustment bracket |
1 |
|
|
6 |
202-3097
|
Clevis pin |
2 |
|
|
7 |
202-1951
|
Sleeve |
1 |
|
|
8 |
999-0635
|
Nut 3/8-16 hex stainless steel |
1 |
|
|
9 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
4 |
|
|
10 |
999-0626
|
Screw 3/8-16 x 3 carriage head stainless steel |
1 |
|
|
11 |
202-2208
|
Compression spring |
4 |
|
|
12 |
202-2036
|
Cotter pin |
2 |
|
|
