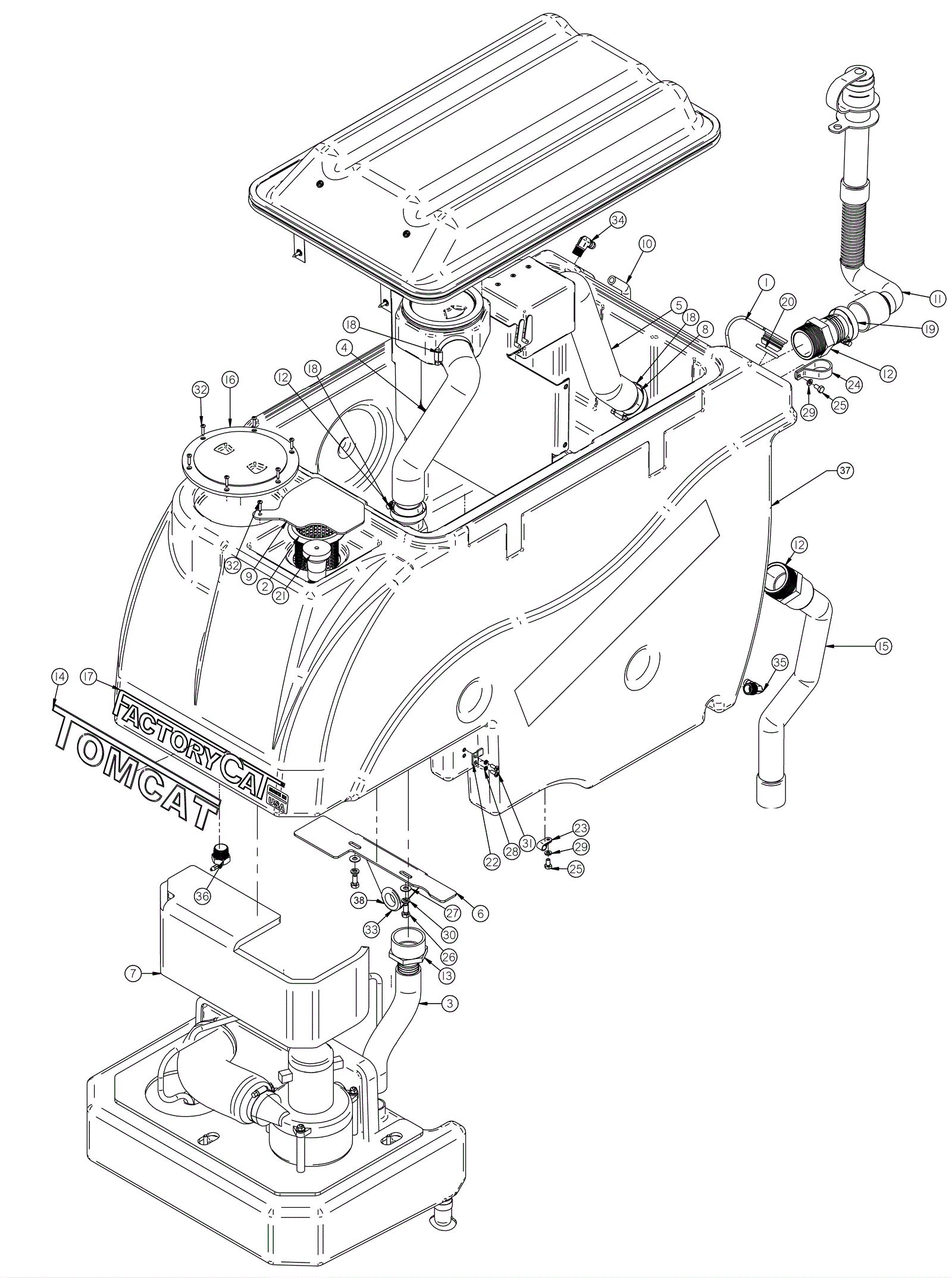

CARBON Standard Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-3373 Drain hose cap $18.26 1 (XL) ships same day
2 202-3036 Strainer screen $41.80 1 usually ships 3-11 days
3 202-6302 Hose, Baffle to Tank $35.31 1 usually ships 3-11 days
4 202-6303 Hose, Clean Air Intake $18.26 1 usually ships 3-11 days
5 202-6304 Hose, Inner Tank $21.23 1 usually ships 3-11 days
6 202-6322 Bracket, Lift Arm Support $37.62 1 usually ships 3-11 days
7a 202-6348 Soundeading Kit $54.45 1 (XL) usually ships 3-11 days
7b 202-4242 Vacuum motor insulation Call for price 1 (Small) usually ships 3-11 days
8 202-2025 Hosebarb $21.23 1 usually ships 3-11 days
9a 202-6360 Curtain, Splash $17.93 1 (XL) usually ships 3-11 days
9b 202-6359 Curtain, Splash $17.82 1 (Small) usually ships 3-11 days
10 202-6371 Tube, Sight, 21/23 Gal $56.32 1 usually ships 3-11 days
11 202-3582 Drain hose assembly $123.41 1 ships same day
12 202-2025 Hosebarb $21.23 3 usually ships 3-11 days
13 202-2118 Hosebarb $23.87 1 usually ships 3-11 days
14 202-3322 Tomcat decal $18.70 1 usually ships 1-5 days
15 202-3023 Squeegee vacuum hose $33.77 1 ships same day
16a 202-7054 Lid,Screw-On,Tank $130.46 1 (XL) usually ships 3-11 days
16b 202-8038 4 inch Clear Access Port $78.32 1 (Small) usually ships 3-11 days
17 202-0436 Tomcat front decal $21.34 1 usually ships 3-11 days
18 997-2011 Hose clamp $2.67 3 ships same day
19 997-2011 Hose clamp $2.67 1 ships same day
20 202-4106 O-ring $5.50 1 (XL) usually ships 3-11 days
21 202-4200 Fill hose $66.56 1 usually ships 3-11 days
22 202-4232 Clip Call for price 2 usually ships 3-11 days
23 202-2189 Loop clamp rubber $5.50 1 usually ships 3-11 days
24 202-3175 P clamp $8.91 1 usually ships 1-5 days
25 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 2 ships same day
26 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
27 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
28 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
29 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
30 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
31 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 4 ships same day
32 999-0870 Screw 8 x 3/4 pan head phillips stainless steel $0.99 7 ships same day
33 202-2592 Grommet $5.50 1 usually ships 3-11 days
34 202-4100 Barbed elbow 3/8 x 1/2 inch $7.81 1 usually ships 3-11 days
35 202-3440 Barbed elbow $23.32 2 usually ships 3-11 days
36 202-9496 Elbow, 1/4 inch Barb x 3/4 inch NPT Black $5.50 1 usually ships 3-11 days
37a 202-6416 Tank,Solution/Recovery,Granite, Complete XL Tank $1,906.52 1 (XL) usually ships 3-11 days
37b 202-6419 Tank,Solution/Recovery,Granite $2,552.77 1 (Small) usually ships 3-11 days
37c 202-4233 Tank (red) $1,933.47 1 (XL) usually ships 3-11 days
37d 202-6420 Tank,Solution/Recovery,Red $1,026.58 1 (Small) usually ships 3-11 days
38 202-4234 Back cord tip $36.74 1 usually ships 3-11 days
