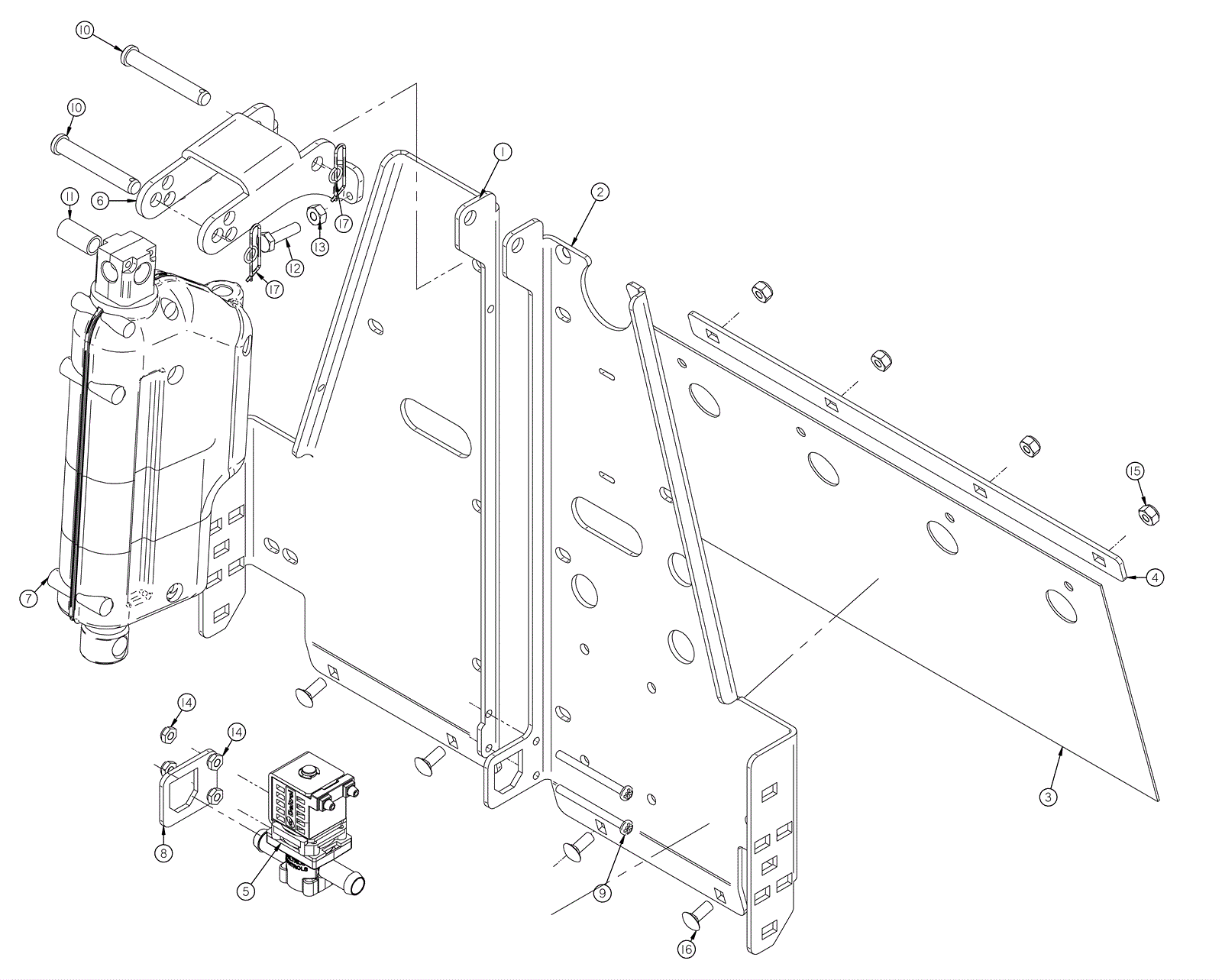

CARBON Acuator and Frame Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-6316 Bracket, Lift Arm Support, LH $79.75 1 usually ships 3-11 days
2 202-6317 Bracket, Lift Arm Support, RH $80.08 1 usually ships 3-11 days
3 202-6318 Curtain, Frame $20.46 1 usually ships 3-11 days
4 202-6319 Band, Curtain, Frame $16.50 1 usually ships 3-11 days
5 202-6246 Solenoid,24V,3/8 inchNPTx3/8 inch $141.90 1 usually ships 3-11 days
6 202-6978 Arm, Actuator $55.66 1 usually ships 3-11 days
7 202-3376 24V actuator $330.11 1 usually ships 3-11 days
8 202-7049 Bracket, Valve $5.50 1 usually ships 3-11 days
9 999-1017 Screw 10-32 x 2 1/4 pan head phillips stainless steel $1.67 2 ships same day
10 202-5193 Clevis pin 3/8 x 2 $5.50 2 usually ships 3-11 days
11 202-1951 Sleeve $5.50 1 usually ships 3-11 days
12 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
13 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
14 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
15 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
16 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 4 usually ships 3-11 days
17 202-2036 Cotter pin $8.25 2 usually ships 3-11 days
