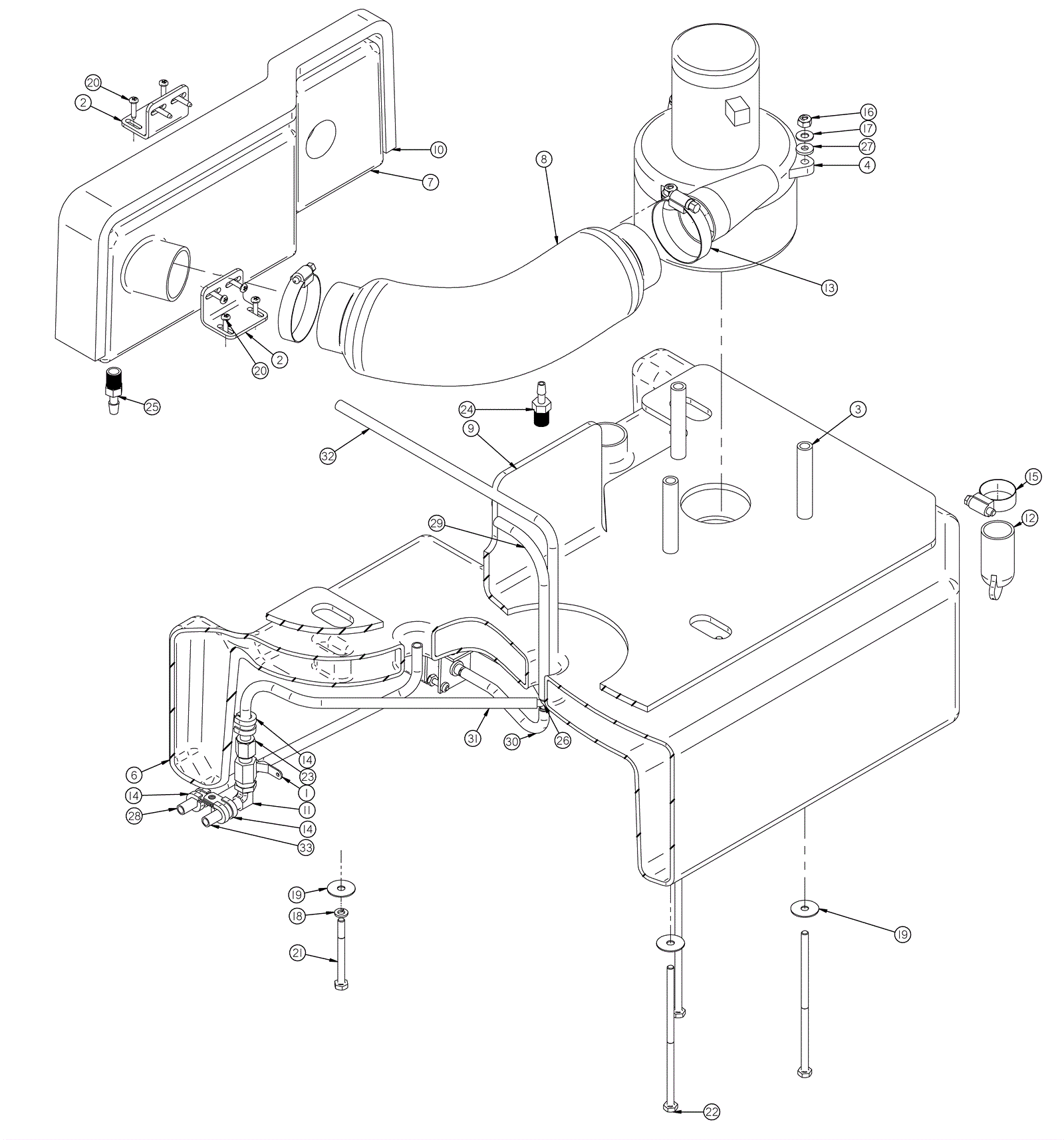

HERO Standard XL Tank - Vacuum Bandeau Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5483 1/4 inch two way ball valve brass $46.60 1 usually ships 1-5 days
2 202-6343 Bracket, Baffle $9.00 2 usually ships 3-11 days
3 202-6395 Spacers,Plastic,3 inch $5.80 3 usually ships 3-11 days
4 202-6421 Motor,Vacuum, 24V, 3 Stage with Connector $240.20 1 usually ships 3-11 days
5 202-3503 24V soap pump $874.00 1 usually ships 1-5 days
6 202-6975 Bandeau, Plastic $134.10 1 usually ships 3-11 days
7 202-6976 Sound Deading Box, Yellow $70.00 1 usually ships 3-11 days
8 202-6394 Muffler, Vac Fan $86.50 1 usually ships 3-11 days
N/A 202-4266 Sound proof barrier $33.40 1 usually ships 3-11 days
11 202-0686 90 degree barb 1/4 x 1/4 $7.80 1 usually ships 1-5 days
12 202-1916 Unloader valve $48.00 1 usually ships 3-11 days
13 997-2011 Hose clamp $2.67 2 ships same day
14 202-9128 Clamp,Loop,1/2 inch,Rubber $5.00 3 usually ships 3-11 days
15 202-2066 Hose clamp $8.80 1 usually ships 3-11 days
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
17 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
18 999-0632 Washer 1/4 split lock stainless steel $0.99 3 ships same day
19 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 6 ships same day
20 999-0870 Screw 8 x 3/4 pan head phillips stainless steel $0.99 8 ships same day
21 202-4235 Aerosol rust stopper 1/4 inch - 20 x 2.75 inch Call for price 3 usually ships 3-11 days
22 202-4236 Areosol rust stopper 1/4 inch - 20 x 6.0 inch (black) $3.50 3 usually ships 3-11 days
23 202-9475 Fitting, 1/4 NPTF x 3/16 Barb $15.00 1 usually ships 3-11 days
24 202-9488 Fitting,1/4 inchNPTx1/8 inchBarb $5.00 1 usually ships 3-11 days
25 202-9489 Fitting,1/4 inchNPTx1/4 inchBarb $5.00 1 usually ships 3-11 days
26 202-9499 Tee, 1/4 inch, Plastic $6.10 1 usually ships 3-11 days
27 202-1986 Washer 3/8 x 1-1/8 x 3/32 neoprene thread $5.00 3 usually ships 3-11 days
28 202-4237 Vacuum drain hose $21.20 1 usually ships 3-11 days
29 202-4238 Hose Call for price 1 usually ships 3-11 days
30 202-4238 Hose Call for price 1 usually ships 3-11 days
31 202-4239 Hose Call for price 1 usually ships 3-11 days
32 202-4240 Hose Call for price 1 usually ships 3-11 days
33 202-4241 Drain hose $7.10 1 usually ships 3-11 days
