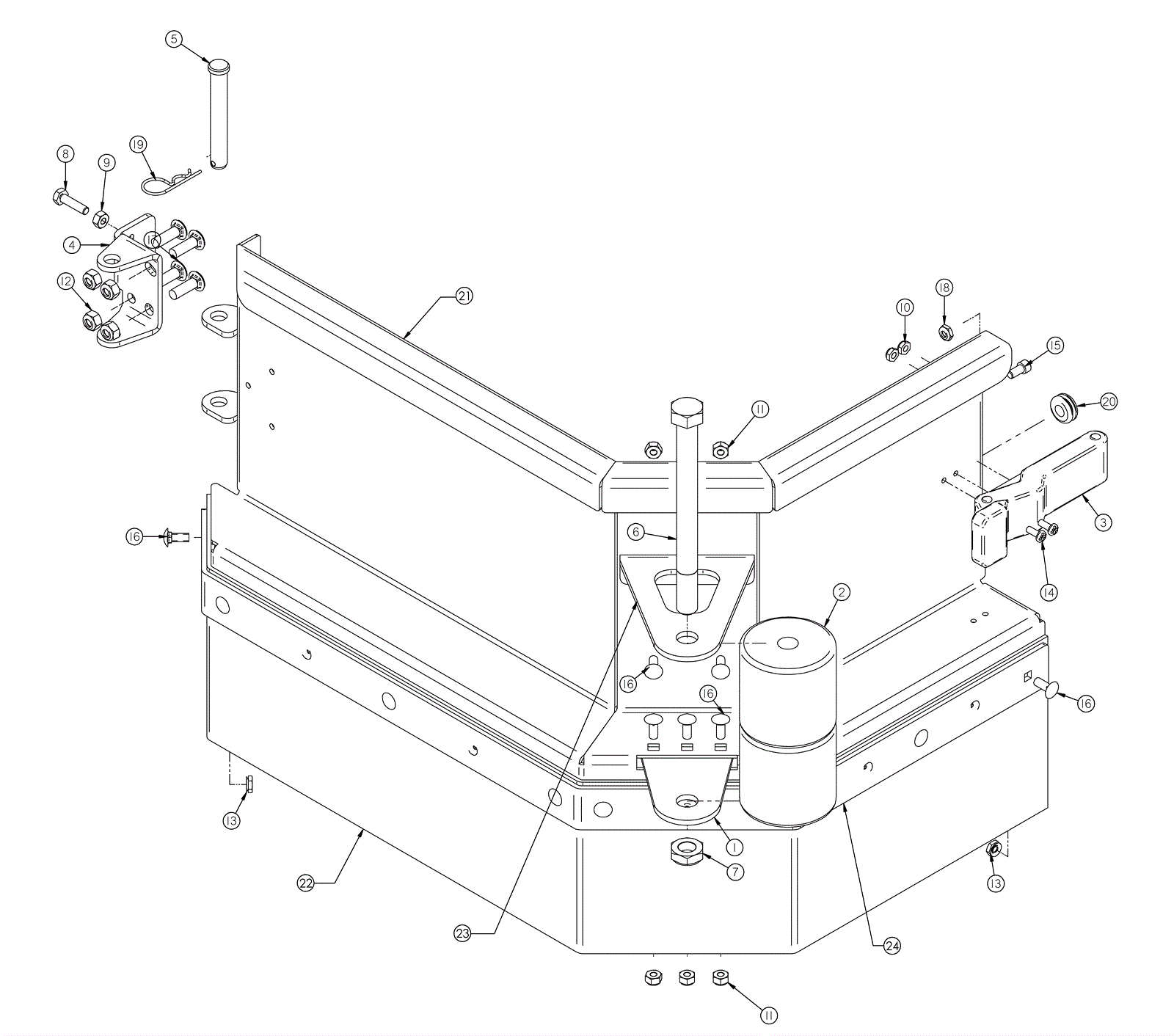

HERO Right Side Jaws Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-6342 Bracket, Roller $16.10 1 usually ships 3-11 days
2 202-0756 Guide roller $25.60 2 usually ships 3-11 days
3 202-5630 Soft draw latch $54.10 1 usually ships 3-11 days
4 202-6983 Hinge, Inner Jaw, RH $33.10 1 usually ships 3-11 days
5 202-3173 Clevis pin $6.10 1 usually ships 1-5 days
6 999-6723 Bolt 5/8-11 x 7 hex head grade 5 zinc plated $11.40 1 ships same day
7 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated $2.27 1 ships same day
8 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 1 ships same day
9 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
10 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
11 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
12 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
13 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 9 ships same day
14 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 2 ships same day
15 202-3157 Screw 1/4 x 1/4 inch socket head stainless steel $5.00 1 usually ships 3-11 days
16 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.00 14 usually ships 3-11 days
17 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel $1.34 4 ships same day
18 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 1 ships same day
19 202-3129 Cotter pin $5.00 1 usually ships 3-11 days
20 202-3348 Rubber grommet $4.00 1 usually ships 3-11 days
21a 202-7002 Jaw, RH, 30 inch $403.00 1 usually ships 3-11 days
21b 202-7010 Jaw, RH, 34 inch $404.90 1 usually ships 3-11 days
22a 202-7008 Curtain, Jaw, 30 inch $70.20 1 usually ships 3-11 days
22b 202-7012 Curtain, Jaw, 34 inch $80.80 1 usually ships 3-11 days
23a 202-6990 Bracket, Roller, Jaw, 30 inch $23.20 1 usually ships 3-11 days
23b 202-6992 Bracket, Roller, Jaw, 34 inch $35.00 1 usually ships 3-11 days
24a 202-7009 Band, Jaw, 30 inch $86.00 1 usually ships 3-11 days
24b 202-7013 Band, Jaw, 34 inch $85.70 usually ships 3-11 days
