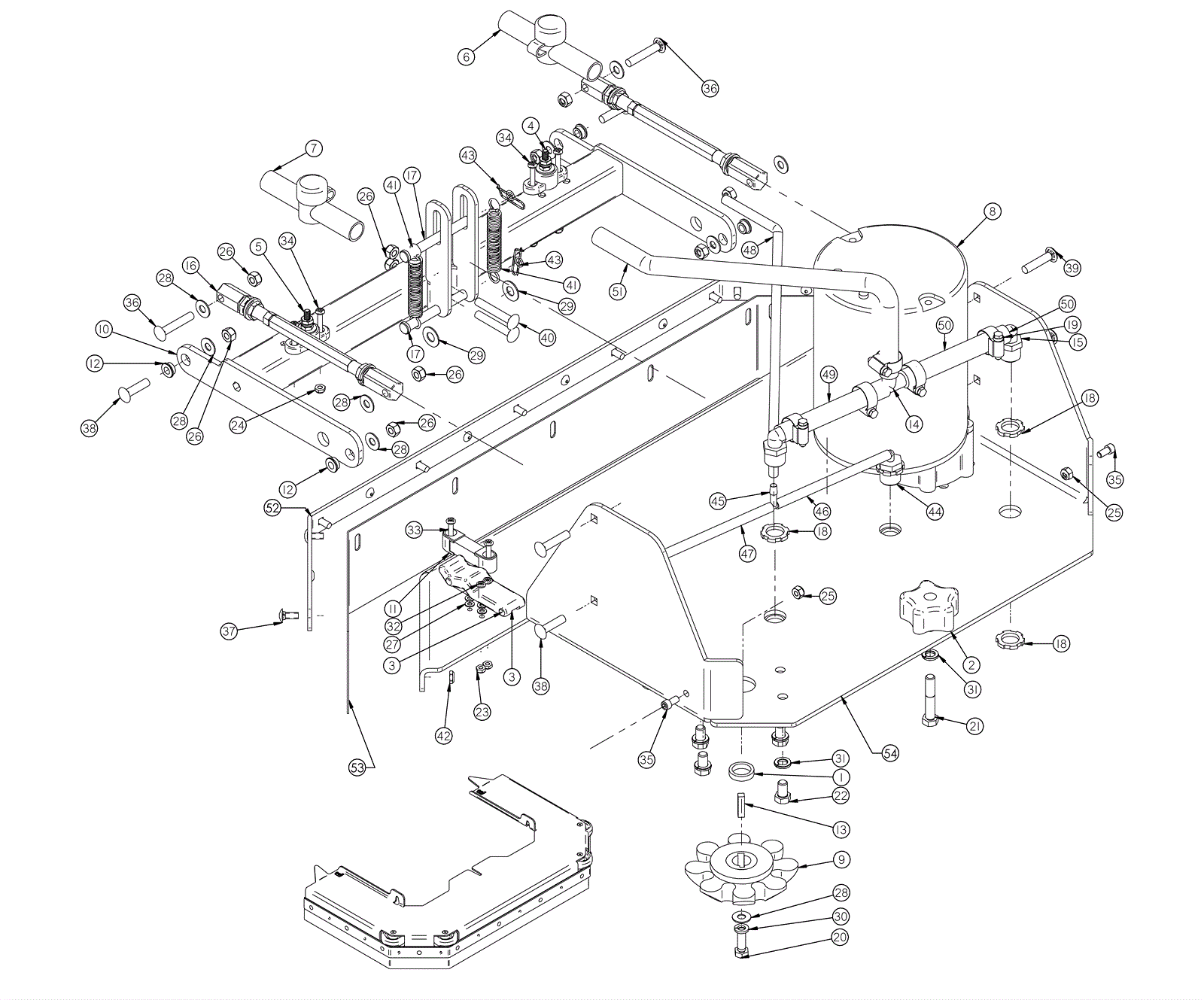

HERO 30 Inch - 34 Inch Disk Decks for Shrouds Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-6063 Spacer. Driver $21.50 4 usually ships 3-10 days
2 202-5078 Star knob $14.63 1 usually ships 3-10 days
3 202-1487 Latch $25.19 2 usually ships 3-10 days
4 202-6396 Power Post, Black, 1/4 Terminal $7.80 1 usually ships 3-10 days
5 202-6397 Power Post, Red, 1/4 Terminal $8.10 1 usually ships 3-10 days
6 202-6400 Terminal Insulator, Black $9.80 1 usually ships 3-10 days
7 202-6401 Terminal Insulator, Red $9.80 1 usually ships 3-10 days
9 202-7038 Driver, Brush, Rounded Tooth, Aluminum w/ Insert, Hard coate $136.90 2 usually ships 3-10 days
10 202-7092 Arm, Lateral, Disk/Edge $156.50 1 usually ships 3-10 days
11 202-5098 2 inch bolt on level $26.34 2 ships same day
12 202-7656 Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S $11.70 4 usually ships 3-10 days
13 202-0331 Brush driver key (pkg of 2) $9.90 2 ships same day
14 202-0332 1/2 inch barbed tee $5.00 1 ships same day
15 202-0333 Elbow barb $5.00 2 ships same day
16 202-5805 Body, Adjustable Lateral Arm $48.00 2 usually ships 3-10 days
17 999-1633 Clevis pin 3/8 x 3 1/2 $3.92 2 ships same day
18 999-0330 Nut 1/2-13 acorn brass $5.20 8 ships same day
19 202-0680 Hose clamp $5.50 5 usually ships 3-10 days
20 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
21 202-2211 Screw 3/8-16 x 2 hex cap stainless steel $5.00 1 usually ships 1-5 days
22 999-1856 Screw 3/8-24 x 5/8 hex cap stainless steel $1.91 8 usually ships 14-31 days
23 999-0357 Nut 8-32 nylon insert lock stainless steel $0.90 4 ships same day
24 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 8 ships same day
25 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
26 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 10 ships same day
27 999-0266 Washer #8 SAE flat stainless steel $0.99 12 ships same day
28 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
29 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
30 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
31 999-0659 Washer 3/8 medium split lock stainless steel $0.35 9 ships same day
32 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 4 ships same day
33 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.90 4 ships same day
34 999-1818 Screw 10-32 x 2 pan head phillips stainless steel $1.80 4 ships same day
35 202-3157 Screw 1/4 x 1/4 inch socket head stainless steel $5.00 2 usually ships 3-10 days
36 202-3077 Carriage bolt 5/16 x 1-1/2 stainless steel $5.50 2 usually ships 3-10 days
37 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.00 9 usually ships 3-10 days
38 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.26 4 ships same day
39 999-1370 Bolt 5/16-18 x 1 1/2 carriage head stainless steel $0.90 2 usually ships 1-5 days
40 202-2100 Bolt 5/16-18 x 2 carriage head $5.50 2 ships same day
41 202-2208 Compression spring $5.80 2 ships same day
42 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 9 ships same day
43 202-2036 Cotter pin $5.00 2 usually ships 3-10 days
44 202-4217 Barb elbow 1/2 x 1/4 inch $5.00 2 usually ships 3-10 days
45 202-9499 Tee, 1/4 inch, Plastic $6.10 1 usually ships 3-10 days
46 202-4254 Hose Call for price 1 usually ships 3-10 days
47 202-4254 Hose Call for price 1 usually ships 3-10 days
48 202-4255 Hose Call for price 1 usually ships 3-10 days
49 202-4256 Solution hose Call for price 1 usually ships 3-10 days
50 202-4256 Solution hose Call for price 1 usually ships 3-10 days
51 202-5536 Hose (OBSOLETE) $15.70 1 usually ships 1-5 days
52a 202-6960 Band, Rear Curtain, 30 inch $74.20 1 usually ships 3-10 days
52b 202-6961 Band, Rear Curtain, 34 inch $62.20 1 usually ships 3-10 days
53a 202-6957 Curtain, Rear Deck, 30 inch $39.60 1 usually ships 3-10 days
53b 202-6958 Curtain, Rear Deck, 34 inch $39.40 1 usually ships 3-10 days
54a 202-6943 Deck, Scrub, Disk, 30 inch, Alum $324.40 1 usually ships 3-10 days
54b 202-6947 Deck, Scrub, Disk, 34 inch, Alum $393.70 1 usually ships 3-10 days
